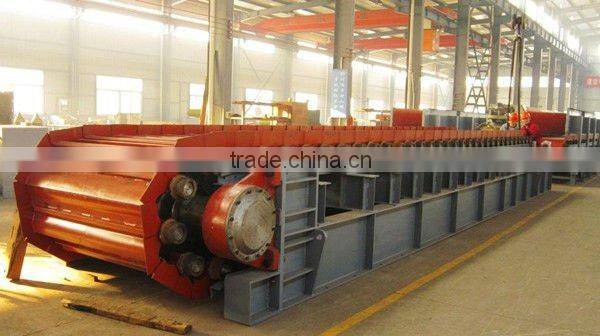

BW Series Apron Feeder for Indonesia

Specifications

1.BW Series Apron Feeder;
2.High efficiency feeding machine;
3.High strength pans resist abrasion;
4.Easy maintenance.

BW Series Apron Feeder for Indonesia



Introduction of BW Series Apron Feeder for Indonesia:

DSMAC Apron Feeders are engineered for heavy-duty operation and for primary or subsequent application stages. These custom-built machines are designed to suit individual requirements of capacity, size and material handled. Our apron feeder also has an integral matching scraper conveyor with built-in drive to handle spillage. This system ensures an economic layout and increased belt conveyor length vis-à-vis a conventional system with spillage chute. The feeders are specially designed to minimize maintenance.



Features of BW Series Apron Feeder for Indonesia:

Impact loads are absorbed by pans of rolled alloy/ cast alloy/ manganese steel material depending on application and are similar to heavy-duty track-type undercarriage shoes.
2. Pans are bolted to forged link chains supported on heavy-duty lifetime lubricated rollers.
3. High strength pans resist abrasion and withstand heavy impact loads.
4. Short pitch and precision-machined chain provides noise-free discharge of material with negligible impact on receiver.
5. Chain and roller flanges maintain rigid alignment of pans in relation to skirt.



Application of BW Series Apron Feeder for Indonesia :

Apron feeder is available in hot and humid and harsh environments work. It is widely used in the cement plant for continuously and evenly feeding cement materials. Compared with conventional feeding system, apron feeder ensures an economic layout and increased belt conveyor length. The feeders are specially designed to minimize maintenance.



Technical Parameter of BW Series Apron Feeder for Indonesia :





Model	Slot Width (mm)	Feeding Size (mm)	Capacity (t/h)	Power (kw)
BW1000	1000	≤500	60~160	11~15
BW1200	1200	≤600	100~200	11~30
BW1250	1250	≤800	100~250	11~18.5
BW1500	1500	≤800	300~460	15~45
BW1800	1800	≤800	400-680	37~55
BW2200	2200	≤1200	550-940	45
BW2400	2400	≤1500	600-1100	45
