DSMAC Vibrating Screen (YK Series)

YK Circular Vibrating Screen Introduction

The vibrating screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. It is manufactured with long material screen rifling and many screen specifications.

YK Circular Vibrating Screen Features

1.Ring groove rivet connection, advanced structure and excellent durability.

2.Designed with a simple structure, with eccentric block as excitation, strong vibrating force, low electricity consumption and low noise.

3.Uses small amplitude, high frequency and big angle structure which enables it to have high screening efficiency and great handling capacity.

4.Uses large clearance bearings and is lubricated with thin oil. It causes little noise and has a long service life.

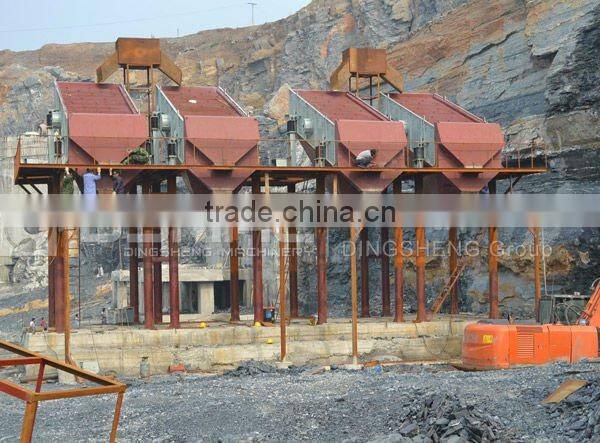

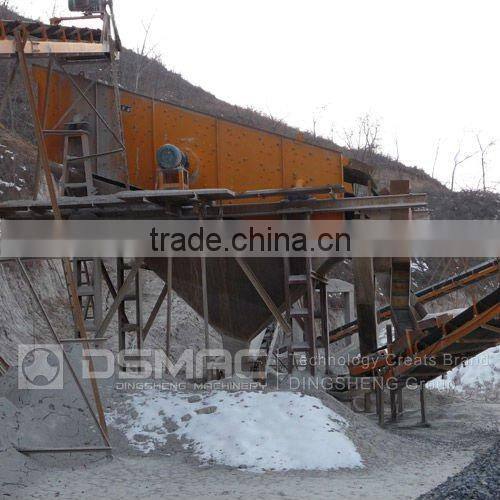

YK Circular Vibrating Screen Application

It is widely used for grading and screening materials in the following fields: mines, quarries, aggregate, high-way construction, building materials, chemical industry, metallurgy and so on.

Payment & shipping terms

1.Price:FOB USD 5000-99999/Set(negotiation)

2.Minimum Order Quanlit(MOQ):1 Set

3.Port:Shanghai;tianjin;qingdao

4.Packaging Details:Standard Container, Nude Packs or in Bulk.

5.Delivery Time:15-30 days

6.Payment Terms:L/C,T/T

7.Supply Ability:100 Set/Sets per Month

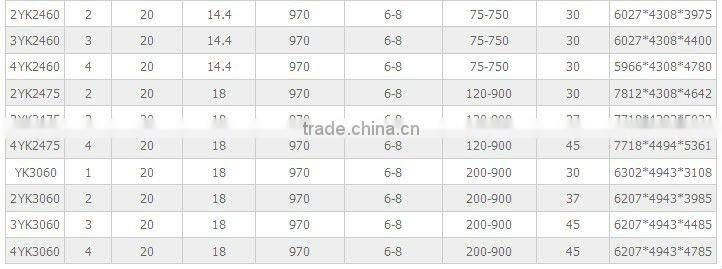

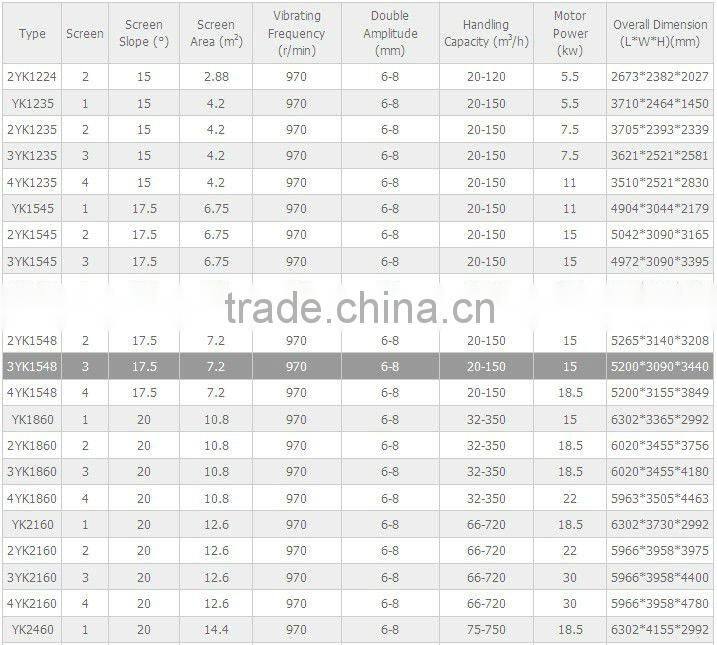

YK Circular Vibrating Screen Specification
