ZK Series Linear Vibrating Sieve (From DSMAC)

ZK Series Linear Vibrating Sieve (From DSMAC) thumbnail-1
ZK Series Linear Vibrating Sieve (From DSMAC) photo-1
US$ 1,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, Ore, Mining, Metallurgy, Quarry
Contact Supplier Request Quote Chat Now
Zhengzhou Dingsheng Engineering Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Other, Ore, Mining, Metallurgy, Quarry
Place of Origin Henan, China
Brand Name DSMAC
Model Number ZK
Power(W) 7.5-30KW
Dimension(L*W*H) Largest: 6388*3153*3033
Weight 5-16T
Certification ISO9001:2008 Certified & SGS, ISO9001:2008&SGS

Specifications

DSMAC vibrating sieve
1.ISO9001:2008 Certified & SGS;
2.Capacity:20-170t/h
3.Max feeding size:300mm
4.Delivery: 15-25 days

ZK Series Linear Vibrating Sieve (From DSMAC)







ZK vibrating sieve  Introduction & Application

The linear vibrating screen is a new kind of high efficiency screening equipment which vibrates with a vibration motor. The linear vibrating screen has been widely used in the industries of plastic, grinding material, chemical engineering, medicine, building materials, grain, carbon, chemical fertilizer, fire-resistant materials, mine, coal, metallurgy, etc. and for screening and grading powdery and granular materials.



ZK vibrating sieve   Features

Uses eccentric block as excitation force which is quite strong.

Low consumption, little noise and long screen service life.

High screening precision, adjustable granularity, great handling capacity, high screening efficiency and long service life.

Totally-closed structure and automatic material discharging make it more suitable for assembly line work.



vibrating sieve  Payment & shipping terms

1.Price:FOB USD 5000-99999/Set(negotiation)

2.Minimum Order Quanlit(MOQ):1 Set

3.Port:Shanghai;tianjin;qingdao

4.Packaging Details:Standard Container, Nude Packs or in Bulk.

5.Delivery Time:15-30 days

6.Payment Terms:L/C,T/T

7.Supply Ability:100 Set/Sets per Month



ZK vibrating sieve  Specification





Type and spec Screen deck Mesh size(mm) Sieve surface area(m2) Feeding granularity Power/speed Capacity(t/h) Weight(t) Dimension(L*M*H)(mm)
ZZS936 0.5-13 3 <100 7.5 20-35 5 3936*1628*2049
2ZZS936 3-80 3 <300 7.5 20-35 5.5 3396*1628*2597
0.5-13
ZZS1236 .05-13 4 <100 7.5 30-50 5 3936*1933*1930
2ZZS1236 3-80 4 <300 7.5 30-50 6 1936*1933*2510
0.5-13
ZZS1248 0.5-13 5.8 <300 7.5 33-53 5.8 5413*1933*2057
2ZZS1248 3-80 5.8 <300 11 33-53 7.5 5413*1933*2600
0.5-13
ZZS1536 3-80 5.4 <300 7.5 33-55 5.5 3936*2238*1917
0.5-13
2ZZS1536 0.5-13 5.4 <300 11 33-55 7.5 3936*2238*2609
2ZZS1542 3-80 6 <300 11 40-55 7.4 4546*2238*2617
0.5-13
ZZS1548 0.5-13 7 <300 11 42-70 7 5156*2238*2089
2ZZS1548 3-80 7 <300 11 42-70 8.2 5156*2238*2611
0.5-13
ZZS1836 3-80 6.5 <300 7.5 45-85 6.1 3936*2543*1942
0.5-13
2ZZS1836 3-80 6.5 <300 11 45-85 7.8 3936*2543*2634
0.5-13
2ZZS1842 3-80 7.6 <300 11 50-90 9 4546*2543*2634
0.5-13
ZZS1848 0.5-13 8.5 <300 11 60-100 7.1 5156*2543*2137
2ZZS1848 3-80 8.5 <300 15 60-100 10.2 5156*2543*2668
0.5-13
ZZS2148 0.5-13 10 <300 11 70-110 9 5156*2848*3033
2ZZS2148 3-80 10 <300 22 70-110 15 6388*2848*3222
0.5-13
2ZZS2160 3-80 13 <300 30 90-150 14 6388*2848*2478
0.5-13
ZZS2160 0.5-13 13 <300 22 90-150 11 5456*3153*2335
ZZS2448 0.5-13 12 <300 15 80-125 9.6 5193*3153*2335
2ZZS2448 3-80 12 <300 22 80-125 14 5168*3153*3033
0.5-13
ZZS2460 0.5-13 14 <300 22 95-170 14 6376*3153*2386
2ZZS2460 3-80 14 <300 30 95-170 16 6388*3153*3033
0.5-13

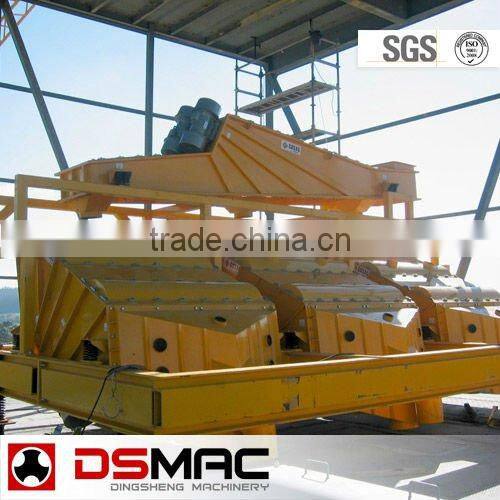

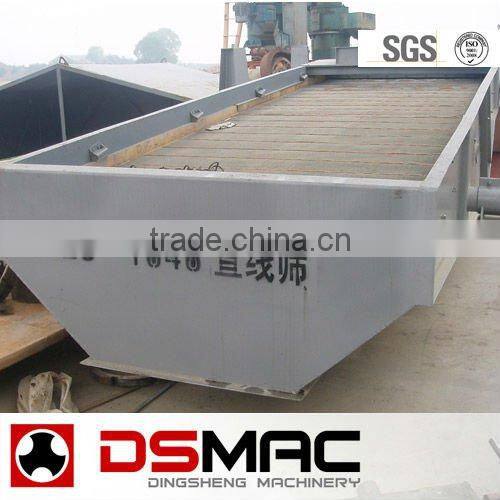

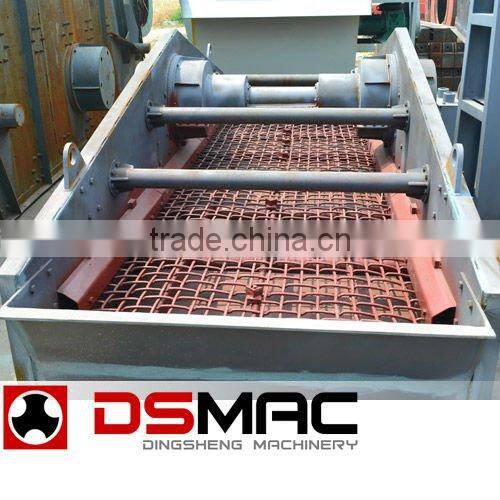

  ZK vibrating sieve pictures

ZK Series Linear Vibrating Sieve (From DSMAC)



ZK Series Linear Vibrating Sieve (From DSMAC)



ZK Series Linear Vibrating Sieve (From DSMAC)





ZK Series Linear Vibrating Sieve (From DSMAC)



ZK Series Linear Vibrating Sieve (From DSMAC)



ZK Series Linear Vibrating Sieve (From DSMAC)
