Specifications

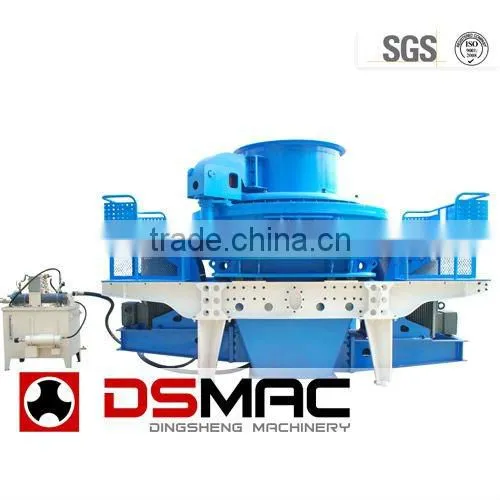

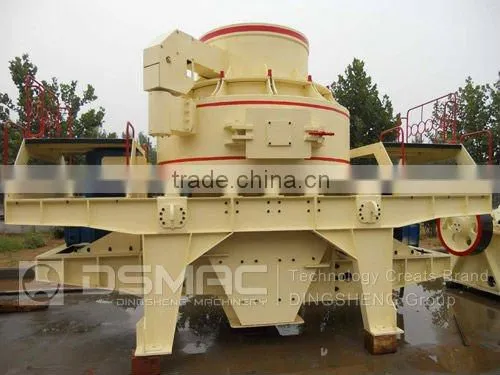

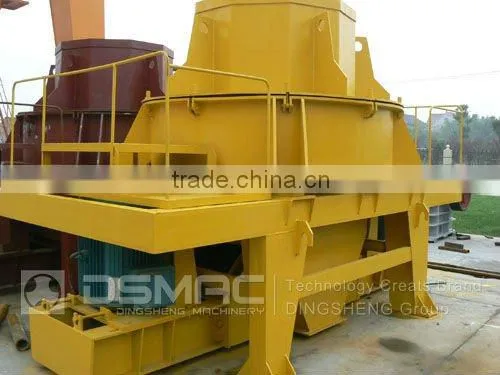

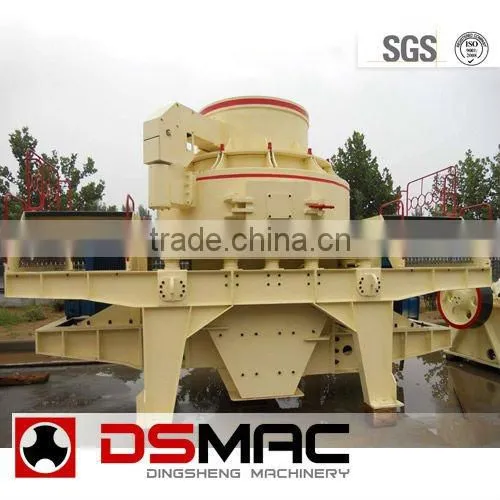

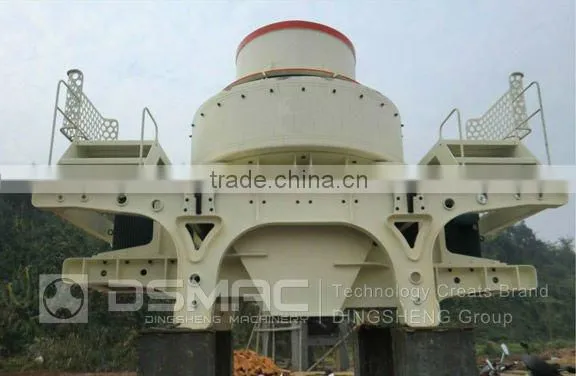

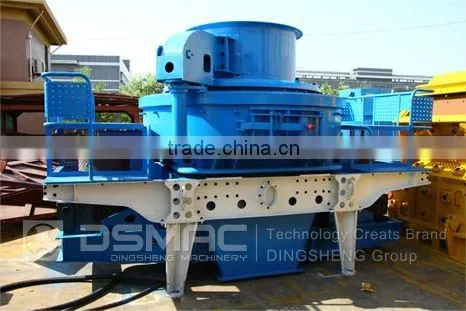

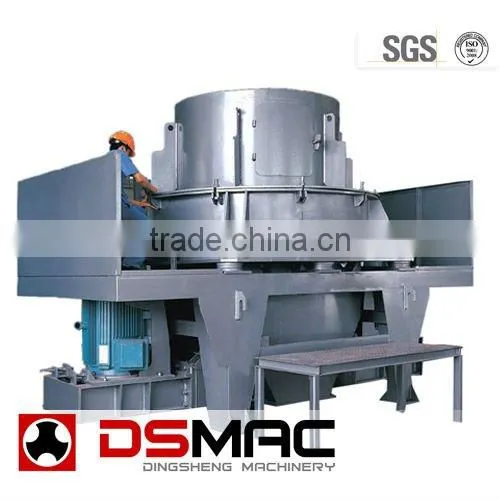

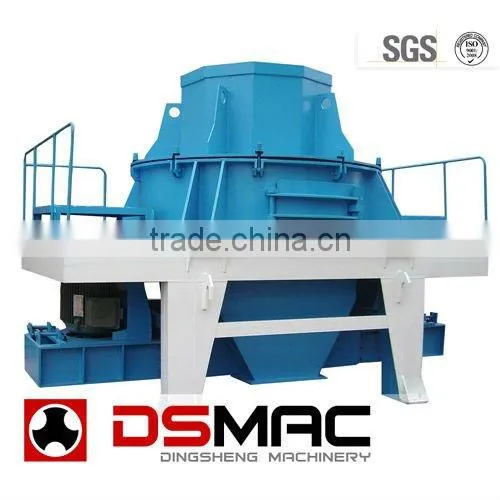

PCX Series hot sand maker(DSMAC)1.ISO9001:2008 certified & SGS
2.Top10 of Chinese Branded Crushers
3.Good Services

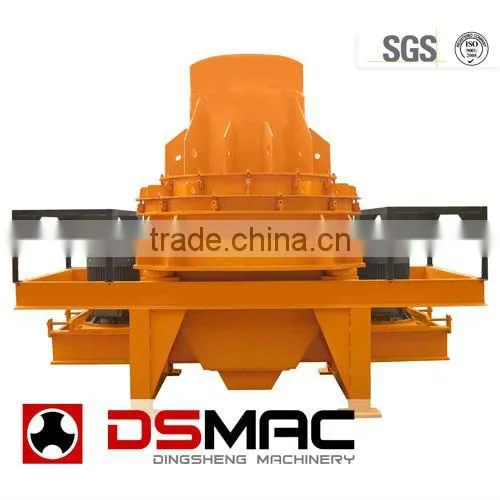

PCX hot sand maker Introduction
The DSMAC PCX series VSI is unique due to its crushing process. Whereas most other types of crusher use metallic parts to crush rock, the VSI uses the rock fed into the machine to crush itself. This autogenous crushing process produces the best-shaped aggregate on the market today.
Application of PCX hot sand maker
1.Cover some special secondary applications but especially tertiary and quaternary applications.
2.Construction, industrial minerals, metallic minerals and waste and recycling applications.
3.Quality aggregates, sand, material for heap leaching, pre-grinding and finished industrial minerals products.
Feature of PCX hot sand maker
1.Lower wear costs per tonne. In some cases average wear part lives have increased by 50%. This means less maintenance time and higher crusher availability.
2.Highest flakiness/shape index of aggregates produced.
3.Crushing ratio easy adjustable as per rotation speed modification (the machine can be quickly tuned to face process needs).
4.Easy Maintenance.
5.High capacity (up to 500 tph). A denser particle population in the chamber will give more effective reduction and improved shape.
6.Possibility to re-crush unsold small materials (2-6 mm ; 4-8 mm,…) and single fraction round materials (16-32mm,…).
Payment & shipping terms:
1.Price:FOB USD 5000-99999/Set(negotiation)
2.Minimum Order Quanlit(MOQ):1 Set
3.Port:Shanghai;tianjin;qingdao
4.Packaging Details:Standard Container, Nude Packs or in Bulk.
5.Delivery Time:15-30 days
6.Payment Terms:L/C,T/T
7.Supply Ability:100 Set/Sets per Month
Sand Maker Specification
Type |
Max feed (mm) |
Power (kw) |
Impeller Speed (r/min) |
Production Capacity(t/h) |
Dimension(mm) |
PCX-600 |
35 |
22~55 |
2000~3000 |
12~30(-0.8mm30%)(-0.8mm60~90%) |
2500*1600*2260 |
PCX-850 |
50 |
90~180 |
1200~2000 |
55~100(-0.8mm30%)(-0.8mm60~90%) |
3900*2160*2770 |
PCX-1050 |
55 |
150~264 |
1000~1700 |
100~160(-0.8mm30%)(-0.8mm60~90%) |
4660*2450*3660 |
PCX-1280 |
60 |
264~440 |
850~1450 |
160~300(-0.8mm30%)(-0.8mm60~90%) |
5600*2950*4000 |
PCX-1400 |
80 |
400~500 |
800~1193 |
200~400(-0.8mm30%)(-0.8mm60~90%) |
5340*2940*3650 |
If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials,feeding size, you required output size,capacity and other special requirement.Our engineer will choose the optimum type and our saleman will send you the resonable price.
