Small Mobile Stone Crusher With Perfect Performance From Top 10 China Brand manufacture
- 64 Set / Sets per Month
- Tianjin/Shanghai/Qingdao
- T/T
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Mobile Crushing Plant | Application: | Mining, building materials, highway, water conservancy, construction w, road & bridge construction, metallurgy,metallurgy, chemistry |
Capacity(t/h): | 10-240 | Place of Origin: | Henan, China | Brand Name: | DSMAC |
Model Number: | Mobile Crusher | Dimension(L*W*H): | According to the capacity | Weight: | According to the capacity |
Certification: | ISO9001:2008& SGS, ISO9001:2008& SGS | Warranty: | For whole using life, 1 year |
Product Description
Specifications
DSMAC Small Mobile Stone Crusher;1.ISO9001:2008 certified&SGS
2.Capacity:10-240t/h
3.Max feeding size:650mm

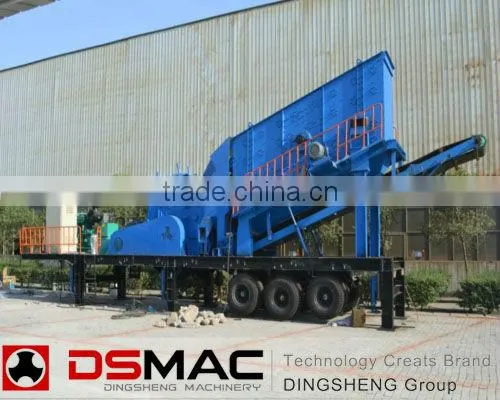

Small Mobile Stone Crusher With Perfect Performance From Top 10 China Brand manufacture
DMP series Small Mobile Stone Crusher for sale puts crushing and screening process on wheels. By combining feeding, crushing and screening equipment together with belt conveyor, This plant is widely used in mine, building material, highway, rail way and hydropower industries, etc. The crushing and screening processes can be finished at one time to produce the required size and capacity.
Application of Small Mobile Stone Crusher :
1.Demolition and recycling
2.Quarrying and surface mining
3.Road construction
4.Civil engineering contractors
5.Aggregate production
6.Open cast coal mining
DMP Series Small Mobile Stone Crusher is Ideal for:
1.Demolition and recycling
2.Quarrying and surface mining
3.Road construction
4.Civil engineering contractors
5.Aggregate production
6.Open cast coal mining
Main Customer Benefits of DMP Series Small Mobile Stone Crusher
1.High crushing speed, together with large feed opening, provides impressive rates of production, yet able to provide superb reduction ratios
2.Hydraulically adjustable CSS for a variety of applications
3.Reverse crushing action to relieve blockages and automatic central lubrication system to increase machine up-time
4.Hydraulic legs for increased stability and servicing capabilities
5.Global aftermarket support, with standard stock parts to ensure minimum loss of production
6.Machine designed for optimum fuel economy and low operating costs.
Feeding Materials of Small Mobile Stone Crusher :
Basalt, Granite, Aggregate , Limestone, Concrete
Small Mobile Stone Crusher Payment & shipping terms:
1.Price:FOB USD 5000-99999/Set(negotiation)
2.Minimum Order Quanlit(MOQ):1 Set
3.Port:Shanghai;tianjin;qingdao
4.Packaging Details:Standard Container, Nude Packs or in Bulk.
5.Delivery Time:15-30 days
6.Payment Terms:L/C,T/T
7.Supply Ability:100 Set/Sets per Month
Specification of DMP Series Small Mobile Stone Crusher - mobile Jaw Crusher Plant
DMP JAW PLANTS | DMP600 | DMP750 | DMP900 | DMP1060 | DMP1200 | |
transport dimension | Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 |
Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | |
Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | |
Weight(kg) | 15240 | 22000 | 32270 | 57880 | 98000 | |
Axle weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | |
King pin weight(kg) | 5110 | 7500 | 10890 | 19450 | 34000 | |
Jaw crusher | Model | PE400*600 | PE500*750 | PE600*900 | PE750*1060 | PE900*1200 |
Feed opening(mm) | 400*600 | 500*750 | 600*900 | 75*1060 | 90*1200 | |
Setting range(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | |
Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | |
Feeder | Model | GZT0724 | GZT0724 | GZT0932Y | ZSW200 | ZSW300 |
Feed hopper volume(m3) | 3 | 4 | 7 | 10 | 10 | |
Hopper width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | |
Belt conveyor | Model | B650*6 | B800*7 | B1000*8 | B1000*11 | B1200*13 |
Small Mobile Stone Crusher - Mobile jaw crushing plant

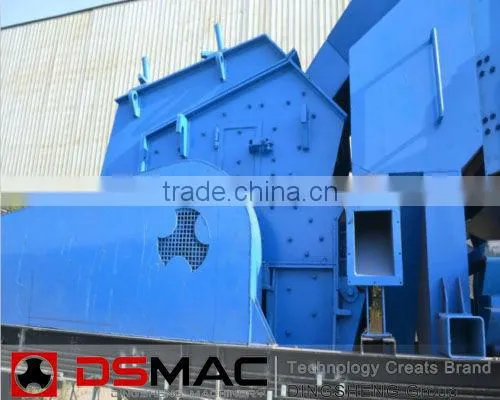

Small Mobile Stone Crusher - mobile impact crushing plant
Small Mobile Stone Crusher - mobile cone crushing plant
Small Mobile Stone Crusher - mobile vsi crushing plant
Small Mobile Stone Crusher - Portable Crawler Crusher
Small Mobile Stone Crusher - Real customer case
