Specifications
DSMAC Mobile Jaw Crusher Plant;1.ISO9001:2008 certified&SGS
2.Capacity:10-240t/h
3.Max feeding size:650mm

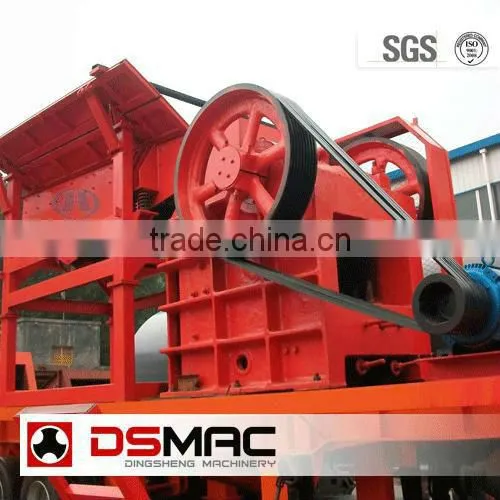

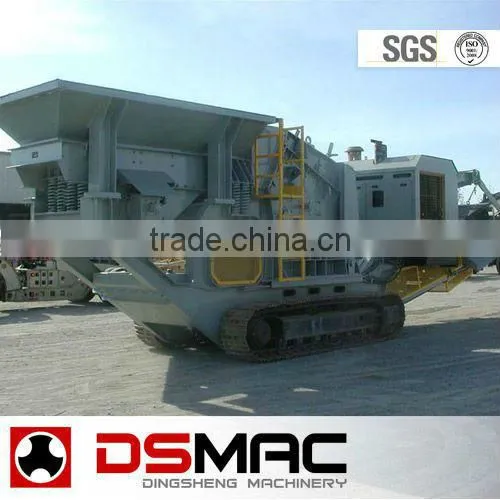

Mobile Jaw Crusher Plant With Perfect Performance From Top 10 China Brand manufacture
DMP series Mobile Jaw Crusher Plant puts crushing and screening process on wheels. By combining feeding, crushing and screening equipment together with belt conveyor, This plant is widely used in mine, building material, highway, rail way and hydropower industries, etc. The crushing and screening processes can be finished at one time to produce the required size and capacity.
Application of Mobile Jaw Crusher Plant :
1.Demolition and recycling
2.Quarrying and surface mining
3.Road construction
4.Civil engineering contractors
5.Aggregate production
6.Open cast coal mining
DMP Series Mobile Jaw Crusher Plant is Ideal for:
1.Demolition and recycling
2.Quarrying and surface mining
3.Road construction
4.Civil engineering contractors
5.Aggregate production
6.Open cast coal mining
Main Customer Benefits of DMP Series Mobile Jaw Crusher Plant
1.High crushing speed, together with large feed opening, provides impressive rates of production, yet able to provide superb reduction ratios
2.Hydraulically adjustable CSS for a variety of applications
3.Reverse crushing action to relieve blockages and automatic central lubrication system to increase machine up-time
4.Hydraulic legs for increased stability and servicing capabilities
5.Global aftermarket support, with standard stock parts to ensure minimum loss of production
6.Machine designed for optimum fuel economy and low operating costs.
Feeding Materials of Mobile Jaw Crusher Plant:
Basalt, Granite, Aggregate , Limestone, Concrete
Mobile Jaw Crusher Plant Payment & shipping terms:
1.Price:FOB USD 5000-99999/Set(negotiation)
2.Minimum Order Quanlit(MOQ):1 Set
3.Port:Shanghai;tianjin;qingdao
4.Packaging Details:Standard Container, Nude Packs or in Bulk.
5.Delivery Time:15-30 days
6.Payment Terms:L/C,T/T
7.Supply Ability:100 Set/Sets per Month
Specification of DMP Series Mobile Jaw Crusher Plant - mobile Jaw Crusher Plant
DMP JAW PLANTS |
DMP600 |
DMP750 |
DMP900 |
DMP1060 |
DMP1200 |
|
transport dimension |
Length(mm) |
8600 |
9600 |
11097 |
13300 |
15800 |
Width(mm) |
2520 |
2520 |
3759 |
2900 |
2900 |
|
Height(mm) |
3770 |
3500 |
3500 |
4440 |
4500 |
|
Weight(kg) |
15240 |
22000 |
32270 |
57880 |
98000 |
|
Axle weight(kg) |
10121 |
14500 |
21380 |
38430 |
64000 |
|
King pin weight(kg) |
5110 |
7500 |
10890 |
19450 |
34000 |
|
Jaw crusher |
Model |
PE400*600 |
PE500*750 |
PE600*900 |
PE750*1060 |
PE900*1200 |
Feed opening(mm) |
400*600 |
500*750 |
600*900 |
75*1060 |
90*1200 |
|
Setting range(mm) |
40-100 |
50-100 |
65-180 |
80-180 |
95-225 |
|
Capacity(m3/h) |
10-35 |
25-60 |
30-85 |
70-150 |
100-240 |
|
Feeder |
Model |
GZT0724 |
GZT0724 |
GZT0932Y |
ZSW200 |
ZSW300 |
Feed hopper volume(m3) |
3 |
4 |
7 |
10 |
10 |
|
Hopper width(mm) |
2200 |
2500 |
3000 |
3000 |
3000 |
|
Belt conveyor |
Model |
B650*6 |
B800*7 |
B1000*8 |
B1000*11 |
B1200*13 |
Mobile Jaw Crusher Plant - Mobile jaw crushing plant
mobile rock crusher - mobile impact crushing plant
mobile rock crusher - mobile cone crushing plant
mobile rock crusher - mobile vsi crushing plant
mobile rock crusher - Portable Crawler Crusher

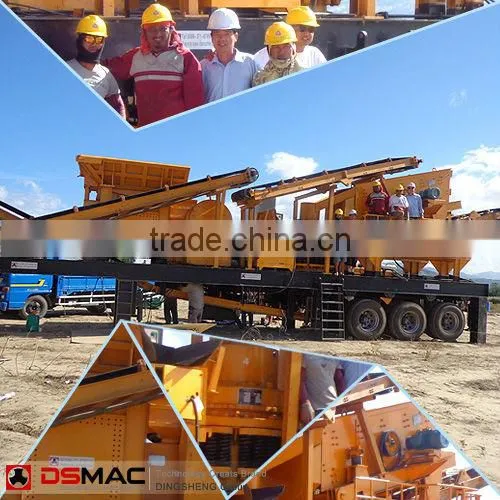

mobile rock crusher - Real customer case
