Specifications
DSMAC aggregate production1.High effiency
2.Capacity:35-725t/h
3.Max feeding size:220mm
4.ISO9001:2008&SGS
DSMAC aggregate production line with high efficiency from OEM Top10 Chinese brands
The hydraulic cone crusher are characterized by robust design and high performance. A combination of Constant Liner Performance crushing chambers and high motor power give these crushers very high capacity. the PYG Series hydraulic cone crusher combines the highest crushing efficiency and end product quality with the lowest per ton production costs.
1.Raw materials:Iron ore, cooper, steel slag, slag, river stone, granite, basalt, quartz stone, diabase
2.Capacity:35-725t/h
3.Max feeding size:220mm
4.Application: metal mine, quarry, concrete batching station and glass industry
5.Shipping ports: Shanghai, Qingdao or Tianjin
6.Delivery: 15-30 days
aggregate production line is ideal for
1.Aggregates production and mines;
2.Secondary, tertiary and fine crushing stages;
3.Stationary and mobile applications.
High Performance & Low Operating Cost of aggregate production line
The choke feed arrangement is set by simply choosing the correct stroke for the PYG cone crusher – the most efficient crushing action is easily achieved. use of high quality components with optimized wear parts keep operating costs down. The DSMAC PYG cone crusher is the right machine to maximize your profitability.
Easy Adjustment for Production Requirement of aggregate production line
Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by the selection of crushing chamber and eccentric throw. The chambers available are:
EF = Extra fine F = Fine
MF = Medium fine M = Medium
C = Coarse EC = Extra coarse
aggregate production line - Total Control of Crusher and Process
The automation unit guarantees constant choke feeding. It also improves the liner utilization rate and thus the end product quality by promoting inter-particle crushing. The automation system keeps crushing at maximum operational limits and within safety margins.
Little Dust and Low Noise Level of aggregate production line
Equipped with dust-cleaning apparatus water tank, in order to reduce the noise, damping layer is filled in the interlayer between the upper body and the lower body, which combines to create a safer and cleaner working environment.
aggregate production line specification - Hydraulic Cone Crusher
| Type | Model | Chamber Type | Diameter of Large End of Crushing Cone (mm) | Adjustable Range of Discharge Opening (mm) | Max Feed Size | Capacity (t/h) | Motor Power (kw) | Weight (kg) | Dimension (L×W×H)(mm) |
| 900 | PYGB-0913 | Standard fine type | 950 | 14-38 | 110 | 130-250 | 160 | 17000 | 2007×2225×1950 |
| PYGB-0916 | Standard medium type | 18-38 | 132 | 145-250 | |||||
| PYGB-0921 | Standard coarse type | 22-38 | 178 | 155-250 | |||||
| PYGD-0907 | Short coarse type | 8-25 | 60 | 80-220 | |||||
| PYGD-0909 | Short head medium type | 10-25 | 76 | 90-220 | |||||
| PYGD-0912 | Short head coarse type | 12-25 | 100 | 120-220 | |||||
| 1100 | PYGB-1114 | Standard fine type | 1100 | 16-45 | 115 | 180-445 | 220 | 18500 | 2520×2620×2400 |
| PYGB-1121 | Standard medium type | 20-45 | 180 | 200-445 | |||||
| PYGB-1124 | Standard coarse type | 26-45 | 200 | 230-445 | |||||
| PYGD-1107 | Short coarse type | 8-25 | 60 | 120-220 | |||||
| PYGD-1110 | Short head medium type | 12-25 | 82 | 120-220 | |||||
| PYGD-1112 | Short head coarse type | 14-25 | 105 | 120-220 | |||||
| 1400 | PYGB-1415 | Standard fine type | 1400 | 16-50 | 130 | 225-620 | 315 | 29700 | 3106×3170×2945 |
| PYGB-1420 | Standard medium type | 22-50 | 170 | 270-620 | |||||
| PYGB-1433 | Standard coarse type | 26-50 | 280 | 300-620 | |||||
| PYGD-1408 | Short coarse type | 8-25 | 68 | 115-370 | |||||
| PYGD-1411 | Short head medium type | 10-25 | 90 | 140-370 | |||||
| PYGD-1414 | Short head coarse type | 12-25 | 115 | 180-370 | |||||
| 1500 | PYGB-1518 | Standard fine type | 1500 | 19-50 | 152 | 320-725 | 400 | 38800 | 3405×3480×3196 |

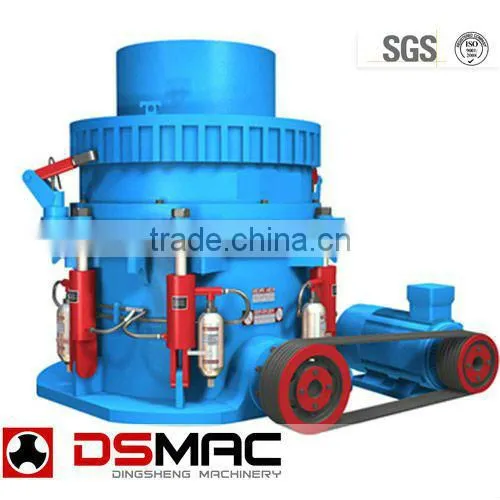

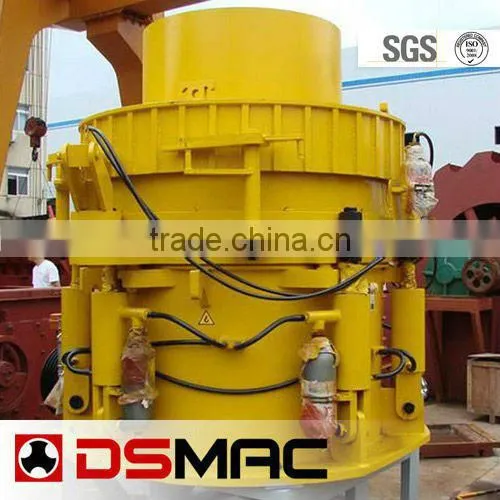

aggregate production line - Hydraulic cone crusher pictures;

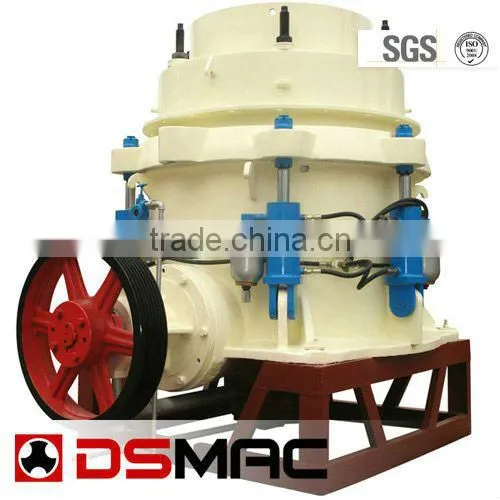

aggregate production line - Spring cone crusher pictures;

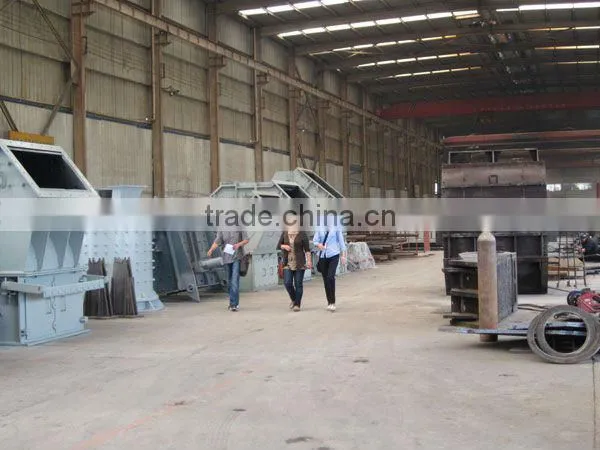

Real case - aggregate production line
