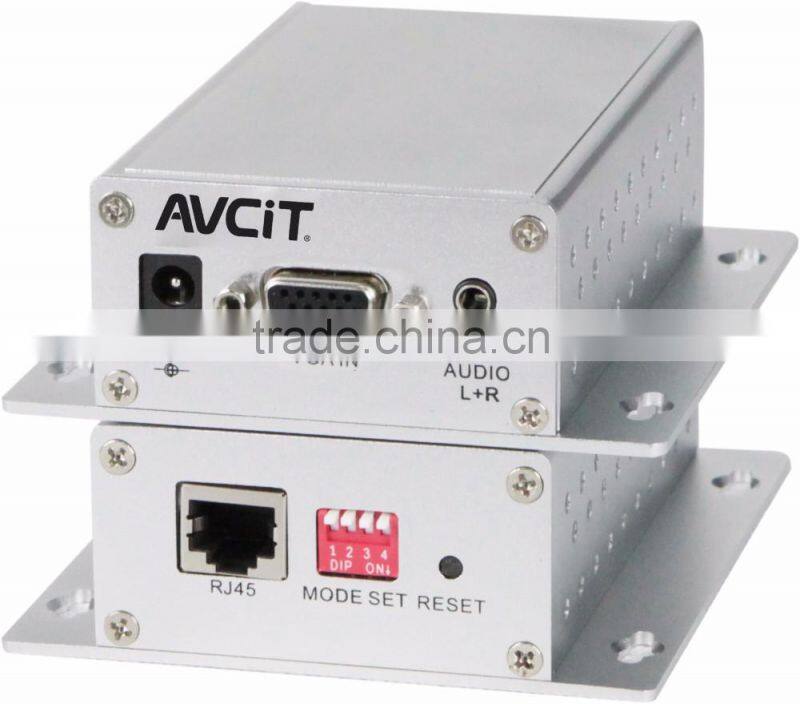

Convert VGA Signal Into CAT Signal Resolution Up to 1920*1200 @ 60 Hz VGA Extender Over Twisted Pair Cable

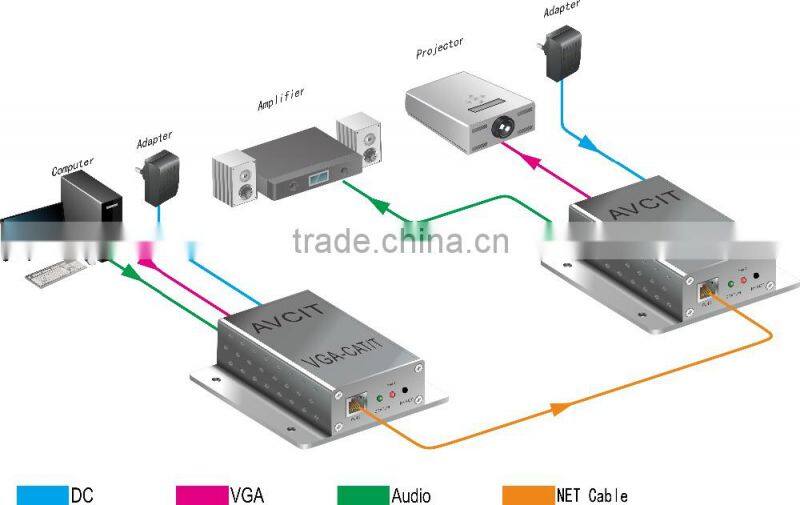

AVCVGACAT/TR is extender for VGA signal transmission over twisted pair cable, it convert VGA signal into CAT signal, the maximum transmission distance is up to 150m(CAT5e/6 cables)
l Resolution up to 1920*1200 @ 60 Hz;
l AVC-VGA-CAT/T: 1 VGA input with audio, 1 RJ45 output
l AVC-VGA-CAT/R: 1 RJ45 input, 1 VGA output with audio
l Signal transmission without compression;
l Transmission distance up to 150m.
l Support audio transmission synchronous
Parameter Name | VGA single cable extender |
signal type | 1-VGA |
Interface | 1-DB15 socket |
Signal level | RGB components 0.7 Vpp ; HV components: 4.0 Vpp |
Impedance | 75 Ω |
Video signal bandwidth | 350 MHZ |
Support resolution | 800 x600 @ 60; 1024 x768 @ 60;1280 x1024 @ 60; |
Stereo digital/signal types | 1 -stereo, non-equilibrium |
Frequency response | 20 Hz to 20 kHz, plus or minus 0.05 dB |
Input/output level | 2 VRMS (Max) |
Power supply | DC 5 v adapter |
