Product Details
| Place of Origin | Guangdong, China | Brand Name | Avcit | |
| Model Number | CVBS Extender over Optic Fiber |
Product Description
CVBS signal transmission over single-mode optic fiber, it convert CVBS signal into optic signal, CVBS Extender over Optic Fiber

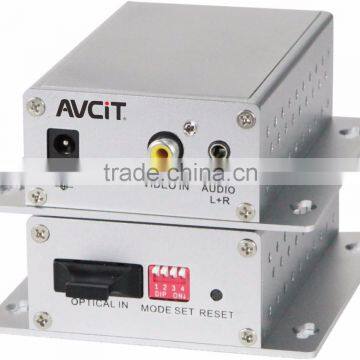

AVC OFCVBS/TR is extender for CVBS signal transmission over single mode optic fiber, it convert CVBS signal into optic signal, the maximum transmission distance is 25km.
l Support single-mode dual-core optic fiber transmission of CVBS signals ;
l Optic fiber interface is SC type;
l Maximum resolution support to 1920*1200@60Hz;
l AVC-OFCVBS/T: 1 channel CVBS input with audio, 1 optic fiber output;
l AVC-OFCVBS/R: 1 optic fiber input, 1 channel CVBS output with audio
l Transmission distance up to 25km.
l Automatically correcting of the level and vertical position;
l Support audio transmission synchronous
Parameter Name | CVBS optical fiber extender | |
CVBS input | interface | RCA port |
Signal type | Composite video | |
Gain | 0dB | |
Video signal width | 150MHz @ -3dB | |
DP | 0.1 ° | |
differential gain error | 0.1%, 3.58 to 4.43 MHz | |
Signal strength | 1v p p: CVBS | |
Input/output level | 2Vrms(Max) | |
Impedance | 75 Ω | |
Audio signal | Input/output port | 3.5mm unbalanced stereo audio input |
Gain | 0dB | |
Frequency response | 20 Hz to 20 kHz | |
Total harmonic distortion plus noise | 0.01% @ 1 kHz (rated voltage) | |
Signal-to-noise ratio (S/N) | >80dB at Vin=0 V | |
Stereo separation | >80dB @ 1 kHz | |
CMRR | > 75 db @ : 20 Hz ~ 2 | |
Signal type | stereo, non-equilibrium | |
impedance | Input: > 10 k Ω | |
Output | Fiber output port | SC connector |
Fiber type | Single Mode | |
Wavelength | Single Mode: 1310nm | |
Interface bandwidth | Positive: 6.25 Gbps, reverse: 6.25 | |
Clock Jitter | Gbps | |
Rise time | < 0.15 Tbit | |
Falltime | < 0.3 Tbit (20%-20%) | |
Maximum input distance | Maximum input distance | |
