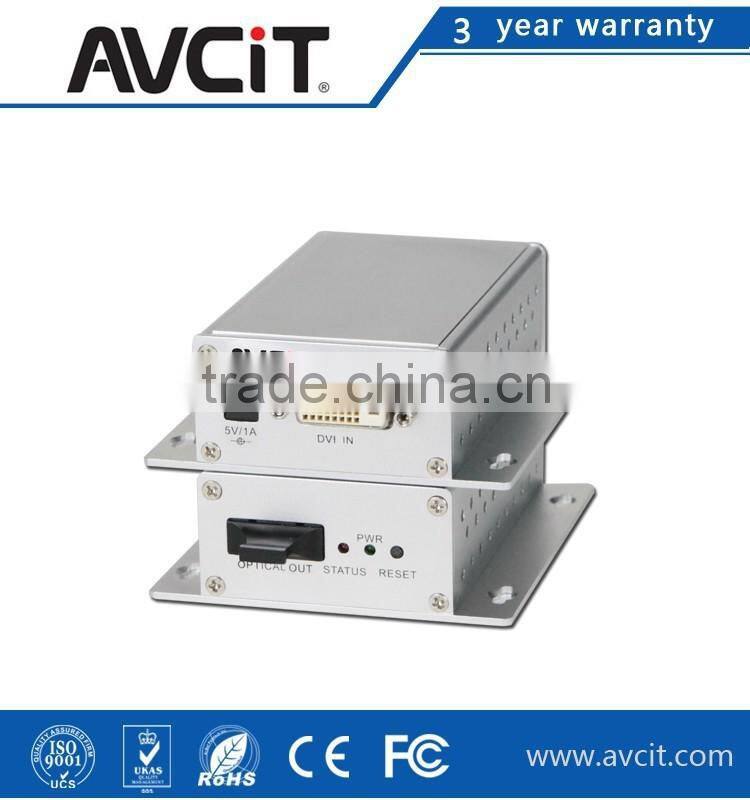

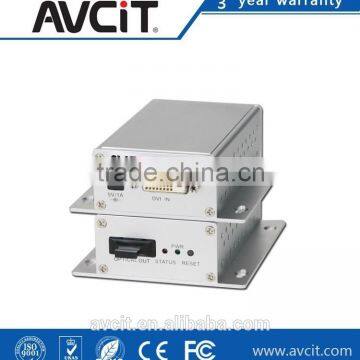

SC Connnector DVI Optical Fiber Extender

AVC-OFDVI/TR extender of optical fiber transmission, support a
maximum resolution up to: 1900 × 1200 _AT_ 60Hz, the optical
input and output interface using single-mode dual-core (one
for transmission of video(CVBS) signals, another is for detecting
interface status) SC type, the transmission distance of 1 m to 25
km.
1. Support single-mode dual-core optical fiber transmission high-resolution DVI signals (one for transmission of
video(CVBS) signals,another is for the detection interfacestatus);
2. Optical fiber input and output interface with single-mode SCtype;
3. Support Full HD the maximum resolution support to1920x1200@60Hz;
4. 1.65Gbps video(CVBS) signal bandwidth;
5. The AVC-OFDVI/T support 1 DVI-D female terminal input, a set of optical output;
6. The AVC-OFDVI/R supports a set of optical input, 1 DVI-D female terminal output;
7. Transmission distance: 1 m -25 km single-mode fiber.
