Full HD 1080P Video Conferencing System Auto-tracking 1/2.7 inch HD CMOS Image Sensor 2 Million Pixels HD Conference camera
- 10000 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Avcit | Model Number: | ATC04HD-B |
Product Description
Full HD 1080P Video Conferencing System Auto-tracking 1/2.7 inch HD CMOS Image Sensor 2 Million Pixels HD Conference camera

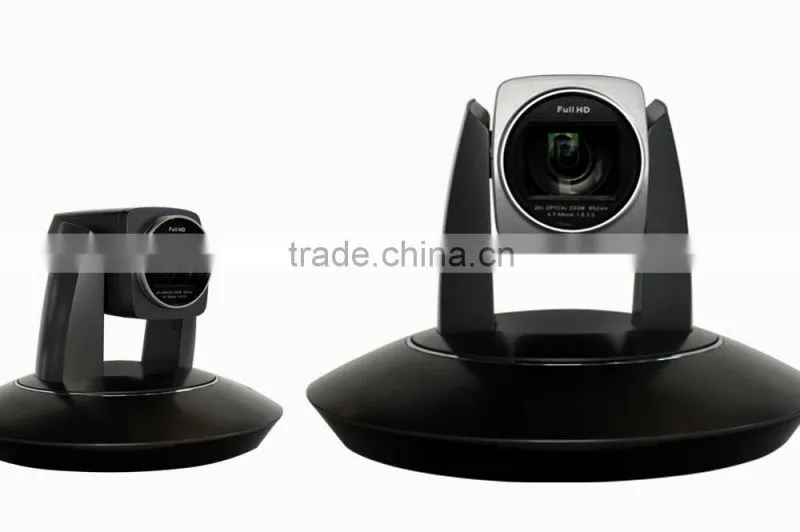

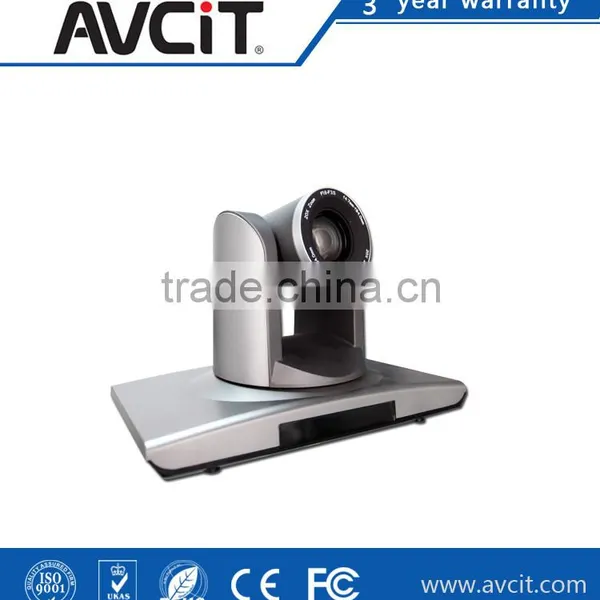

ATC03HD high-definition video conferencing camera is the industry-leading video conferencing system dedicated camera uses a 1/2.7 inch HD CMOS image sensor, 2 million effective pixels, used in conjunction with any codec, as well as other systems, the high quality of the output,high-resolution images. Built-in 18x optical zoom lens, the output ratio of 16: 9 images, and high-speed, mute pan / tilt operation shooting, and large areas of the object and the disturbance is very small.It also has auto focus / auto exposure, 128 position preset position, external / remote control, and more convenient features. It is ideal for video conferencing, distance learning and corporate training.
(1)Support a variety of formats from SD to HD 1080, via the menu / control command to switch, Switching without having to restart the machine;
(2)18x optical zoom and 4x digital zoom;
(3)Supports the HD-SDI interface, DVI-I interface (adapter YPbPr, HDMI, DVI-D, VGA, etc.), convenient and flexible;
(4)Support being installed, mounted on the ceiling;
(5)Facilitate visualization menu operation, to simplify complex DIP switch control, simplify user operations complexity;
(6)Support a variety of control methods: RS-232, RS-485/422;
(7)Support the VISCA / PELCO-D / Pelco-P protocol.
Parameter Name | HD Camera ATC03HD |
Image pickup device | HD: 1080p60,1080p50,1080p30,1080p25,1080i60,1080i5 |
Electronic Shutter | 1/2 to 1/10000 seconds |
Minimum illumination | 12Lx(50IRE,F1.6) |
Horizontal viewing angle | Maximum horizontal viewing angle of 55.2 degrees |
Zoom | 18x optical zoom, 4x digital zoom |
SNR (S / N) | ≥ 50dB |
Synchronization | Internal synchronization |
Backlight compensation | OFF / ON Auto Backlight Compensation |
Rotation speed | Horizontal (0.1 ° to 200 ° / sec) vertical (0.1 ° ~ 150 ° / sec.) |
Angle range | Horizontal ± 150 ° , vertical -30 to 90 ° |
Prese | 256 |
Video output interface | DVI interface (HD, can be converted to DVID, |
interface (HD), CVBS Interface (SD) | |
Multi-channel video output | Supports 2-way highdefinition and |
Control Protocol | PELCO-D,PELCO-P,VISCA |
Control Interface | RS485/422,RS232 |
Communication baud rate | 9600/19200/38400 bps |
Address range | 0 ~ 255 |
Temperature | Operating temperature: 0 ℃ ~ +50 ℃ , Storage |
Power Consumption | 12VDC,<10W |
Size | 260×160×140 mm ( L×W×H ) |
1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
3. How to make payment
We support TT / Western Union / MoneyGram for payment, you can chosse the one best suit for you.
You can get account information from our sales.
