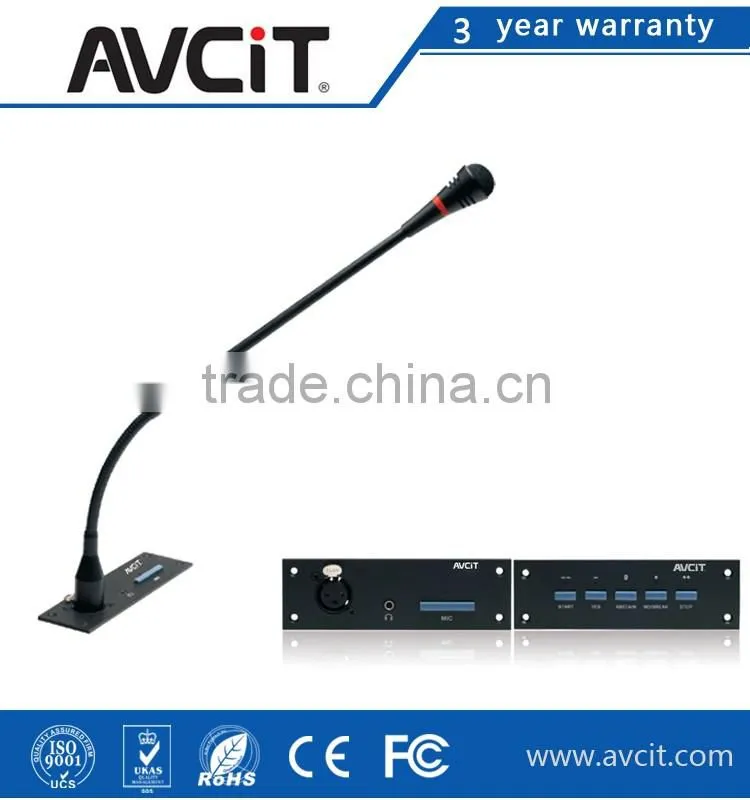

Embedded delegate unit with RJ45 8P specific unit interface

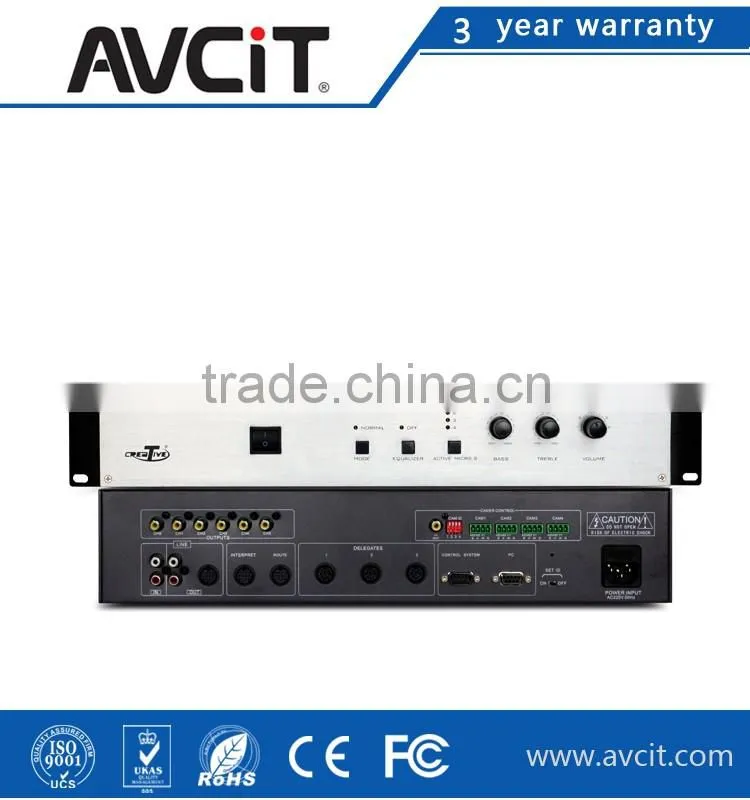

C3101 digital meeting host simultaneous interpretation system is a full-featured Conference hosts. Has multiple Conference mode: spokesman number select and statement mode select; embedded balanced Manager module to Regulation timbre; integrated environment noise inhibition and the digital moved frequency technology to prevent whistle; powerful of camera track and the signal switch features, can while received 4 pieces camera achieved different angle and location automatically track, while for camera video signal switch; development of system control agreement, can and in the controlled system, equipment tie using, by in the CREATIVE controlled to management conference system, achieved Smart Technology Conference.
Application:
Widely used in multimedia conferencing works, radio and television engineering, command and control centers and other occasions.
Features:
-Up to 960 speak units and 5 translation units to meet the 6 kinds of speech feature simultaneous interpretation.
-"Hand in hand" connection, ease to installation and maintenance.
-With audio input interface, you can enter an external audio signal
-It has many sets of audio channel output. Sound reinforcement system can be connected to amplify the speaker's speech or audio system, connect to the remote session, and so on.
-Spokesman limits feature: limit current up to speak, when speak in unit value is reached, to open an additional statement, statement to open unit must be turned off, number 1/2/4/6 adjustable floor unit, and unit President is not restricted.
-FIFO functionality: If the current has reached the maximum number of speakers, open statement after statement un-it before the unit will automatically replace the oldest open, number 1/2/4/6 adjustable floor unit, unit President out o-f control.
-Voting and data management features.
-Come with camera tracking feature.
-Open systems management control protocols.
-Combined with telephone coupler tele-conference calls can be made.
-Host housing made of metallic materials, lines and shell are strengthened with grounded connection, ability to ensure antistatic 8000V.
Technical specification:
Power supply |
Switch power 100-240V |
Signal-to-noise ratio |
>80dB |
Static power consumption |
10W |
Harmonic distortion |
<0.5% |
Max power |
350W |
Overload distortion |
<1% |
Output power |
≤110W/24V |
Crosstalk attenuation |
>50dB |
Audio output |
100Ω;unbalance |
Dimensions |
430x275x90 |
Microphone output |
100Ω/-60dB/unbalance |
Color |
black |
Frequency response |
60-8KHz |
Weight |
6.9KG |
Diatram:
