New Chairman/Delegate Unit Conference Microphone Audio Speaker System Wired Desktop Meeting

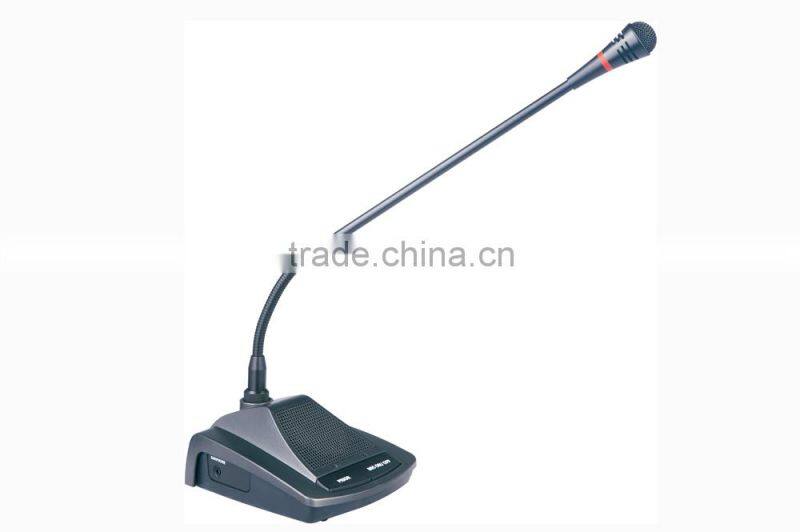

D3102 is a desktop-style discussions and speech chairman unit, simple operation, participants only need to tap the speech button they can speak, built-in speaker and headphone jack, clear sound with volume control knob DSP processing with professional design, make speaker voice clear and lucid. Ideal for large and small conference rooms, large and small conference rooms, multimedia conference room, upscale conference center and other applications.
(1)Exquisite and elegant table structure;
(2)Unit has a built-in speaker and headphone jack, clear sound with volume control knob;
(3)High-directional microphone and speak with a circular indicator, pluggable microphone;
(4)Simple operation, just tap the keys can request to speak to speak;
(5)With howling suppression, when the microphone is turned on, the built-in speakers are automatically shut down to prevent the sound reinfusion;
(6)Unit is passives device, powered by the system host. Input voltage range of 24V to be safe;
(7)Unit comes with 2 m 8-core connection wire line foil + waterline;
(8)using shielded wire greatly reduces the interference of strong electromagnetic waves;

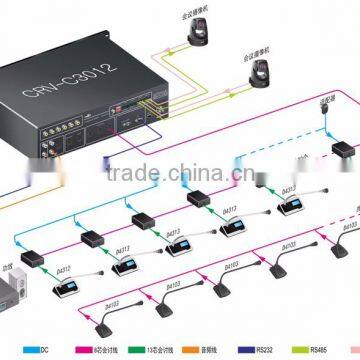

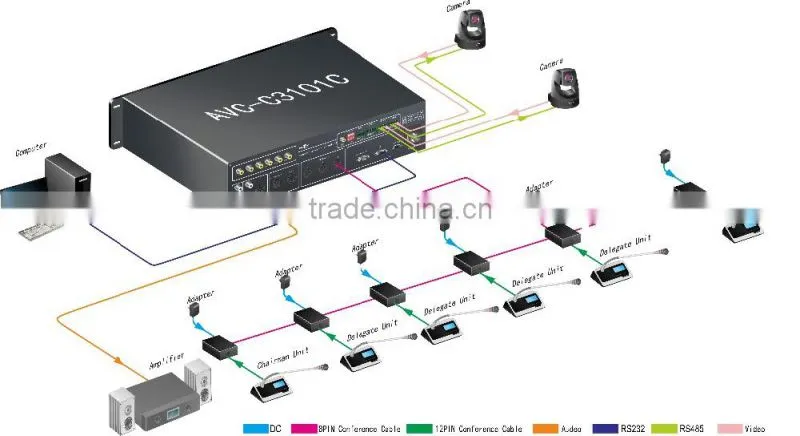

(9)Chairman unit unrestricted connection position can be connected in series in the line anywhere;
(10)Built-in headphone jack, and freely adjust the volume;
(11)"Hand in hand" cable series model, easy to install and maintain;
(12)Medium / high-end conference center.
Parameter Name | Desktop speech unit D3102/3 |
Power | DC24V(host power supply) |
Unit interface | DIN13P interface |
Power Consumption | 3W |
headset output | 9dBu,8-32Ω,3.5mm mini jack |
Speaker power | 2W |
Microphone type | capacitive diaphragm |
Point | heart-shaped |
S / N | >80dB |
Crosstalk attenuation | >80dB |
Distortion | <0.10% |
Frequency response | 60-8kHz |
Equivalent noise | ~20dBSPL |
Maximum SPL | 105dB(3% threshold) |
Sensitivity | -22dBv/Pa |
Dimensions (mm) | 127 (L) X 146 (W) X 62 (H) |
Color | Silver Black |
