Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > S-35 Swithing Power Supply

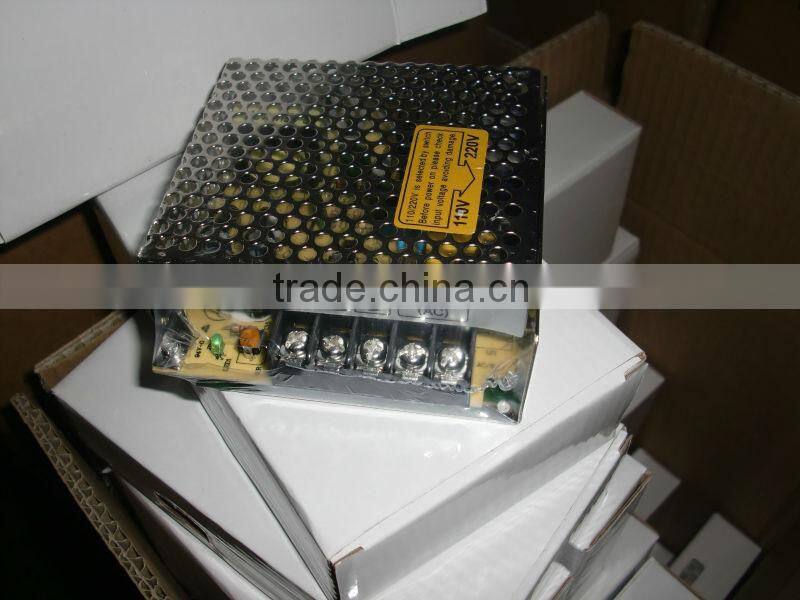

S-35 Swithing Power Supply

Name: S-35 Swithing Power Supply
Brand: KASAN/OEM/NEUTRAL
SKU: 134833491
Availability: InStock

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

KASAN/OEM/NEUTRAL

Model Number:

S35

Contact Supplier Request Quote Chat Now

Yueqing Kasan Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name KASAN/OEM/NEUTRAL

Model Number S35

Output Power 1 - 50W

Output Type Single

Input Voltage Other, full range

Output Voltage full range

Specifications

The S-35 switching power supply is high efficiency, low power consumption.

Detailed Product Description

1.Universal input voltage
2..10Years Experience Factory
3.2 years warranty
4.12V switching power supply

AC/DC DC/DC Switching Power Supply (SMPS) 35W Single Output S-35

Features:
1) AC input range selected by switch.
2) Protections: Short circuit/Over load.
3) Cooling by free air convection.
4) 100% full load burn-in.
5) Lost cost.
6) High reliability.

1. INPUT: 85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC 47 ~ 63Hz
2. SETUP, RISE, HOLD TIME: 200ms, 100ms, 30ms
3. WORKING TEMP.: -10 ~ +60 C 20 ~ 90% RH
4. WITHSTAND VOLTAGE: I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
5. ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
6. DIMENSION: 129*98*38mm (L*W*H)
7. PACKING: 0.4Kg; 45PCS/18.1Kg/0.57CUFT

Model /Specification	S-35-5	S-35-12	S-35-15	S-35-24
DC output voltage	5V	12V	15V	24V
Output voltage error(Note2)	± 2%	± 1%	± 1%	± 1%
Rated output current	7A	3A	2.4A	1.5A
Output current rage	0-7A	0-3A	0-2.4A	0-1.5A
Wave and noise(Note3)	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note4)	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Load stability(Note5)	± 1%	± 0.5%	± 0.5%	± 0.5%
DC output power	35W	36W	36W	36W
Efficiency	70%	76%	78%	78%
Adjustable range for DC voltage	± 10, -5%	± 10%	± 10%	± 10%
AC input voltage range	85~132VAC/170~264VACselected by switch
Input current	0.85A/115V 0.45A/230V
AC impulse current	Cold-start current 18A/115V 36A/230V
Leakage current	< 0.5mA/240VAC
Overload protection	105%~150% Type: current limiting; Reset; auto recovery
Over-voltage protection	… …
High-temperature protection	… …
Temperature coefficient	± 0.03% degrees Celsius (0~50 degrees Celsius)
Setup rise hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min. /1cycle, Period for 60min, Each axes
Withstand voltage	Input and output interval: 1.5KVAC, Input and enclosure: 1.5KVAC, Output and enclosure: 0.5KVAC
Isolation resistance	Input and output interval, Input and enclosure, Output and enclosure: 0500VAC/100M Ohms
Working temperature and humidity	-10 degrees Celsius~+60 degrees Celsius, 20%~90%RH
Store temperature and humidity	-20 degrees Celsius~+85 degrees Celsius, 10%~95RH
Overall dimension	1299838mm
Weight	0.4Kgs
Safety standards	MeetUL1012
EMC standards	… …
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25 degrees Celsius 70%Rh, Humidity 2. Error, include the setting error, line stability and load stability. (Note: 5) 3. Wave test: adopting“ A12” double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting 4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5. Load stability test: The load is from 0% to 100%, others 60%. 6. C2, 3, 11must be knocked down.
