Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > S100 12V Switching Power Supply S-100 ,led Driver 100w

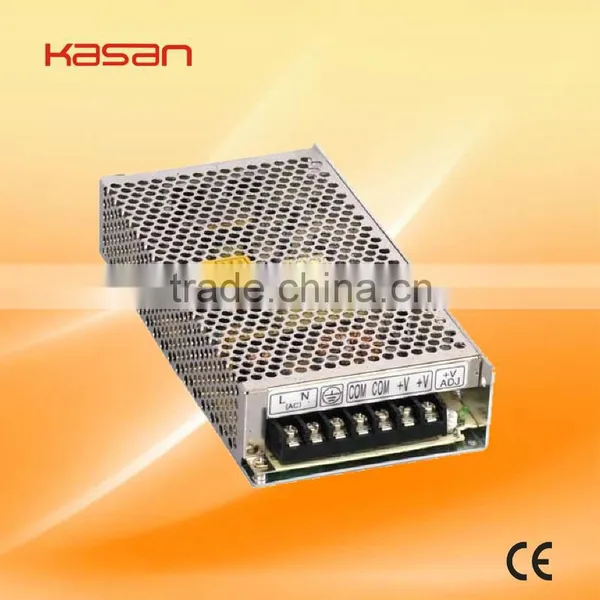

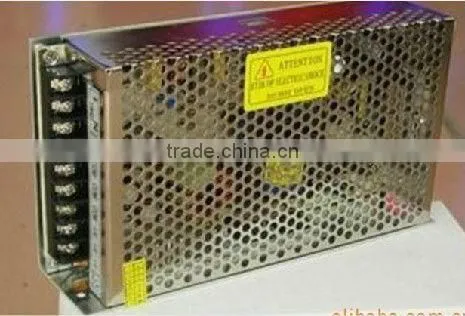

S100 12V Switching Power Supply S-100 ,led Driver 100w

Name: S100 12V Switching Power Supply S-100 ,led Driver 100w
Brand: KASAN/OEM/NEUTRAL
SKU: 134833493

S100 12V Switching Power Supply S-100 ,led Driver 100w thumbnail-1

S100 12V Switching Power Supply S-100 ,led Driver 100w photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

KASAN/OEM/NEUTRAL

Model Number:

S100

Contact Supplier Request Quote Chat Now

Yueqing Kasan Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name KASAN/OEM/NEUTRAL

Model Number S100

Output Power 51 - 100W

Output Type Single

Input Voltage 220V

Output Voltage 12V

Output Frequency 50HZ

Output Current 0-8.5A

Specifications

The S100 swithing power supply is power saving with led driver 100w.

Specifications

CE, CQC, ISO9001
199*98*38mm
5V12V15V24V,2A3.7A4.5A6.7A8.5A20A
0.65kg reliable hot ac dc switch power supply S100 oem

hot S100 12V100W switching power supply ce

Model Specification	S-100-3	S-100-5	S-100-7-5	S-100-12	S-100-15	S-100-24	S-100-27	S-100-48
DC output voltage	3V	5V	7.5V	12V	15V	24V	27V	48V
Output voltage error (Note2)	2%	2%	1%	1%	1%	1%	1%	1%
Rated output current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output current rage	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Wave and noise(Note3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note4)	0.5%	0.5%	0.5%	0.3%	0.3%	0.2%	0.2%	0.2%
Load stability(Note5)	0.5%	0.5%	0.5%	0.3%	0.3%	0.2%	0.2%	0.2%
DC output power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	80%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85-3.3V	4.75-5.5V	6.75-8.25V	10.8-13.2V	13.5-16.5V	21.6-26.4V	26-32V	43.2-52.8V
AC input voltage range	85~132VAC/180~264VACselected by switch47~63Hz;255-370VDC
Input current	2.4A/115V 1.2A/230V
AC impulse current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	yes
Over-voltage protection	yes
High-temperature protection	yes
Temperature coefficient	0.03%°C(0~50°C)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure:0500VAC/100M Ohms
Working temperature and humidity	-10°C~+60°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95RH
Overall dimension	1999838mm
Weight	0.5Kgs
Safety standards	Meet UL1012
EMC standards	……
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note:5) 3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5.Load stability test: The load is from 0% to 100%,others 60%. 6.C2,3,11must be knocked down.
