Specifications

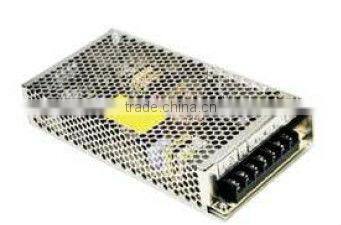

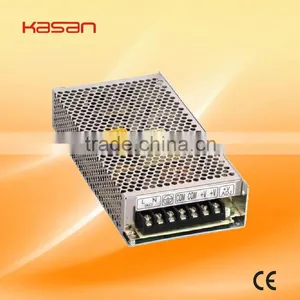

This output 120W switching power supply is welcomed by broad customers.High reliability S-120 switching power supply
1.Universal input voltage
2..10Years Experience Factory
3.2 years warranty
4.12V switching power supply
1. Our company is a professional manufacture and OEM.
Our products obtain CE and ISO9001 Certificate and according to IEC 521 international standard to.
2. Low price and high reliability
105 C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave
Specification:
|
Model Specification |
S-120-12 | S-120-15 | S-120-24 | S-120-48 |
DC output |
12V 10A | 15V 8A |
24V 5A
|
48V 2.5A |
Wave and noise |
100mVp-p | 100mVp-p |
100mVp-p
|
100mVp-p |
Inlet stability |
±0.3% | ±0.3% |
±0.2%
|
±0.2% |
Load stability |
±0.3% | ±0.3% |
±0.2%
|
±0.2% |
Efficiency |
81% | 82% |
84%
|
84% |
Adjustable range for DC voltage |
±10% | ±10% |
±10%
|
±10% |
AC input voltage range |
85~132VAC/170~264VAC Selected by switch 47~63Hz,240~370VDC
|
|||
AC input voltage range |
Cold-start current 30A/115V 60A/230V
|
|||
OverLoad protection |
105%~150% hiccup mode,auto-recovery
|
|||
OverLoad protection |
115%~135% rated output voltage
|
|||
Setup,rise,hold up time |
200ms 50ms 20ms
|
|||
Withstand voltage |
I/P-O/P:1.5Kv I/P-FG:1.5Kv O/P-FG:0.5Kv 1minute
|
|||
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
|
|||
Working temperature |
-10°C~+50°C
|
|||
Safety standards |
Design refer to GB4943,UL60950,EN60950
|
|||
EMC standards |
Design refer to GB9254,EN55022 classB
|
|||
Weight |
0.63kg |
|||
