YT-P2 Wooden Box Making Machine

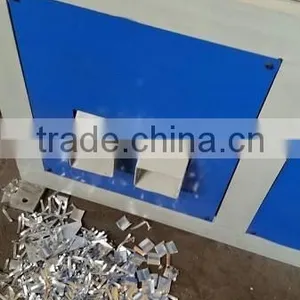

YT-P2 Wooden Box Making Machine thumbnail-1
YT-P2 Wooden Box Making Machine thumbnail-2
YT-P2 Wooden Box Making Machine thumbnail-3
YT-P2 Wooden Box Making Machine thumbnail-4
YT-P2 Wooden Box Making Machine thumbnail-5

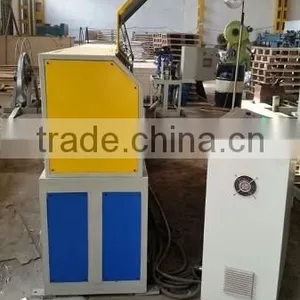

YT-P2 Wooden Box Making Machine thumbnail-6

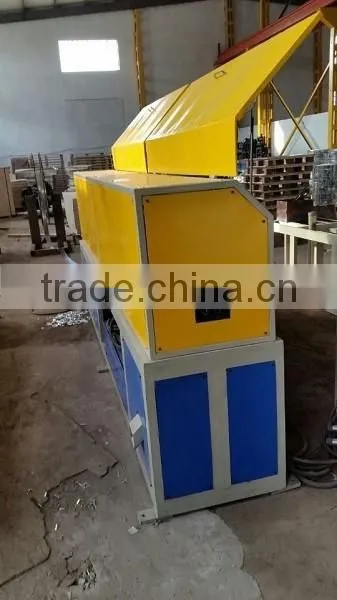

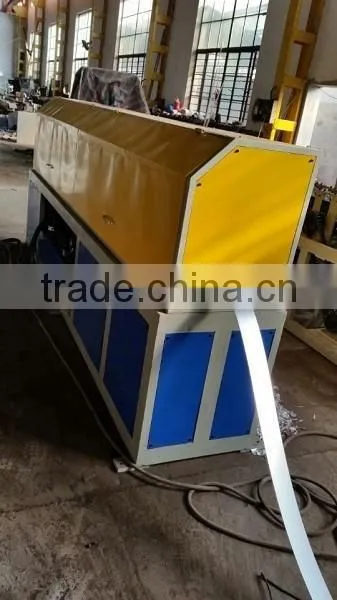

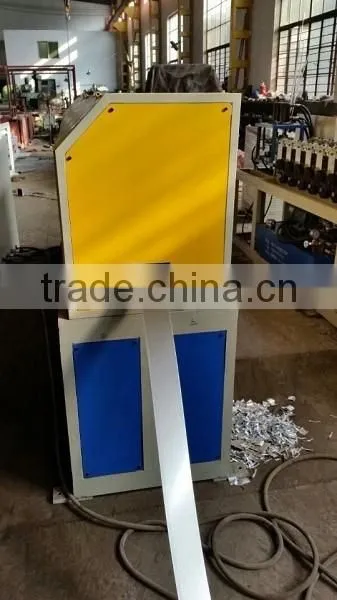

YT-P2 Wooden Box Making Machine photo-1
YT-P2 Wooden Box Making Machine photo-2
YT-P2 Wooden Box Making Machine photo-3
YT-P2 Wooden Box Making Machine photo-4

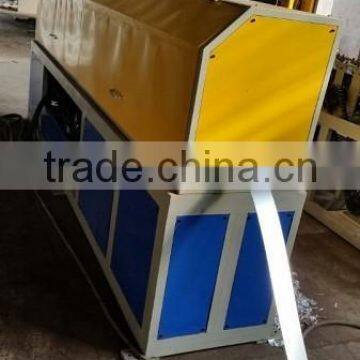

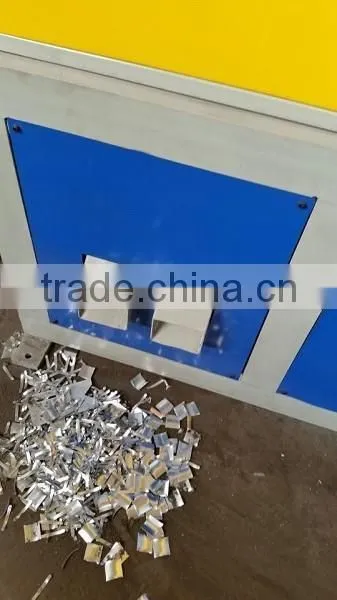

YT-P2 Wooden Box Making Machine photo-5

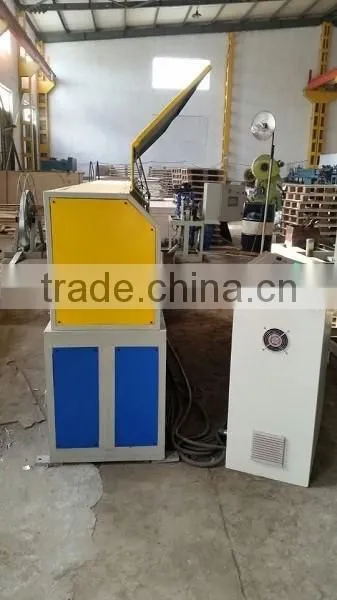

YT-P2 Wooden Box Making Machine photo-6
US$ 1 - 19,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Other Forming Machine
Contact Supplier Request Quote Chat Now
Hangzhou Yutong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shagnhai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Usage Other Forming Machine
Place of Origin Zhejiang, China
Brand Name Yutong
Model Number YT-P2
Voltage 380V
Power(W) 5.5KW
Dimension(L*W*H) L=3300mm B=1200mm H=1000mm
Weight 1500 kg
Certification EU CE Certificate, ISO9001 2008 Authentication
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

What makes us better than others





Professional

A.more than 15 years experience



B.keeping improving quality

Low price

A.low labor cost



B.Convenient transportation

Easy operation

A.Equiped with PLC



B.Steady performance

Customer requirement

A.Customer’s design, color & logo are accepted

15 month warrenty

A.Keep trouble far away from you





YT-P2 Wooden box making machine

This Roll Forming Machine consist of sheet feeding device, roll forming main machine, hydraulic system, PLC controller.

Working Flow

sheet feeding--roll forming--automatic cutting--run out table

Main Parameter



No

Item

Parameter

Note

1

Suitable



Material

Type

Pre-paint Steel

Aluminum



Width

40mm-42mm



Thickness

0.70mm—0.80mm



2

Product

Specs

Length

Any length

Adjustable

3

Machine



Material

Active shaft

No. 45 steel tempered



Roller

No. 45 steel chrome plated

Cutting Blade

Cr12 quenched

4

Power

Requirement

Type

380V/3PH/50HZ



Total

7.5kw



Hydraulic

4kw

5

Speed

Forming speed

15-18m/min

Adjustable

7

Speed

Product speed

5-10m/min

Adjustable

8

Transmission style

Chain, sprocket



9

Main machine structure

Wall Panel



10

Type of Cutting

length-set cutting

Hydraulic cutter

11

Control System

Mitsubishi PLC& transducer



12

Product support

Run out table

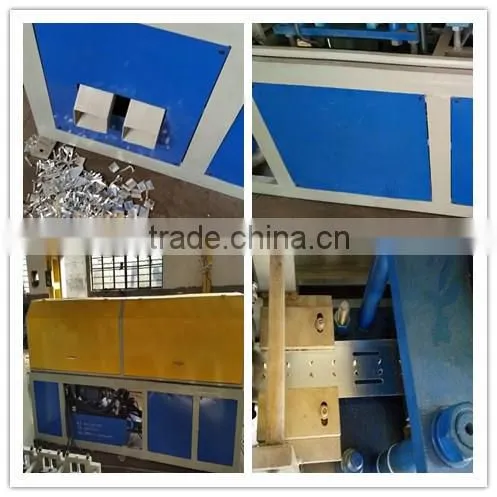

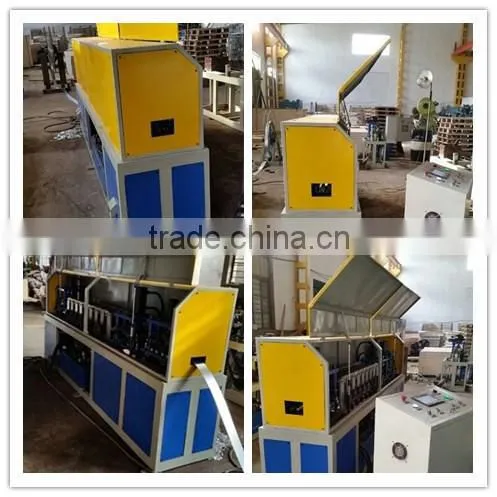

Detailed Picture



Nailless / Foldable / Collapsible / No-nail Plywood box machine

YT-P2 Wooden box making machine

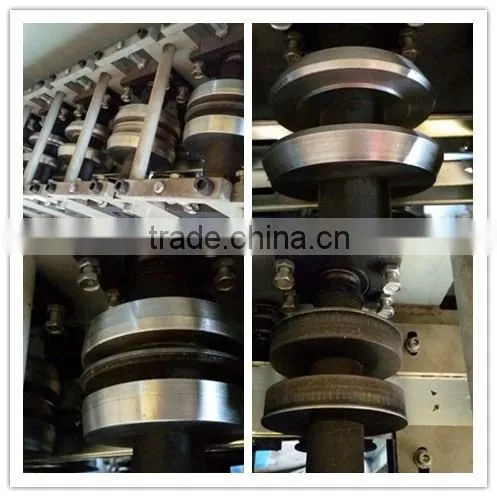

Rollers

YT-P2 Wooden box making machine

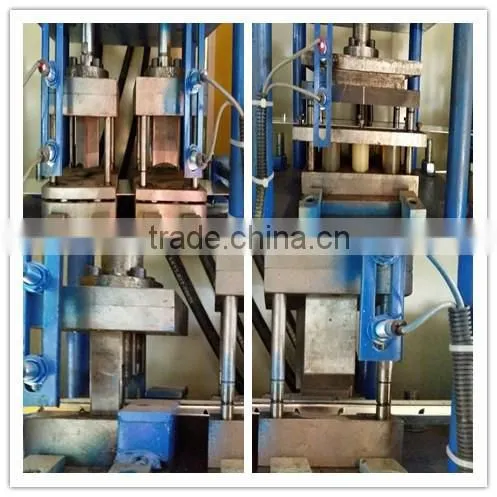

moulds

YT-P2 Wooden box making machine

safty shield

YT-P2 Wooden box making machine

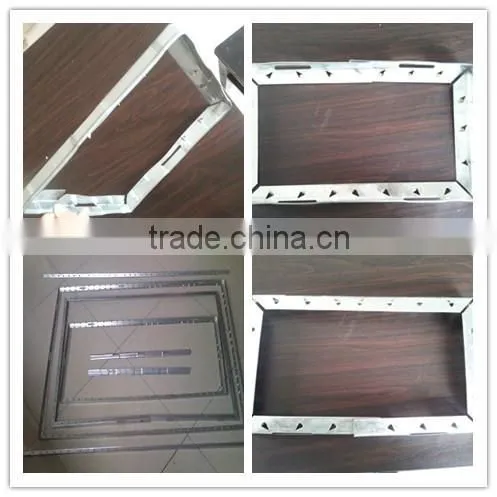

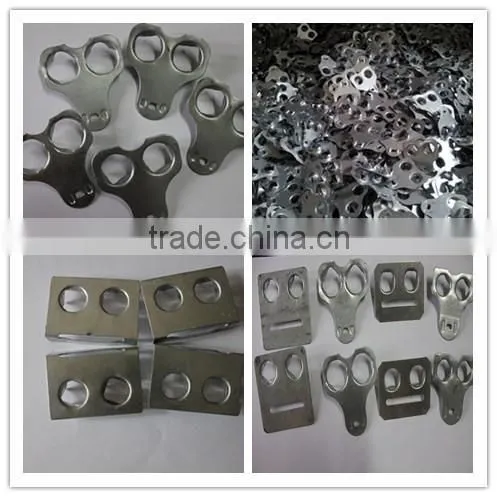

Steel Strip / Belt / Band

YT-P2 Wooden box making machine

 buttons

YT-P2 Wooden box making machine

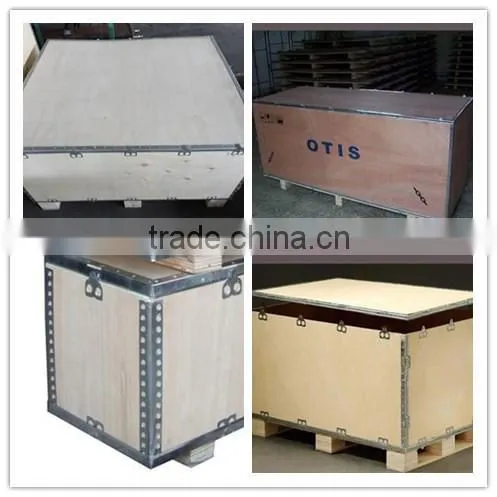

Nailless / Foldable / Collapsible / No-nail Plywood box

YT-P2 Wooden box making machine
