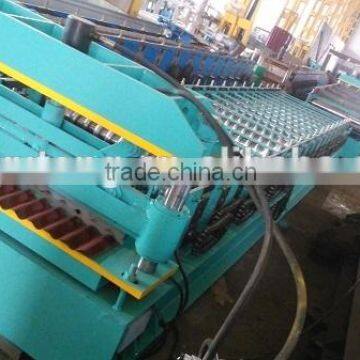

This Roll Forming Machine consist of 3 T automatic decoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Optional: hydraulic decoiler /automatic stacker
Working Flow
Decoiling--sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | |
1 | Suitable
Material | Type | Pre-paint Steel Aluminum |
|
Width | 914mm | According to profile | ||
Thickness | 0.18—0.5mm |
| ||
2 | Product
Specs | Cover width | 740mm | Refer to drawing |
Wave height | 18mm | |||
Length | Any length | |||
3 | Machine
Material | Active shaft | No. 45 steel tempered | Up to final design |
Roller | No. 45 steel chrome plated | |||
Cutting Blade | Cr12 quenched | |||
4 | Power Requirement | Type | 380V/3PH/50HZ | Customized |
Main motor | 5.5kw | Up to final design | ||
Hydraulic | 3kw | |||
5 | Speed | Forming speed | 20-25m/min |
|
7 | Forming Stand | About 17 group | Up to profile | |
8 | Transmission style | Chain, sprocket |
| |
9 | Main machine structure | Guide Pillar |
| |
10 | Type of Cutting | length-set cutting | Hydraulic cutter | |
11 | Control System | Mitsubishi PLC& transducer |
| |
12 | Product support | Run out table | ||
Detailed Picture& Decription
1. Decoiler
Manual Decoiler with brake
Hydraulic decoiler

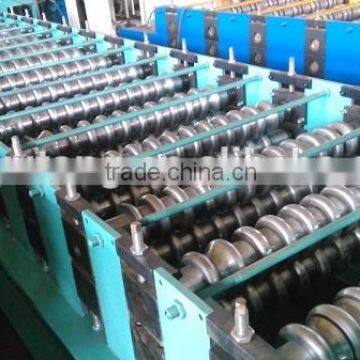

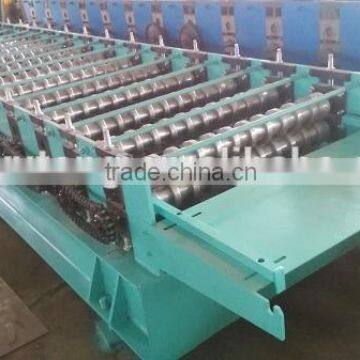

2. CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime
3. Pillar style post-cutting equipment, photoelectric switch ensure cutting precision and lifetime.
4. PLC system
5.Hydraulic unit
6.Container Loading
If you have any question pls let us know when you feel free, thank you!
