What makes us better than others
China supplier Foldable plywood box machine
This Roll Forming Machine consist of sheet feeding device, roll forming main machine, hydraulic system, PLC controller.
Working Flow
sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | ||
1 | Suitable
Material | Type | Pre-paint Steel Aluminum |
| |
Width | 40mm-42mm |
| |||
Thickness | 0.70mm—0.80mm |
| |||
2 | Product Specs | Length | Any length | Adjustable | |
3 | Machine
Material | Active shaft | No. 45 steel tempered |
| |
Roller | No. 45 steel chrome plated | ||||
Cutting Blade | Cr12 quenched | ||||
4 | Power Requirement | Type | 380V/3PH/50HZ |
| |
Total | 7.5kw |
| |||
Hydraulic | 4kw | ||||
5 | Speed | Forming speed | 15-18m/min | Adjustable | |
7 | Speed | Product speed | 5-10m/min | Adjustable | |
8 | Transmission style | Chain, sprocket |
| ||
9 | Main machine structure | Wall Panel |
| ||
10 | Type of Cutting | length-set cutting | Hydraulic cutter | ||
11 | Control System | Mitsubishi PLC& transducer |
| ||
12 | Product support | Run out table | |||
Detailed Picture

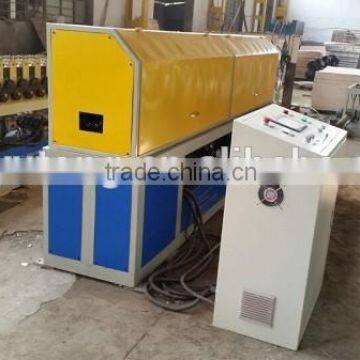

Nailless / Foldable / Collapsible / No-nail Plywood box machine

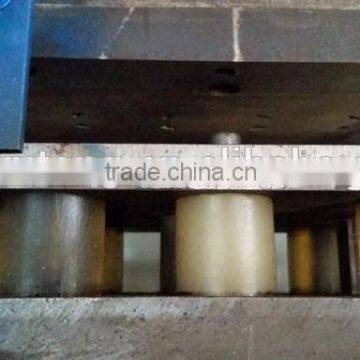

Rollers

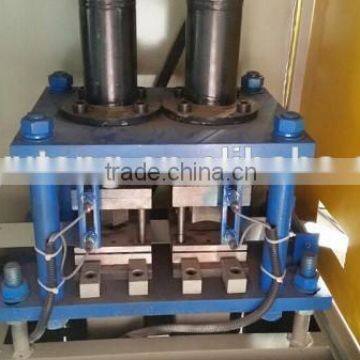

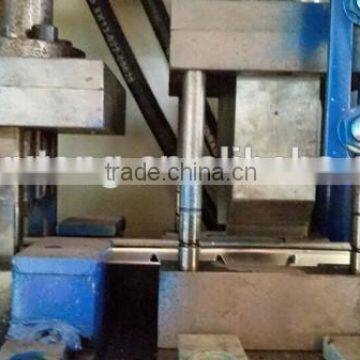

moulds
safty shield
Steel Strip / Belt / Band
buttons
Nailless / Foldable / Collapsible / No-nail Plywood box
If you have any question pls let us know when you feel free, thank you!
Contact
Person: Una Huang
Tel: (86)-15158067512
Skype: memenan14
Whatsapp: 008615158067512
