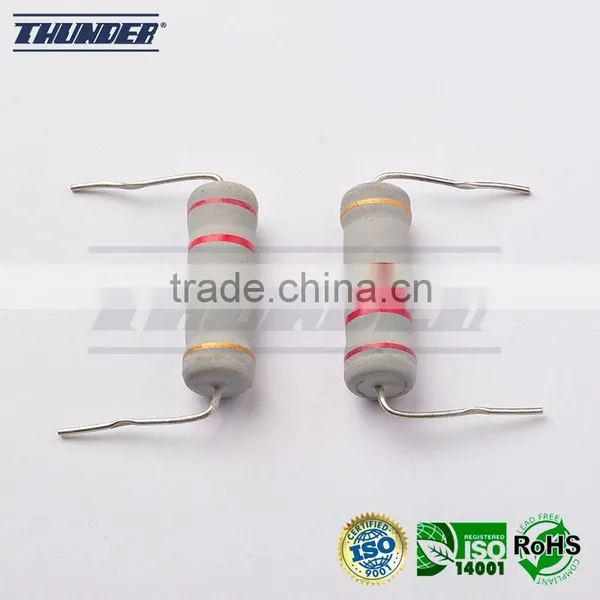

FRN Series - 1/4W Fixed Fusible Metal Film Resistors (Fuse Resistor)
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
THUNDER
Model Number:
FRN
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRN Series - 1/4W Fixed Metal Glaze Film Flame Proof Resistors (High Voltage / High Resistance Value)NegotiableMOQ: 5000 Pieces -
RSN Series - Fixed Metal Oxide Film Flame Proof ResistorsNegotiableMOQ: 5000 Pieces
-
RSN Series - 7W Metal Oxide Film High Wattage and High Voltage ResistorsNegotiableMOQ: 500 Pieces
-
RSN Series - 3W Metal Oxide Film High Voltage and High Wattage ResistorsNegotiableMOQ: 500 Pieces
-
RSN Series - 1/2W Metal Oxide Film High Wattage and High Voltage ResistorsNegotiableMOQ: 2000 Pieces
Place of Origin
Taiwan, China
Brand Name
THUNDER
Model Number
FRN
Type
Fuse Resistor
Technology
Metal Film
Package Type
Throught Hole
Resistance
0.1R ~ 300K OHM
Resistance Tolerance
1% 5%
Rated Power
1/4W
Temperature Coefficient
200PPM
Operating Temperature
-55 ~ 155 Degree C
Specifications
1/4W Fixed Fusible Metal Film Resistors- Flame Proof Coating
- Low Temperature Coefficient

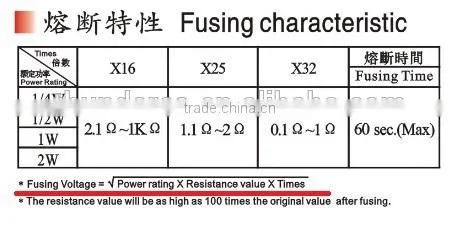

- Uniform in Fusing Time
1/4W Fixed Fusible Metal Film Resistors
| TYPE | Power Rating | Dielectric Withstanding Voltage | Max. Open Circuit Voltage | Resistance Range | |
| Normal size | FRN1/4W | 0.25W | 300V | 200V | 0.1Ω~300KΩ |
| FRN1/2W | 0.5W | 500V | 250V | 0.1Ω~300KΩ | |
| FRN1W | 1W | 500V | 250V | 0.1Ω~300KΩ | |
| FRN2W | 2W | 500V | 250V | 0.1Ω~300KΩ | |
| Small size | FRN1/2W(S) | 0.5W | 300V | 200V | 0.1Ω~300KΩ |
| FRN1W(S) | 1W | 500V | 250V | 0.1Ω~300KΩ | |
| FRN2W(S) | 2W | 500V | 250V | 0.1Ω~300KΩ | |
| FRN3W(S) | 3W | 500V | 250V | 0.1Ω~300KΩ | |
| Properties: |
| Temperature coefficient of resistance: +/-200ppm/degrees Celsius |
| Short time overload: +/- (2%+ 0.05 ohms) |
| Dielectric withstanding voltage: no evidence of damage |
| Terminal strength: no evidence of damage |
| Moisture load life: +/- (5%+ 0.05 ohms) |
| Load life at 70 degrees Celsius: +/- (5%+ 0.05 ohms) |
| Temperature cycling: +/- (1%+ 0.05 ohms) |
| Solderability: >95% |
| Resistance to solvent: no evidence of damage |
| Flame resistant: no evidence of flame |
| Resistance tolerance: +/-5%, +/-10% |

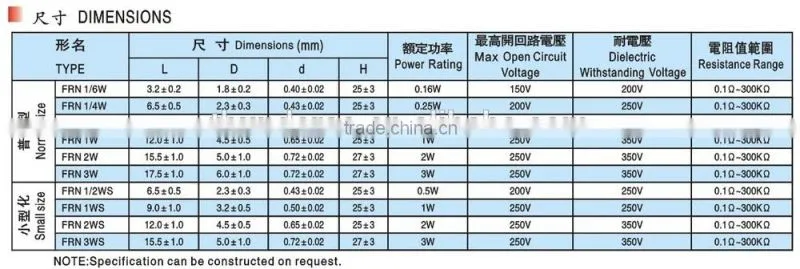

| Type (normal size ): dimensions (mm) |
| FRN 1/4W: |
| 6.5 +/- 0.5 (L) x |
| 2.3 +/- 0.3 (D) x 0.6 +/- 0.05 (d) x 28 +/- 3 (H) |
| Power rating: 0.25W |
| Dielectric withstanding voltage: 300V |
| Max. open circuit |
| voltage: 200V |
| Resistance: 10 to 2M ohms |
| FRN 1/2W: |
| 9.0 +/- 1.0 (L) x 3.2 +/- 0.5 (D) x 0.7+/- 0.05 (d) x |
| 28 +/- 3 (H) |
| Power rating: 0.5W |
| Dielectric withstanding voltage: 500V |
| Max. open circuit voltage: 250V |
| Resistance: 10 to 2M |
| ohms |
| FRN 1W: |
| 12.0 +/- 1.0 (L) x 4.5 +/- 0.5 (D) x 0.8 +/- 0.05 (d) x 32 +/- 3 (H) |
| Power rating: 1W |
| Dielectric withstand |
| ing voltage: 500V |
| Max. open circuit voltage: 250V |
| Resistance: 10 to 2M ohms |
| FRN 2W: |
| 15.5 +/- 1.0 (L) x 5.0 +/- 1.0 (D) |
| x 0.8 +/- 0.05 (d) x 35+/- 3 (H) |
| Power rating: 2W |
| Dielectric withstanding voltage: 500V |
| Max. open circuit voltage: 250V |
| stance 10 to 2M ohms |
| Type (small size): dimensions (mm) |
| FRN 1/2W(S): |
| 6.5 +/- 0.5 (L) x 2.3 +/- 0.3 (D) x 0.6 + |
| /- 0.05 (d) x 28 +/- 3 (H) |
| Power rating: 0.5W |
| Dielectric withstanding voltage: 300V |
| Max. open circuit voltage: 200V |
| Resistance: 10 to 2M ohms |
| FRN 1W(S): |
| 9.0 +/- 1.0 (L) x 3.2 +/- 0.5 (D) x 0.7 +/- (d) x |
| 28 +/- 3 (H) |
| Power rating: 1W |
| Dielectric withstanding voltage: 500V |
| Max. open circuit voltage: 250V |
| Max. open circuit |
| voltage: 250V |
| Resistance: 10 to 2M ohms |
| FRN 2W(S): |
| 12.0 +/- 1.0 (L) x 4.5+/- 0.5 (D) x 0.8 +/- 0.05 (d) x 32 +/-3 (H) |
| Power rating: 2W |
| Dielectric withstanding voltage: 500V |
| Max. open circuit voltage: 250V |
| Resistance: 10 to 2M ohms |
| FRN 3W(S): |
| 15.5 +/- 1.0 (L) x 5.0 +/-1.0 (D) x 0.8 +/- 0.05 (d) x 35 +/- 3 (H) |
| Power rating: 3W |
| Dielectric w |
| ithstanding voltage: 500V |
| Max. open circuit voltage: 250V |
Packaging & Shipping
Standard Packing : Plastic Pallet wrapped by water proof plastic film
Optional Packing : Strong Metal Pallet with wood cover to protect products withour damages during transportation.
