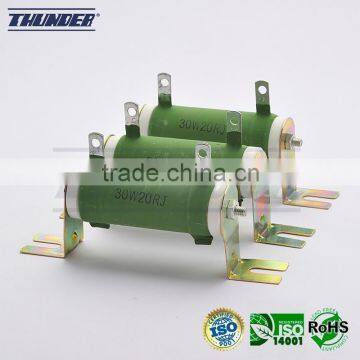

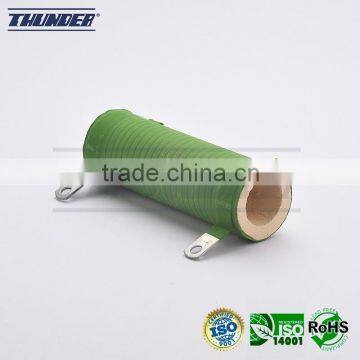

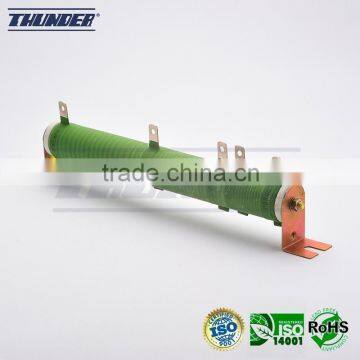

Ch Series - 400W Fixed High Power WireWound Resistors (Non-Inductive Optional)
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
THUNDER
Model Number:
CHR
Type:
Fixed Resistor
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CH Serie s- 300W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 10 Pieces -
CH Series - 150W Fixed High Power WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 10 Pieces
-
KNP Series - Fixed WireWound Resistors (Non-Inductive Optional)NegotiableMOQ: 5000 Pieces
-
KNP Series - 15W Fixed WireWound Resistors 0.01% (Non-Inductive Optional) for LED Illumination ApplicationNegotiableMOQ: 500 Pieces
-
KNP Series - 10W Fixed WireWound Resistors (Non-Inductive Optional) for LED Illumination ApplicationNegotiableMOQ: 500 Pieces
Brand Name
THUNDER
Model Number
CHR
Type
Fixed Resistor
Technology
Wirewound
Package Type
Throught Hole
Resistance
0.1R~50K OHM
Resistance Tolerance
5% 10%
Rated Power
400W
Temperature Coefficient
350~2000ppm
Operating Temperature
-55 ~ 155 Degree C
Specifications
400W Fixed High Power WireWound Resistors- Non-Inductive Optional
- Flat Type
- Ribbon Type
- Superior Anti-Heat
400W Fixed High Power WireWound Resistors (Non-Inductive Optional)
| TYPE | RESISTANT RANGE |
| QH 120W | 0.02Ω~ 4Ω |
| QH 150W | 0.03Ω~ 5Ω |
| QH 180W | 0.03Ω~ 6Ω |
| QH 225W | 0.04Ω~ 8Ω |
| QH 300W | 0.05Ω~10Ω |
| QH 450W | 0.06Ω~12Ω |
| QH 600W | 0.08Ω~15Ω |
| QH 750W | 0.1 Ω~20Ω |
| QH 850W | 0.2 Ω~25Ω |
| QH 1000W | 0.3 Ω~30Ω |
| QH 1500W | 0.4 Ω~35Ω |
| QH 2250W | 0.5 Ω~40Ω |
| QH 3000W | 0.7 Ω~50Ω |
Key Specifications/Special Features:
- Description:
- Strong terminals (4.5kg to 20kg/30 seconds)
- Resistance value unchanged after long-term use
- Multi-terminal types or adjustable type available
- Performance:
- Resistance temperature coefficient: +/-400, 260, 100ppm/
- degrees Celsius
- Short time overload +/- (2% +/- 0.05 ohms)
- Insulation resistance 500V 20M ohms minimum
- Voltage withstanding
- 1000V for 1 minute
- Key:
- Resistance range = R
- Dimensions (mm) = D
- CH 5W
- R: 0.1 to 5K ohms (650)
- D: 30 (L) x 12 (D) x 6 (d) x 17 (g) x 5 (W) x [40 (L1) x 45 (L2) for O type] x [45 (L1) for S type]
- CH 10W
- R: 0.1 to 10
- K ohms (1.2k)
- D: 45 (L) x 12 (D) x 6 (d) x 17 (g) x 5 (W) x [55 (L1) x 67 (L2) for O type] x [60 (L1) for S type]
- CH 15W
- R: 0.1 to 15K ohms (1.5k)
- D: 45 (L) x 15 (D) x 8 (d) x 19 (g) x 5 (W) x 4.1 (f) x [55 (L1) x 67 (L2) for O type] x [60 (L1) for S
- type]
- CH 20W
- R: 0.1 to 20K ohms (2.2k)
- D: 50 (L) x 19 (D) x 10 (d) x 20 (g) x 5 (W) x 4.1 (f) x [60 (L1) x 77 (L2)
- for O type] x [68 (L1) x 76 (L2) x 38 (h) for S type] x [76 (L1) x 86 (L2) x 38 (h) for OS type]
- CH 30W
- R: 0.1 to 30K
- ohms (3.3k)
- D: 75 (L) x 19 (D) x 10 (d) x 20 (g) x 5 (W) x 4.1 (f) x [85 (L1) x 105 (L2) for O type] x [93 (L1) x 101 (L2) x 38 (h)
- for S type] x [101 (L1) x 111 (L2) x 38 (h) for OS type]
- CH 40W
- R: 0.1 ohm to 40K (4.9k)
- D: 90 (L) x 19 (D) x 10 (d)
- x 20 (g) x 5(W) x 4.1 (f) x [100 (L1) x 115 (L2) for O type] x [108 (L1) x 116 (L2) x 38 (h) for S type] x [116 (L1) x 126 (L2) x 38
- (h) for OS type]
- CH 50W
- R: 0.1 to 50K ohms (5.6k)
- D: 75 (L) x 30 (D) x 16 (d) x 32 (g) x 8 (W) x 5 (d1) x 5.2 (f) x
- [89 (L1) x 110 (L2) for O type] x [100 (L1) x 117 (L2) x 58 (h) for S type] x [115 (L1) x 131 (L2) x 58 (h) for OS type] x [130(L1) x
- 146 (L2) x 58 (h) for OS type]
- CH 60W
- R: 0.1 to 60K (7k)
- D: 90 (L) x 30 (D) x 16 (d) x 32 (g) x 8 (W) x 5 (d1) x 5.2
- (f) x [104 (L1) x 120 (L2) for O type] x [115 (L1) x 132 (L2) x 58 (h) for S type] x [130 (L1) x 146 (L2) x 58 (h) for OS type]
- CH 80W
- R: 0.1 to 80K (10k)
- D: 115 (L) x 30 (D) x 16 (d) x 32 (g) x 8 (W) x 5 (d1) x 5.2 (f) x [129 (L1) x 150 (L2) for O type
- ] x [140 (L1) x 157 (L2) x 58 (h) for S type] x [155 (L1) x 171 (L2) x 58 (h) for OS type]
- CH 100W, CH 120W, CH 150W, CH 200W, CH 250W, CH 300W, CH 400W, CH 500W, CH 600W, CH 750W, CH 1000W, CH 1500W, CH 2000W are also available
Packaging & Shipping
Standard Packing : Plastic Pallet wrapped by water proof plastic film
Optional Packing : Strong Metal Pallet with wood cover to protect products withour damages during transportation.
