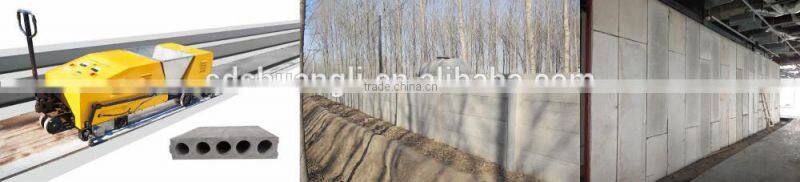

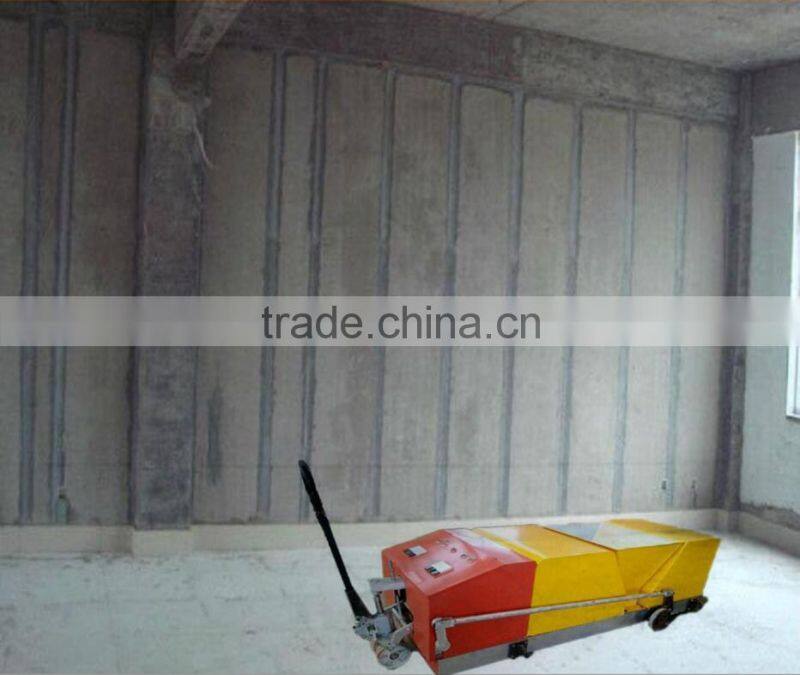

Shuangli lightweight precast concrete hollow core slab molding machine; prestressed hollow core wall panel extruder
Main Features for the QT4-20 concrete lightweight wall panel making machine
| Materials: The extruder could use different kinds of light weight materials, such as cement, sand, fly ash, slag(cinder), ceramsite (haycite), pearls tone, etc. |
| The spare parts such as tubes, side plate, are welded with first-class YG alloy, greatly improved the anti-fraying ability. |
| 2~3mm steel wires are put inside the panel before producing. |

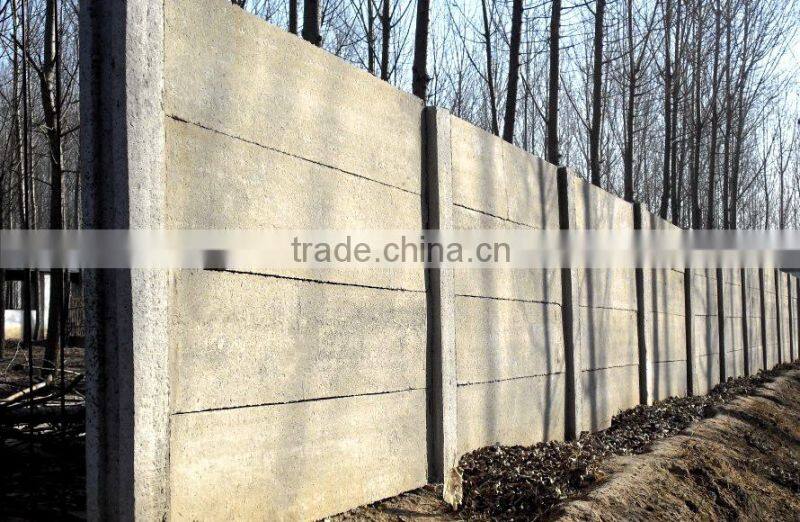

| The finished panels could be used as fence panel, interior wall panel, and exterior wall panels too. |
| SL Brand HQJ Lightweight Wall Panel Extruder is awarded with certificate of utility model patent with the patent No.: ZL 2014 2 0069954.3. |
Regular Lightweight Wall Panel Machine Models
Model |
width (mm) |
thickness (mm) |
Holes Dia |
Speed (m/min) |
Motor Power (KW) |
Vibrator (KW) |
Dimension (m) |
Weight (kg) |
80*600 |
595±2 |
78±1 |
8xΦ43 |
>=1.6 |
4 |
0.8 |
2.5*0.95*0.75 |
1260 |
90*600 |
595±2 |
88±1 |
7xΦ58 |
>=1.6 |
5.5 |
0.8 |
2.5*0.95*0.70 |
1260 |
100*600 |
595±2 |
98±1 |
7xΦ62 |
>=1.6 |
5.5 |
0.8 |
2.5*0.95*0.75 |
1400 |
120*600 |
595±2 |
118±1 |
5xΦ82 |
>=1.6 |
5.5 |
0.8 |
2.55*0.95*0.75 |
1650 |
150*600 |
595±2 |
148±1 |
4xΦ100 |
>=1.6 |
5.5 |
0.8 |
2.65*1.0*0.8 |
1650 |
200*600 |
595±2 |
198±1 |
3xΦ145 |
>=1.6 |
7.5 |
3 |
2.65*1.0*0.85 |
1680 |
Applications for the concrete lightweight wall panels
SL(Shuangli) Building Materials Equipment Co., Ltd was founded in 1995, located in Dezhou, Shandong, China.
Our main products are hollow core slab extruder, lightweight wall panel extruder/mold, concrete fence post extruder, concrete lintel/beam/pillar extruder, etc. Technically, we could manufacture extruder for all the precast concrete products. All you have to do is let us know your exact requirement with details.
We’ve been helping with large national and civil architecture project with our newest precast technology and reliable experienced workers.
The Best Supplier Concrete Lightweight Wall Panel Forming Machine
