TDGC2-15KVA AC Manual Voltage Regulator

TDGC2-15KVA AC Manual Voltage Regulator thumbnail-1
TDGC2-15KVA AC Manual Voltage Regulator thumbnail-2
TDGC2-15KVA AC Manual Voltage Regulator thumbnail-3
TDGC2-15KVA AC Manual Voltage Regulator thumbnail-4
TDGC2-15KVA AC Manual Voltage Regulator thumbnail-5
TDGC2-15KVA AC Manual Voltage Regulator photo-1

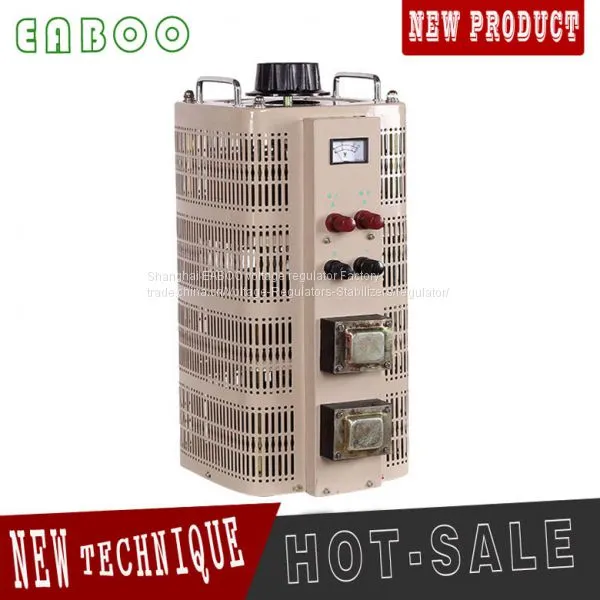

TDGC2-15KVA AC Manual Voltage Regulator photo-2

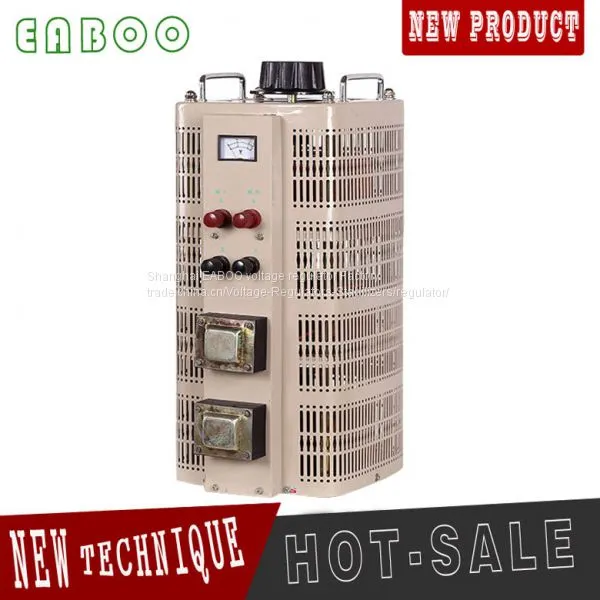

TDGC2-15KVA AC Manual Voltage Regulator photo-3

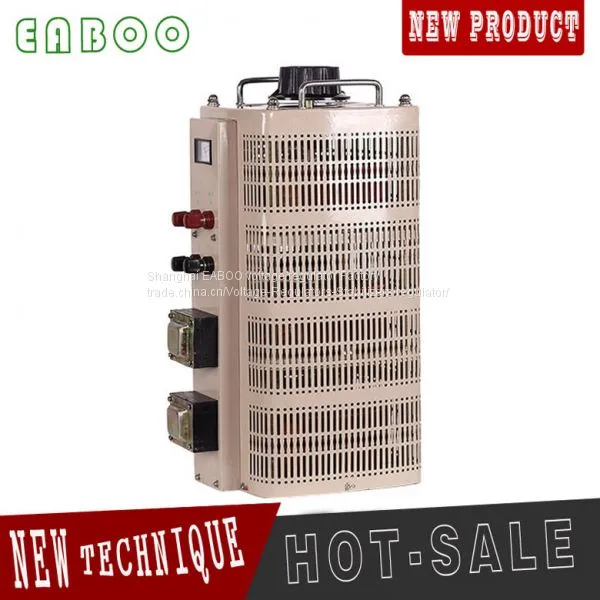

TDGC2-15KVA AC Manual Voltage Regulator photo-4

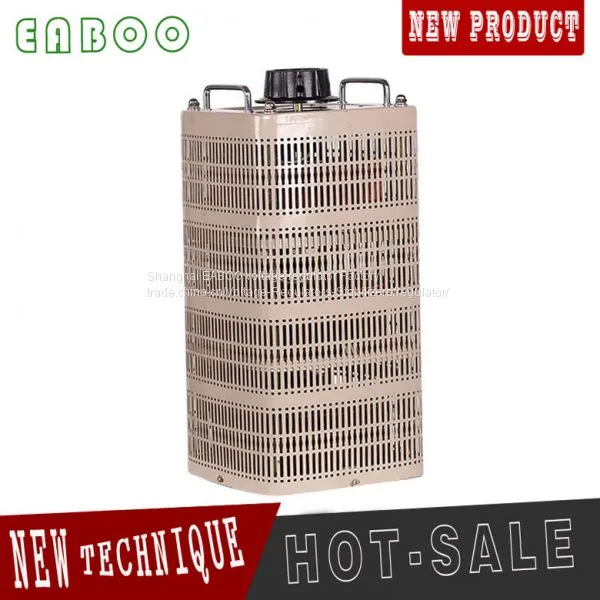

TDGC2-15KVA AC Manual Voltage Regulator photo-5
US$ 15 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EABOO
Place of Origin:
China
Model Number:
TDGC2-15KVA
Contact Supplier Request Quote Chat Now
Shanghai EABOO Voltage Regulator Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EABOO
Place of Origin China
Model Number TDGC2-15KVA
Usage Other, TDGC2
Phase Single Phase
Current Type AC

Product Description



TDGC2 Series Contact Type Voltage Regulator belongs to the Adjustable Variac Autotransformer structure. The coil wound evenly on the toroidal core, the carbon brush holder installed in the spindle, under the pressure of spring, the carbon brush contacts the coil surface closely. Adjusting the spindle to drive the carbon brush holder to make the carbon brush move on the coil surface and change the carbon brush contact position, that is to say, changing the variac primary and secondary winding turns ratio, which make the output voltage smoothly adjust with the adjustable range.



Technical Parameters



Capacity/Power

500VA-30KVA

(Other power can be customized)

Input   Voltage

220VAC

(Other   voltage can be customized)

Output Voltage

0-250VAC

(Other range can be customized)

Max. Output Current

Power in   KVA*1000/Max. Output Voltage

Working Frequency

50Hz/60Hz±5%

Efficiency

≥98%

Waveform   Distortion

No

Ambient Temperature

-15°C to +45°C

Altitude

≤1000m

Relative Humidity

≤95%

Insulation Class

A

Temperature Rise

℃

Dielectric Strength

No   damage at 2000V for 1 minute

Insulation Resistance

≥5MΩ

Display

Analogue Meter (Optional: LED or LCD Screen)

Installation

Indoor and floor mounted

Protection Degree

(IP Rating)

IP20

Cooling-Down Method

Dry type air cooled




Product Tags: Manual voltage regulator , AC voltage regulator , voltage regulator
