JJW-15KVA Avr AC Automatic Voltage Regulator

JJW-15KVA Avr AC Automatic Voltage Regulator thumbnail-1
JJW-15KVA Avr AC Automatic Voltage Regulator thumbnail-2
JJW-15KVA Avr AC Automatic Voltage Regulator thumbnail-3
JJW-15KVA Avr AC Automatic Voltage Regulator thumbnail-4
JJW-15KVA Avr AC Automatic Voltage Regulator thumbnail-5
JJW-15KVA Avr AC Automatic Voltage Regulator photo-1

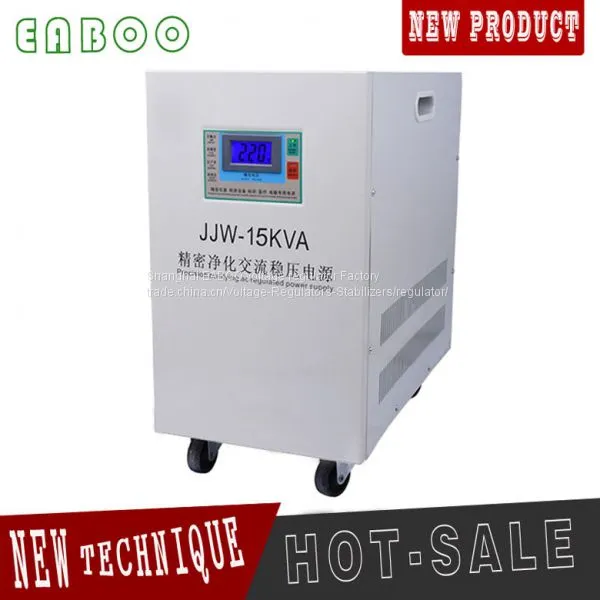

JJW-15KVA Avr AC Automatic Voltage Regulator photo-2

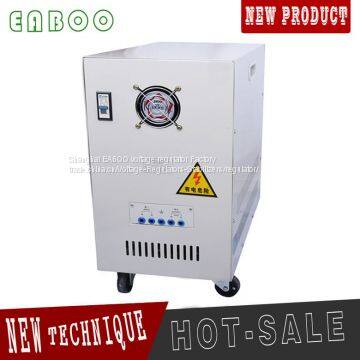

JJW-15KVA Avr AC Automatic Voltage Regulator photo-3

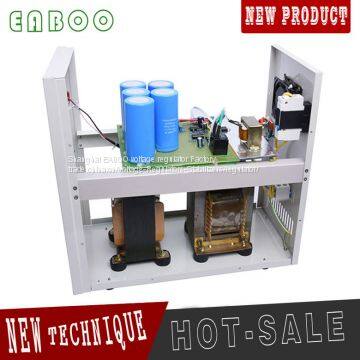

JJW-15KVA Avr AC Automatic Voltage Regulator photo-4

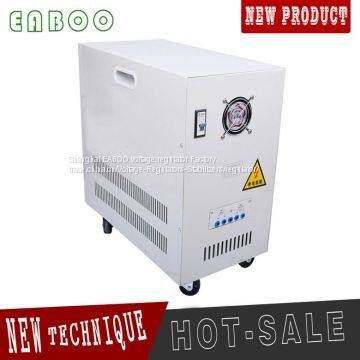

JJW-15KVA Avr AC Automatic Voltage Regulator photo-5
US$ 50 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EABOO
Place of Origin:
China
Model Number:
JJW-15KVA
Contact Supplier Request Quote Chat Now
Shanghai EABOO Voltage Regulator Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EABOO
Place of Origin China
Model Number JJW-15KVA
Usage Other, JJW
Phase Single Phase
Current Type AC

Product Description



JJW Series Single Phase Precise And Purified Automatic Voltage Stabilizer & Regulator adopts the international advanced sine energy distribution formula of power source regulation technology, it’s main circuit is parallel composed by sine energy distributor and large capacity LC filter, when the output voltage changed caused by input voltage or load current fluctuation, the PCB control triac conduction angle to change current, then change the compensation voltage value and phase position, finally make the output voltage stable, meanwhile, LC filter will do waveform-correction to the output voltage and absorb grid noise, peak interference.



Technical Parameters



Capacity/Power

1000VA-40KVA

Input   Voltage

175-260V

(Other   voltage range can be customized)

Output Voltage

220V

(Optional: 110V/127V/200V/230V/240V, etc)

Regulation Accuracy

±0.5%

Output Rated Current

Power in KVA*1000/Output Voltage

Bypass current

Rated Current * 0.8 (Ratio 0.8 is the   normal power factor)

Working Frequency

50Hz/60Hz±5%

Source Voltage Effect

±0.5%

Load Effect

±1%

Response Time

≤50ms

Load Power Factor

0.8

Efficiency

≥98%

Peak   Absorption

Input 3000V/3μs peak, output residual

Ambient Temperature

-10°C to +40°C

Altitude

≤1000m

Relative Humidity

≤90%

Dielectric Strength

No   damage at 1500V for 1 minute

Insulation Resistance

≥5MΩ

Waveform Distortion

Nil

Acoustic Noise

≤45dBA

Display

Analogue Meter (Optional: LED or LCD Screen)

Over Voltage Protection

246±4V   (Phase Voltage)

Installation

Indoor   and floor mounted

Protection Degree

IP20

Cooling

By convection
