Automatic blister paper card filling and sealing machine for battery/toothbrush/etc
- 6 Set / Sets per Month
- Ningbo/Shanghai
- T/T
- Blister Cutting Machine
- Automatic capsule hot sealing blister packing machine tablet packaging machine supplier
- Full Automatic Pill And Blister Packing Equipment Blister Packs For Pills Factory Price
- High Quality Capsule Tablet Blister Packing Machine Automatic Blistering Of Tablets And Capsules
- Small Fully Automatic Jam Peanut Butter Blister Packing Machine For Liquid
- high quality essence 260 liquid blister packing machine blister pack packaging machinery
Product Details
Condition: | New | Application: | Commodity | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Voltage: | 380V 50HZ | Power: | 5.5KW |
Place of Origin: | Zhejiang, China | Brand Name: | JINDE | Model Number: | JD-250M |
Dimension(L*W*H): | 4000x750x1650mm | Weight: | 2300kg | Certification: | CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
filling and sealing machine1. CE, GMP
2. PLC control
3. Double program
4. Easy Changeover
Automatic blister paper card filling and sealing machine for battery/toothbrush/etc
Usuage:
Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.
For example :
the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output
Main Technical Parameter
Punching Frequency | 25time/min |
Adjustable Scope of Travel | 30-120 mm |
Max Forming Depth | 27-28 mm |
Max Forming Area | 240x160 mm |
Total Power | 380V 50Hz 5.5Kw |
Specificationa of Packing Material(PVC) | 250x0.25(0.15~0.50mm) |
Specificationa of Packing Material(PTP) | 250x0.02mm |
Air-compressor | More Than 0.22m3/min |
Pressure | 0.5~0.7Mpa |
Machinery Dimension | 4000x750x1650mm |
Weight | 2200Kg |

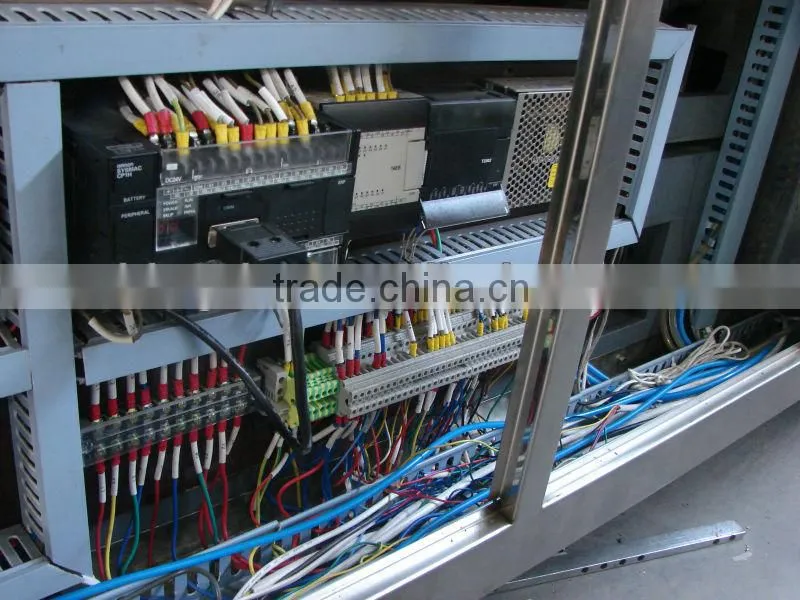

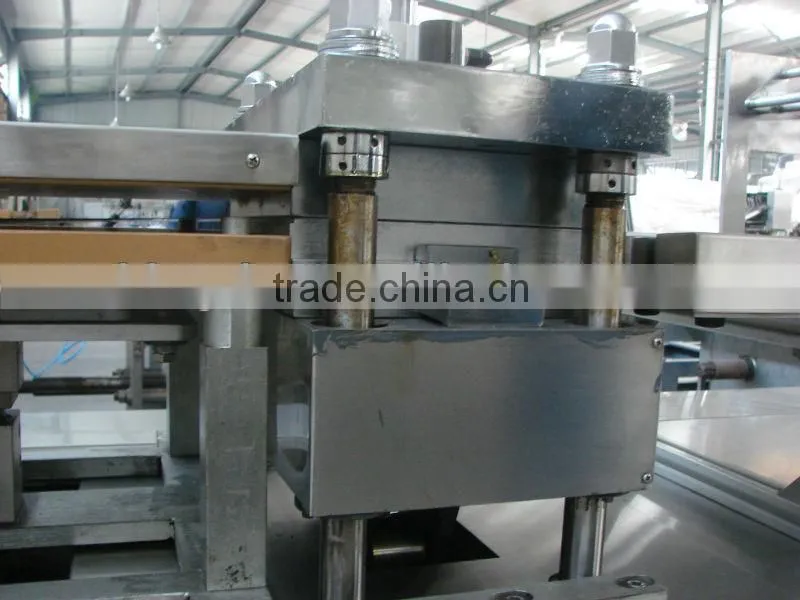

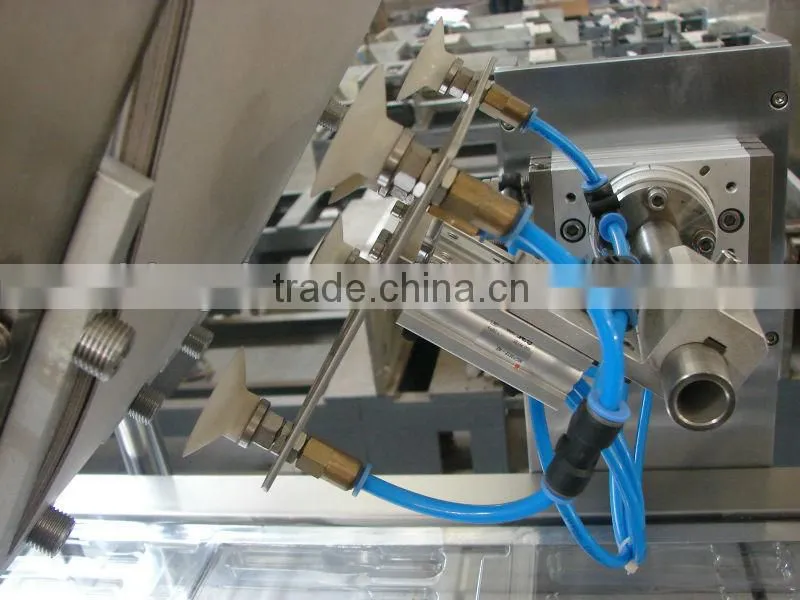

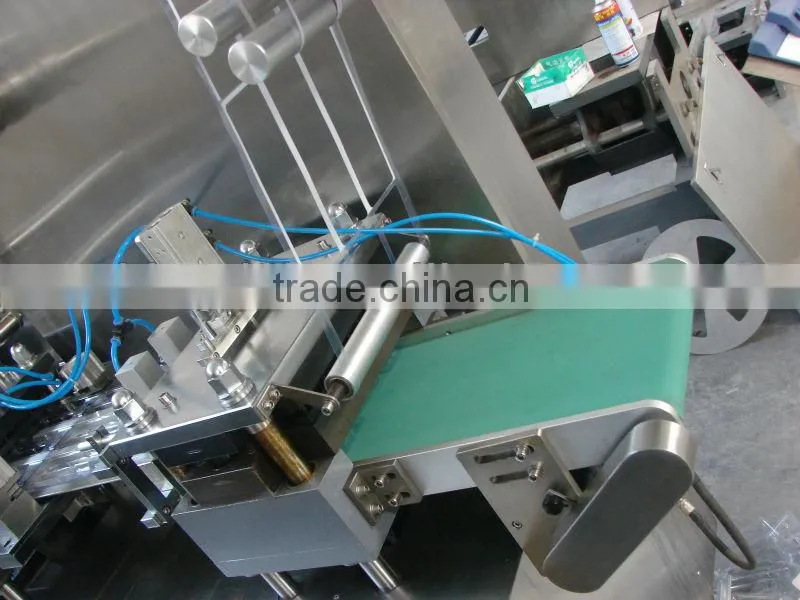

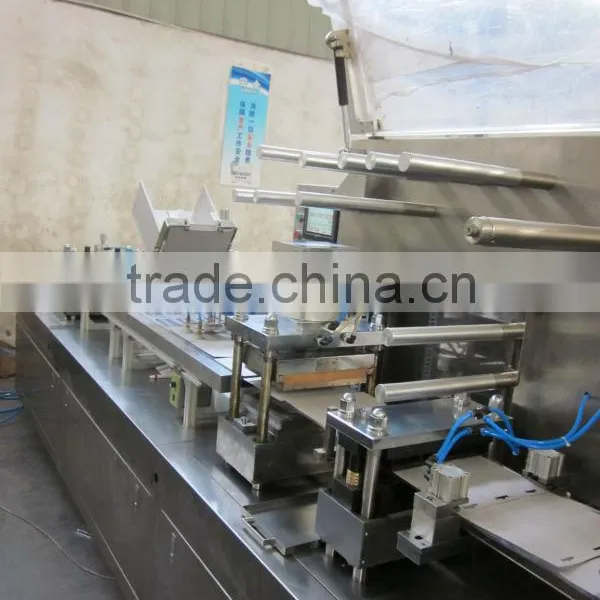

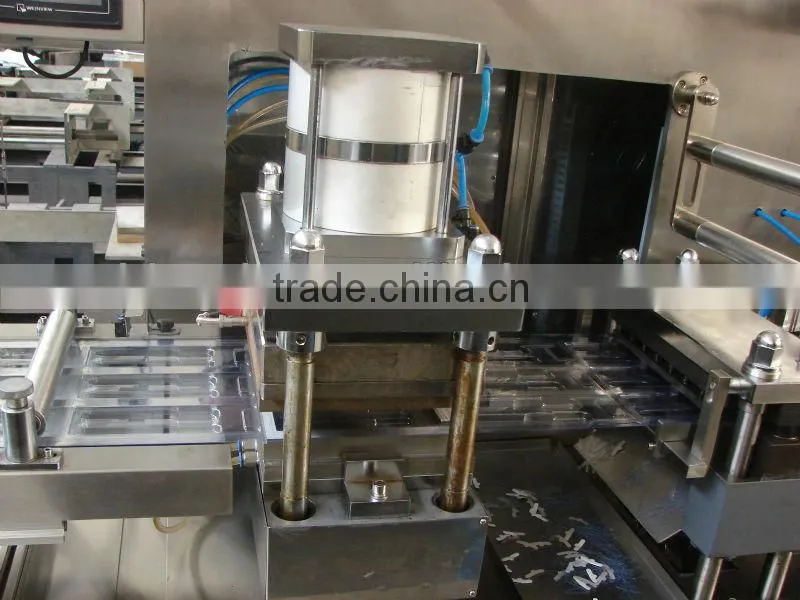

Some Part of this Machine:

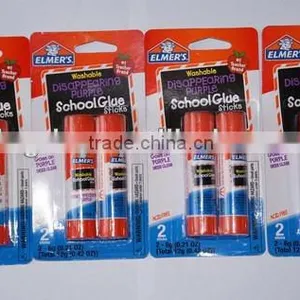

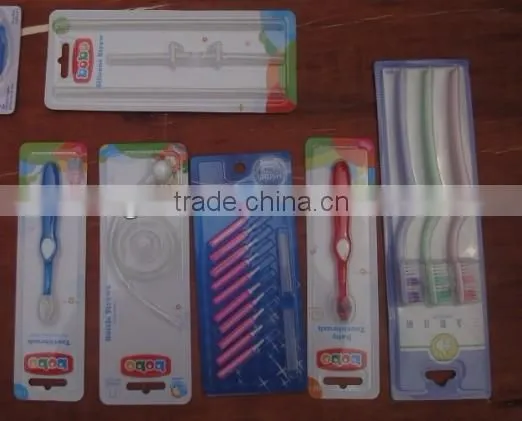

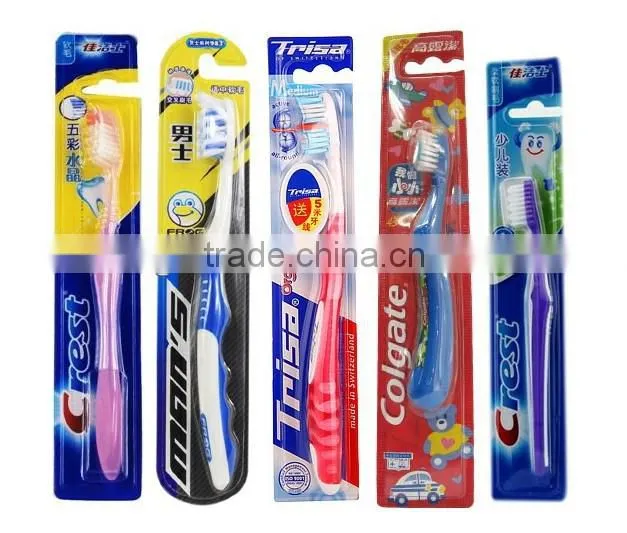

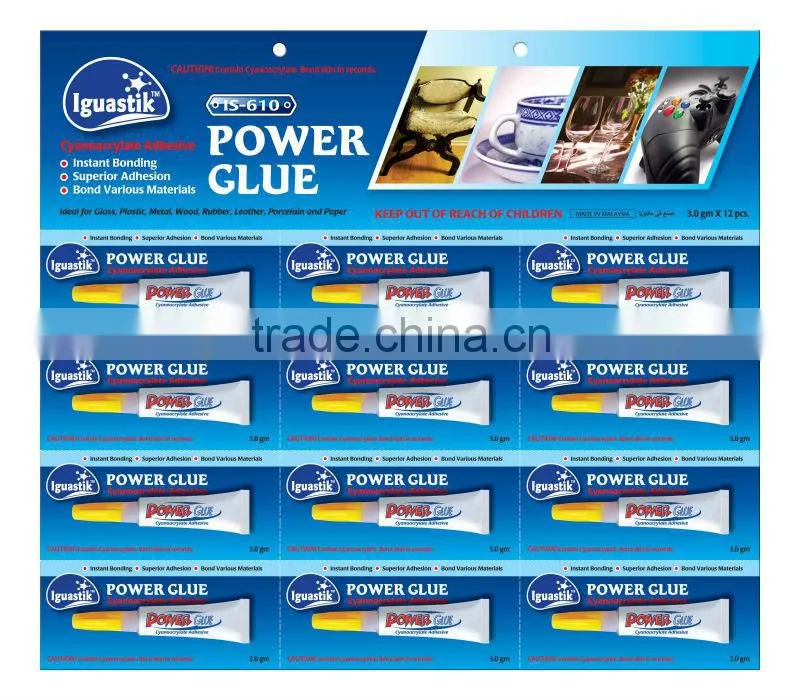

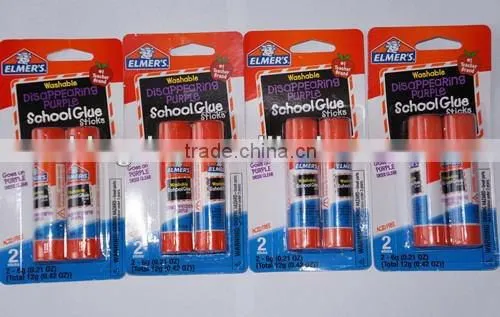

Samples:
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
