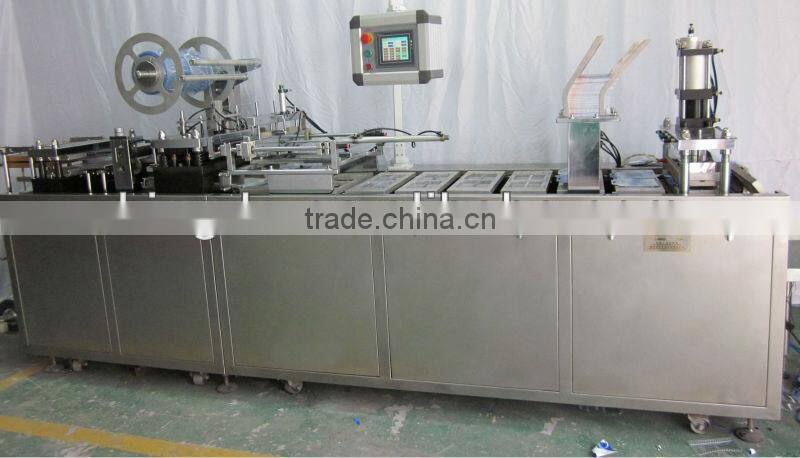

Fully Automatic ,high Capacity,high Quality, Papercard Plastic Solid Glue Packing Machine

Fully Automatic ,high Capacity,high Quality, Papercard Plastic Solid Glue Packing Machine photo-1
Fully Automatic ,high Capacity,high Quality, Papercard Plastic Solid Glue Packing Machine photo-2
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Automatic Grade Automatic
Driven Type Other, Electric and pneumatic
Voltage 380V 50HZ
Power 5.5KW
Place of Origin Zhejiang, China
Brand Name JINDE
Model Number JD-500B
Dimension(L*W*H) 3750x920x1650mm
Weight 2100kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

solid glue packing machine
1.Save labor
2.Save material
3.Easy Changeover
4.Double program

            Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine



Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine



Usuage:



Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.



For example :



the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.



Working process:



Placed PVC roll­­PVC heating—Plastic blister trays forming——Servo traction——PVC plastic punching——PVC edge material collecting——transferring into sealing recycle molding——Manual feeding/(Battery add feeder)——Automatic paper card placing——blister & card heat sealing——Products output



Main Technical Parameter



Model

DZP-500B

Punching frequency

10-28 times/min

Travel range

40-130mm

Air pressure

0.5-0.8Mpa

Air flow

≥0.5m³/min

Total power

380V 50Hz 7KW

Main motor power

1.5KW

Maximum specification of PVC

480×130mm

(design according to customer requirements is also available)

Maximum specification of paperboard

500×150mm

(design according to customer requirements is also available)

Outline dimensions

3750×920×1650mm(L×W×H)

Machine weight

2100Kg



Some Part of this Machine:

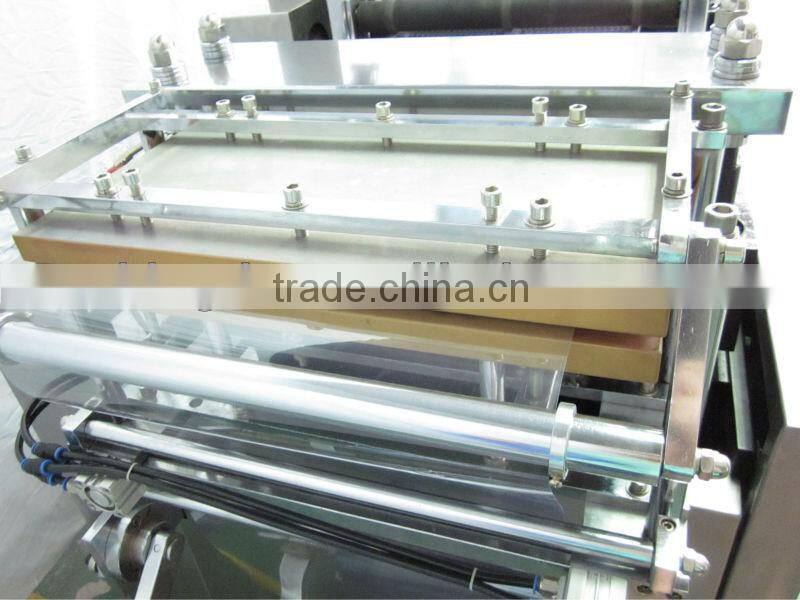

Pre-heating station



Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine



Blister forming station

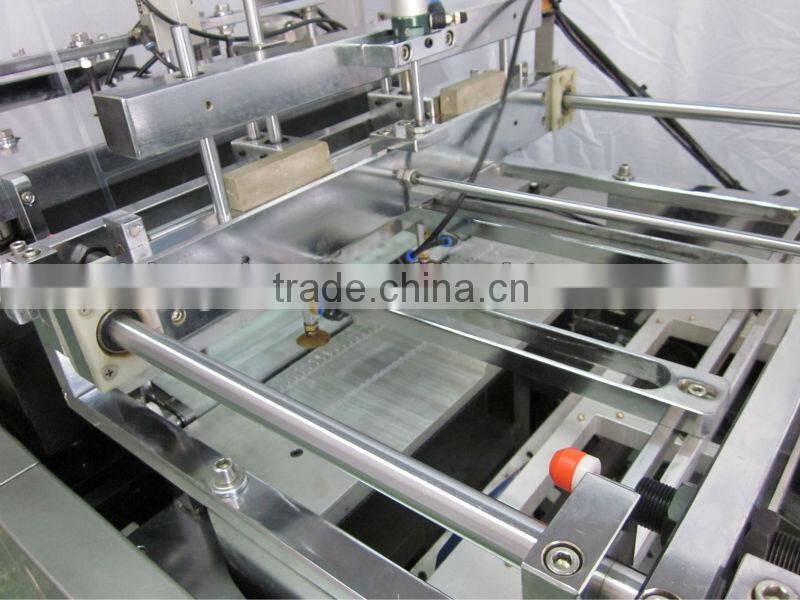

Servo traction (Mechanical hand picking blisters into sealing molds)



Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine

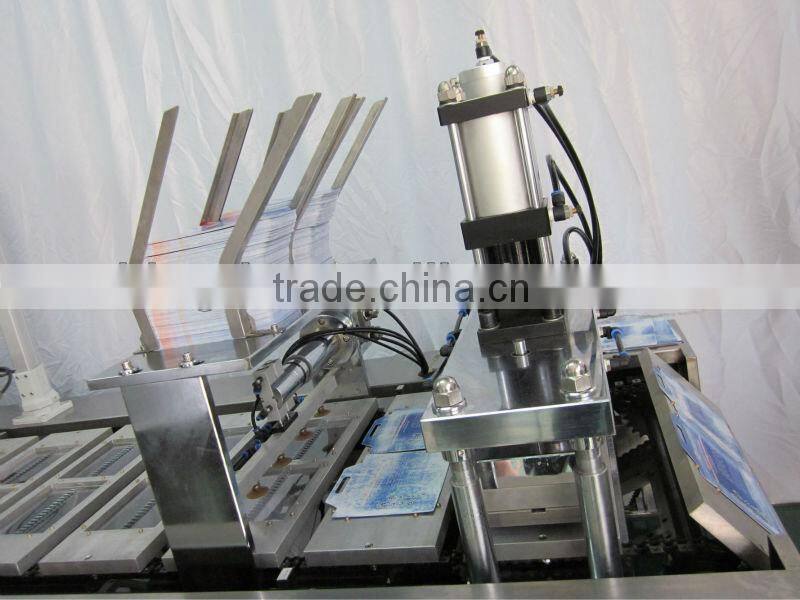

Paper and plastic sealing station

Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine











Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine

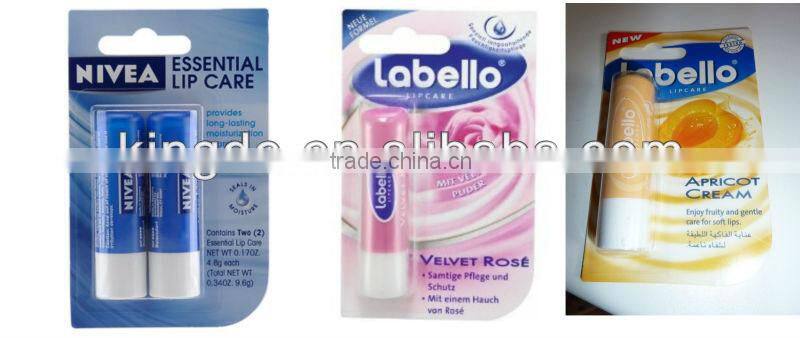

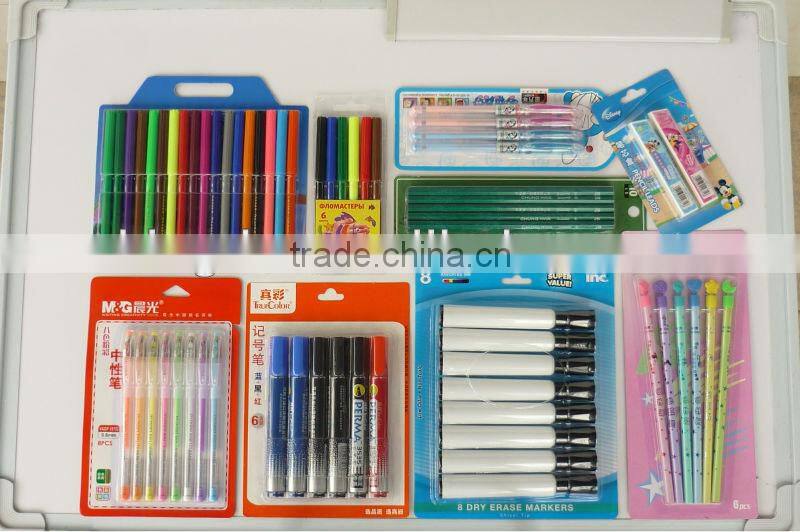

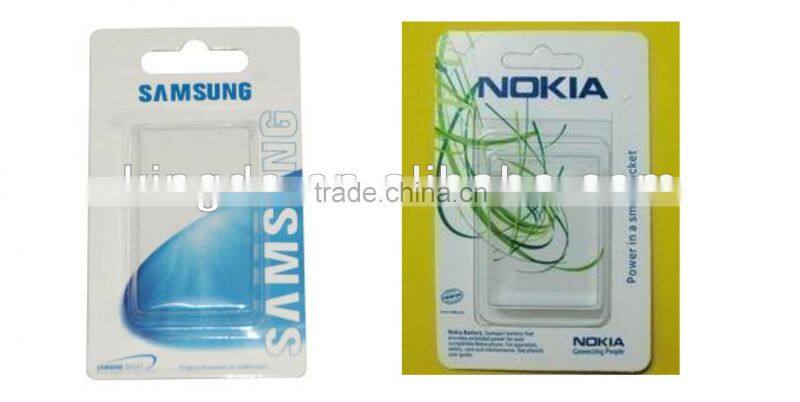

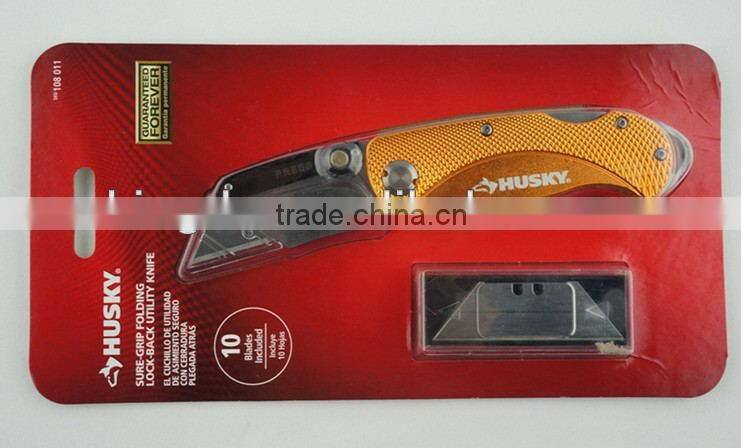

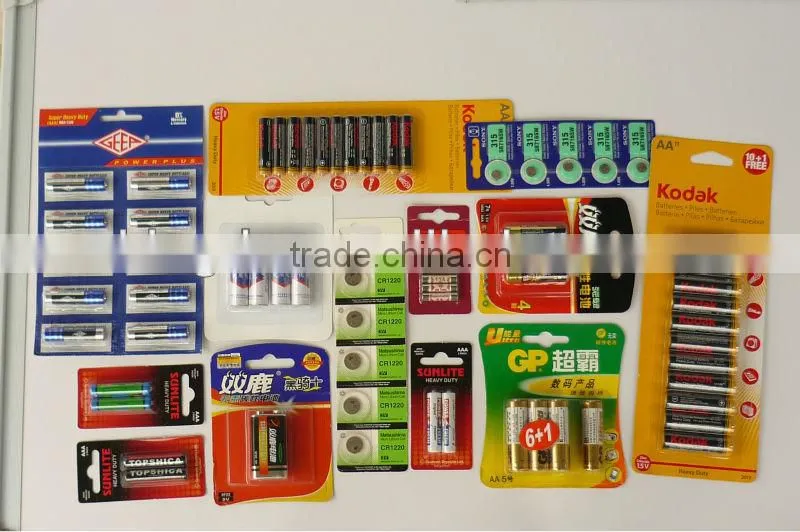

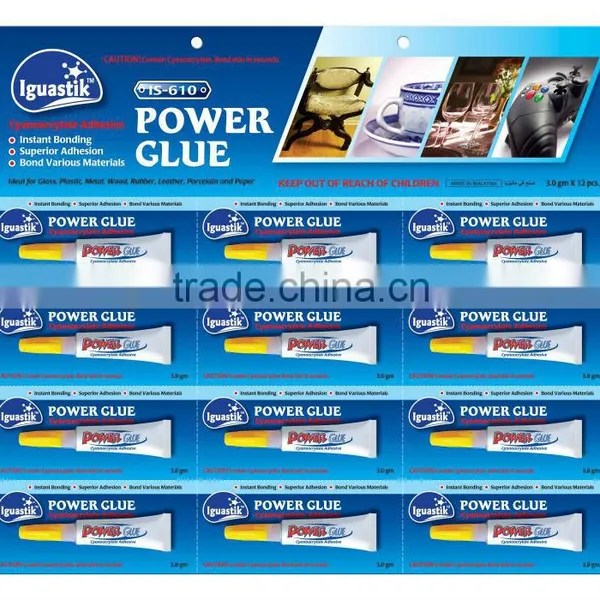

 Samples:



Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine



Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine





Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine







Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine



Fully automatic ,high capacity,high quality, papercard plastic solid glue packing machine





We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
