Main Application
The single-type automatic tablet press equipment used to abnormity and normal tablet pressing ,which suitable for the small-scale industries such as laboratory ,small-scale production processing or other small enterprises and etc
Feature
- The machine designed for fully enclosed structure ,the has the advantage of good appearance in design, small floor area ,high efficiency, low energy consumption and etc
- The material contact parts is made of stainless steel ,the surface of turntable deal with polished to prevent cross pollution which meet the GMP requirement
- It is equipped with Plexi-glass perspective window for tablet producing observation .Each perspective window could be fully open and easy for cleaning and maintenance
- With the over-loading device and keep the safety production
Technical parameters
Model |
ZP-5,7,9 A |
ZP-5,7,9 B |
Die Amount |
5,7,9 stations |
5,7,9 stations |
Max Pressure |
60kn |
60kn |
Filling Depth |
17mm |
17mm |
Pressure Diameter |
13mm |
20mm |
Tablet Thickness |
7mm |
7mm |
RPM |
32(r/min) |
32(r/min) |
Capacity |
9600/13400/17000(p/h) |
9600/13400/17000(p/h) |
Power |
1.5kw |
2.2kw |
Overall Dimension |
750×550×1200 mm |
750×550×1200 mm |
weight |
300kg |
300kg |
ZP-11F rotary tablet press(Non-standard)
Technical parameters
Die Amount |
11 stations |
Max Pressure |
60kn |
Max Filling Depth |
17mm |
Max Pressure Diameter |
13mm ( Irregular 16mm) |
Max Tablet Thickness |
7mm |
RPM |
32(r/min) |
Capacity |
21000(p/h) |
Power |
1.5Kw 380V 50HZ (220V 60HZ) |
Overall Dimension |
750×550×1200 mm |
weight |
300kg |

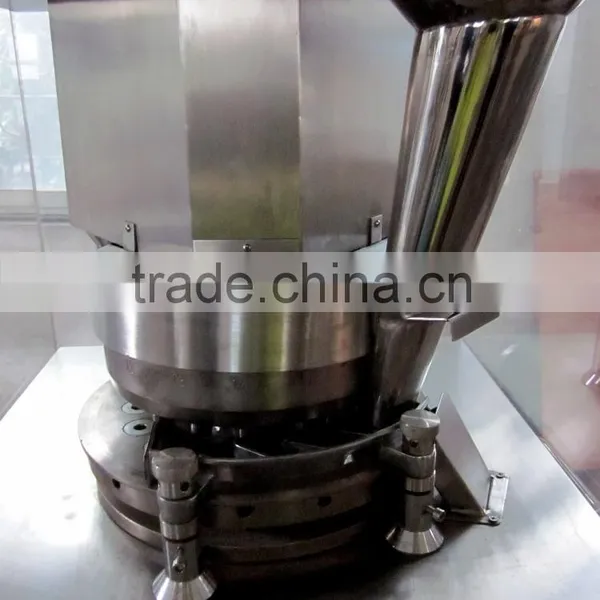

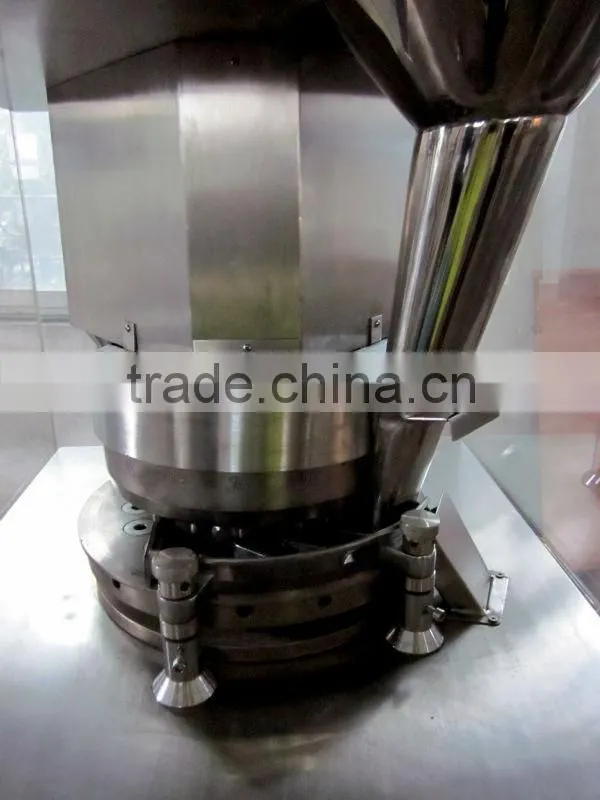

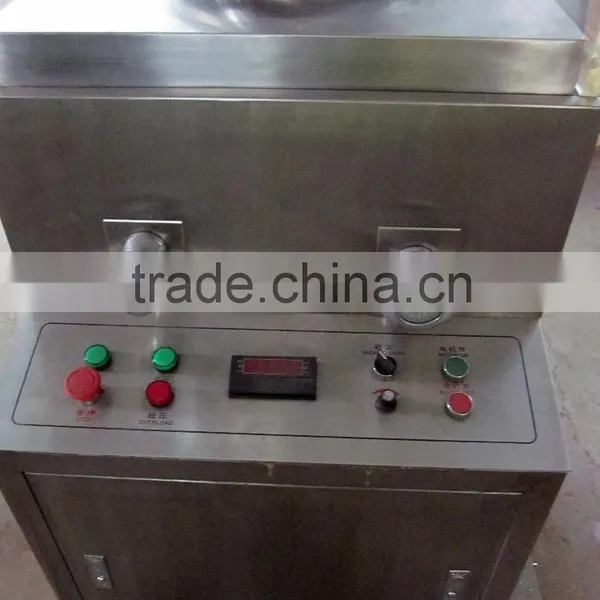

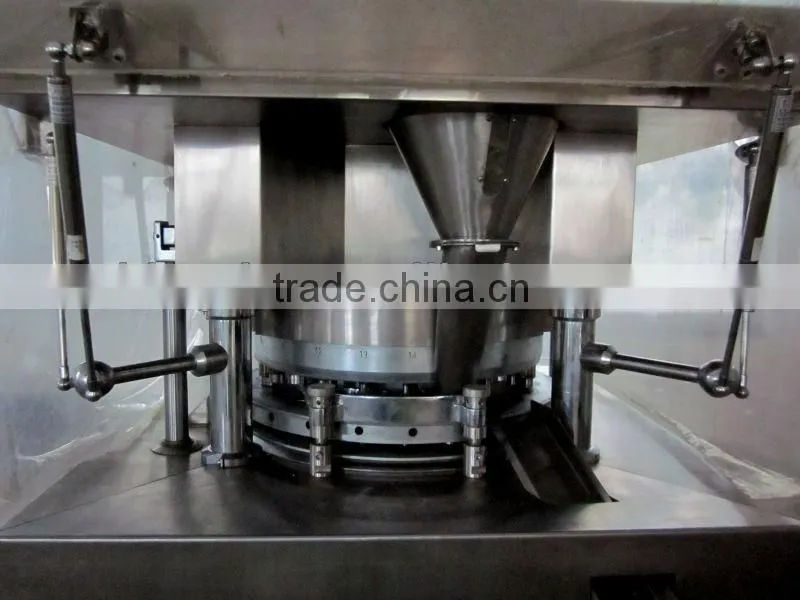

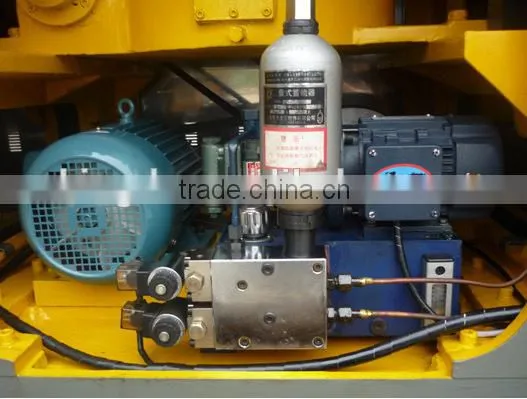

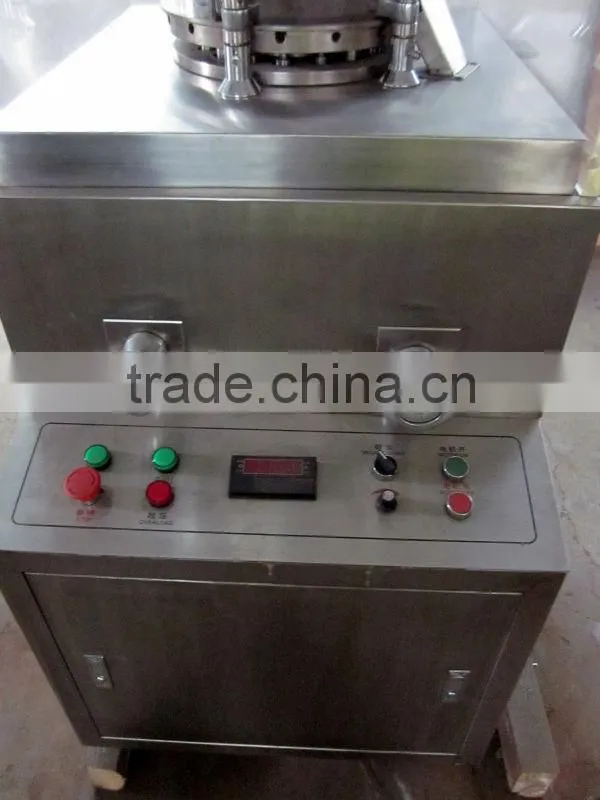

Some parts of the machine
Samples
