Specifications
Butter Packing Machine1. CE, GMP
2. PLC control
3. Liquid packing machine for butter and jam
4. Cheap

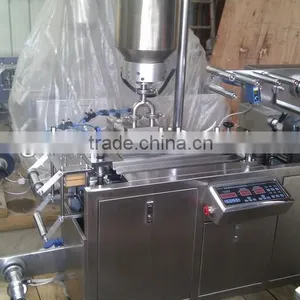

Small Butter Packing Machine/Sauce Packing Machine
Usuage:
1. This machine is suitable for packing the liquid like chocolate, butter and jam etc.
2. This machine can be linked to produce with boxing machine and pillow packing machine
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output
Feature:
1. All materials contact parts are in S.S.316L, The main body of the machine is Fabricated out of SS 304, Meet the GMP standard.
2. With automatic liquid feeder.
3. Board-shape mould, forming with air pressure, being suitable for standard of any former.
4. Compact and simple structure.
Main Technical Parameter
Punch frequency |
10-33times /min |
Packing efficiency |
2400 plate/h |
Max forming area and depth |
70X100X15mm(Depth can be designed according to customer requirements) |
Standards Board |
80X57mm(Can be designed according to customer requirements) |
Standard adjustable range of stroke |
30-80mm(Can be designed according to customer requirements) |
Air pressure |
0.6-0.8Mpa |
Power supply |
380V/220V 50Hz 3.8Kw |
Main motor power |
0.75Kw |
PVC |
0.15-0.5X80mm |
PTP aluminium foil |
0.02-0.035X80mm |
Dialyzingpaper |
50-100gX80mm |
Cooling |
Tap water or recycled wate |
Overall dimension |
1600X560X1450mm(LXWXH) |
Machine weight |
450Kg |
Noise indicators |
≤75dBA |
Samples:
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
