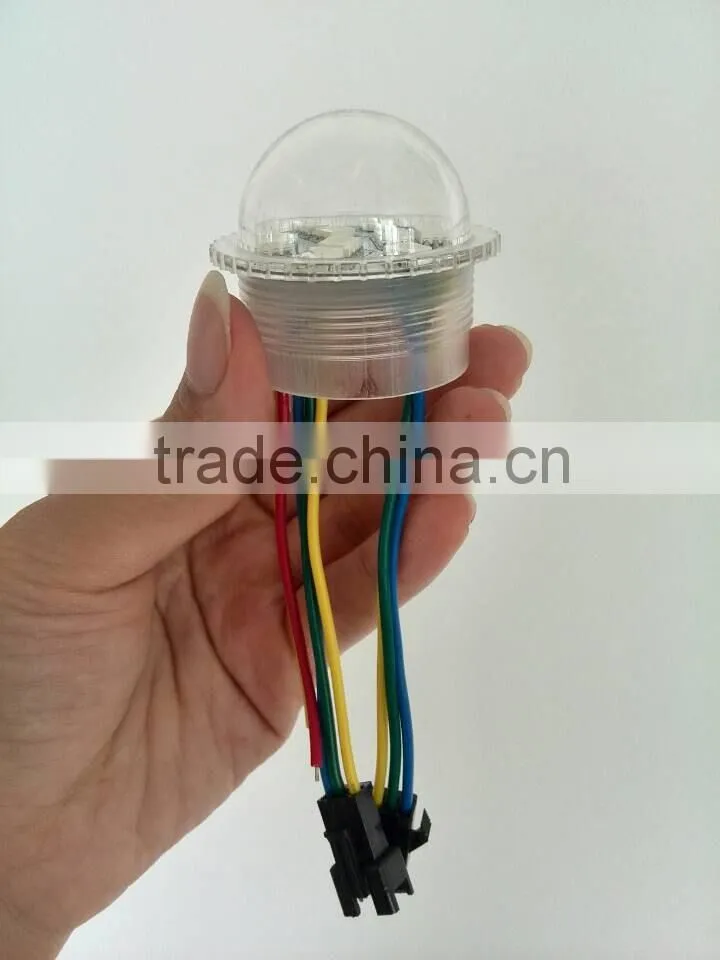

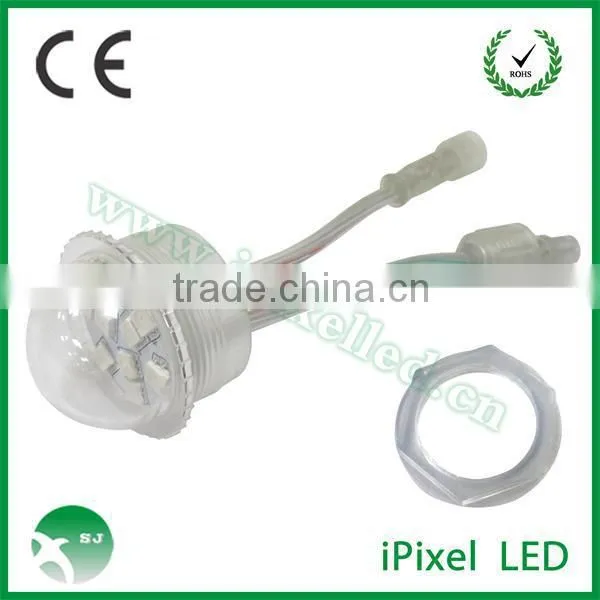

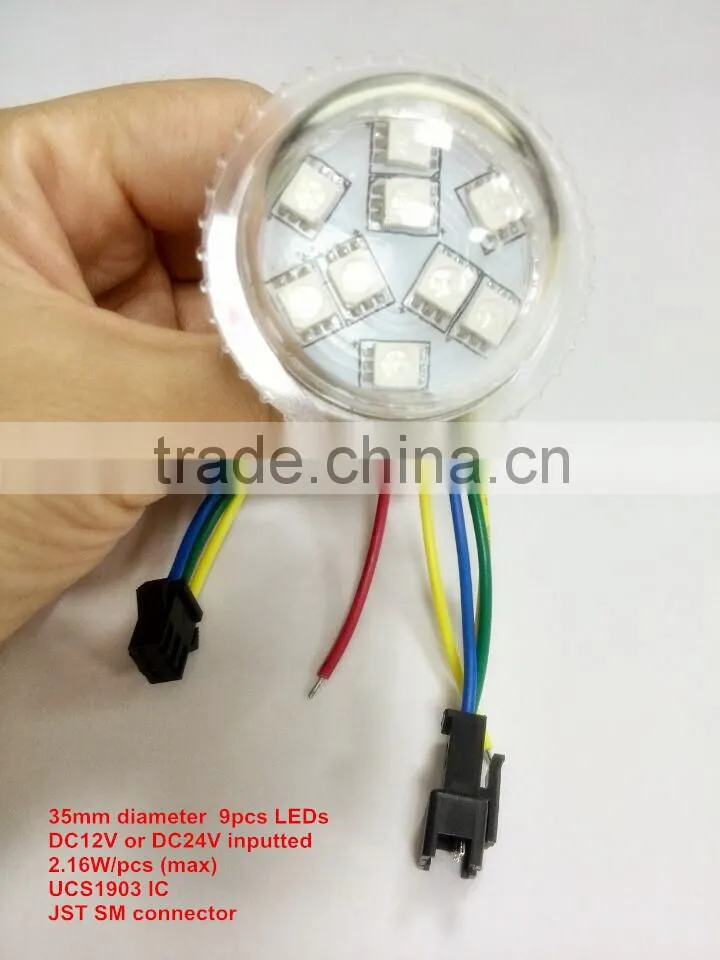

dc12v 9led stage lights 35mm led pixel lights led pixel dmx lights
Specifications
6pcs SMD5050 RGB LED
12V / 24V 35mm LED RGB pixel point lights with 6 leds inside
SD card & Ledwalker & DMX
CE & RoHS
2 year
24v 6 LEDs led Pixel Point RGB module lights -6 pcs SMD 5050 RGB
RGB Pixels are digitally-controllable lights you can set to any color, or animate
Each RGB camaleon led LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 35mm drill hole in any material up to 1.5mm/0.06" thick
They're typically used to make outdoor signs. Compared to our other LED dots
The pixels are connected by a 3-conductor cable. Blue is +12V / 24V, Yellow is GND, Green is DATA
Data is shifted down from one pixel to the next so that you can easily
connect to the strand or attach more onto the end.
feature:
I SD controller
l Programable by Software
l Individually Control
l Conformal Coating,PVC glue protection
l IP66, Water-proof protection
l Easy installation (punching 35mm hole on metal panel)
l 12V / 24V 35mm LED RGB pixel point lights with 6 leds inside .
Specification:
Model NO. |
SJ-356ICRGB |
IC chip |
UCS1903 |
Power Consumption |
1.44W |
Work Voltage |
DC 12V / 24V |
Beam Angle |
≥120 |
LED Quantity |
6 PCS SMD 5050 |
Color |
Full color (ICRGB) |
Dimension |
35*40*43mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
