Specifications
frosted Case/Clear Caseeasy connection with 3Pin JST SM connector
programable
26mm RGB LED pixel light
RGB Pixels are digitally-controllable lights you can set to any color, or animate
Each RGB LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 26mm drill hole in any material up to 1.5mm/0.06" thick
They're typically used to make outdoor signs. Compared to our other LED dots

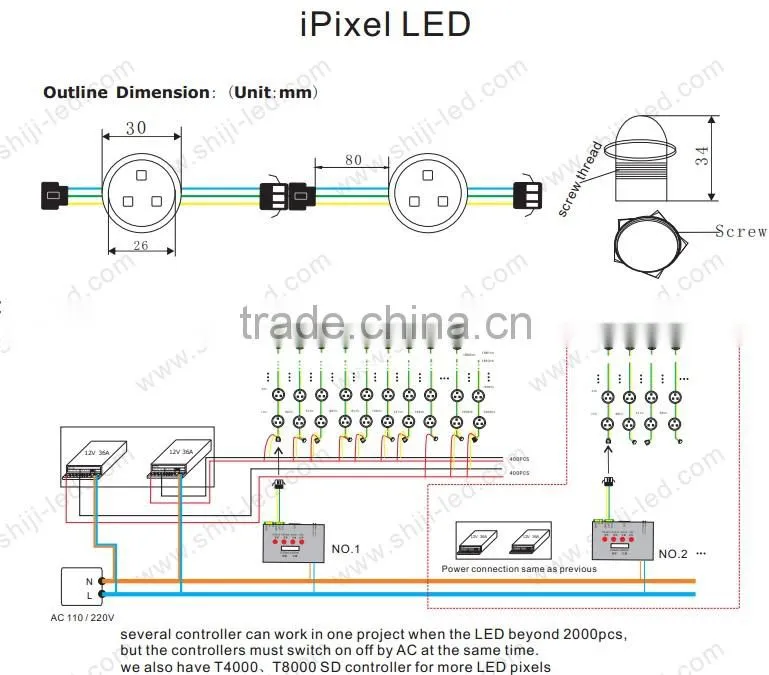

The pixels are connected by a 3-conductor cable. Blue is +12V, Yellow is Ground, Green is Data
Data is shifted down from one pixel to the next so that you can easily
connect to the strand or attach more onto the end.
| P/N | Size/mm | LED | IC/Qty | LED Qty/Module | Luminous(MCD) | View Angle | Voltage | Wattage | IP Rate |
| SJ-IC219 | 26 | RGB5050 | UCS2903 | 3 | R:2100,G:5100:B:1800 | 140 | DC12V | 0.72W/PCS | 65 |
Each LED included 1pcs plastic screw
there are a pair of 3Pin JST SM connector,the connector is non-waterproof
there are 2 version different Body,frosted or Clear
