Digital LED Bar 30Pixels per meter (WS2801)
US$ 9 - 15
/ Meter
1 Meter(Min. Order)
- Shenzhen yantian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| LED Light Source | epistar | Input Voltage(V) | 5 | |
| Lamp Power | 7.2 | Lamp Luminous Flux(lm) | 300 | |
| Lamp Luminous Efficiency(lm/w) | 40 | Color Temperature(CCT) | Other, rgb | |
| Working Temperature(℃) | -30, 50 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | CE | Emitting Color | Changeable | |
| Place of Origin | Guangdong, China | Brand Name | iPixelLED | |
| Model Number | SJ-10030-2801 |
Product Description
Specifications
WS2801 chip1.DC5V input
2.30pcs LEDs/m
3.waterproof IP65
4.black /White PCB
WS2801 Addressable LED Bar
-this digital bar used 30pcs chip to drive 30 RGB LED,and it's cut-able of
each LED with IC
PCB size:W15*500mm, and we had two colors of the circuit board:White ,Black.
-we have been made many versions for customer
non-waterproof,bare PCB with 4Pin connector in back side
Aluminum housing + PC lens non-waterproof
Aluminum housing+expoy glue+PC lens waterproof IP67
-Each bar included 2pcs metal holder and 2 pcs Screw
every 5pcs bar included 1 T style connector (for powering)
-Custom size available
Datasheet
| Item No. | VCC | LEDs/50cm | Watt/50cm | IC | Gray level | PCB size | IP Grade |
| SJ-10030-2801 | DC5V | 30pcs 5050 RGB | Max:7.2W | WS2801 | 256 | 500*15mm | Non-waterproof |
| Item No. | VCC | LEDs/50cm | Watt/50cm | IC | Gray level | PCB size | IP Grade |
| SJ-10030-2801W | DC5V | 30pcs 5050 RGB | Max:7.2W | WS2801 | 256 | 1000*20mm | IP67 |

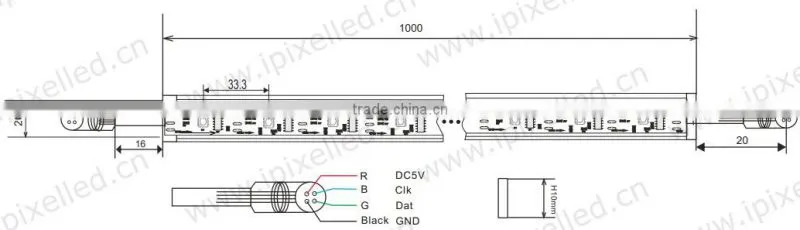

Size Drawing Non-waterproof
Size Drawing -waterproof IP65
Effect showing
