SK6812 Led Strip 60 Pixels

SK6812 Led Strip 60 Pixels thumbnail-1
SK6812 Led Strip 60 Pixels thumbnail-2
SK6812 Led Strip 60 Pixels photo-1
SK6812 Led Strip 60 Pixels photo-2
US$ 5 - 15 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
sk6812 led
Type:
Flex LED Strips
Input Voltage(V):
5V
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source sk6812 led
Type Flex LED Strips
Input Voltage(V) 5V
Lamp Power 14.4W
Color Temperature(CCT) 5000-6000K
Working Temperature(℃) -30, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / iPixel
Model Number SJ-10060-sk6812 / SJ-10060-sk6812

SJ-10060-sk6812 Addressable 60 Pixels sk6812 Led Strip



Description:

 Brand new Smart RGB Pixel Strip light---IC built-in sk6812 Digital LED Strip



Each smd 5050 has an IC(sk6812) inserted in,Each LED individually address controlled.

You can design many different  lighting effects or animations you want.

This is the highest resolution one for the moment!

Controller, power supply are available!

Pixel 60pixels/m addressable rgb led pixel strip sk6812, individually control



Feature:

Products Name

 sk6812 Led pixel strip

Model NO.

SJ-10060-sk6812

Power Consumption

14.4W/Meter

Work Voltage

DC5V

IC model

sk6812 built into 5050

LED Qty

60pcs SMD5050RGB

PCB Color

black/white

Dimension

L1000*W12*H3mm

Waterproof Grade

IP65/IP20

Work Temperature

-40-+60°C

Life-span

60,000H

Certificate

CE&RoHS

Warranty

2 years



Control System:

1. Offline control: SJ-T-1000s, SJ-8000C for off-line working, can control max 2048 Pixels, 8192 Pixels.

2. Online control: SJ-T-200K, 300K for on-line working, can control max 4096,8192 pixels.

3. Compatible with Arduino, DMX 512.



CONNECTION:
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier;DAT and GND connect to controller
3) Relative Controller: SPI controller support sk6812; when use DMX decorder, can connect to DMX system
4) Support online control



Application:

To create the flexible LED dispaly, LED curtain.

Indoor & Outdoor decoration, fashion decoration.

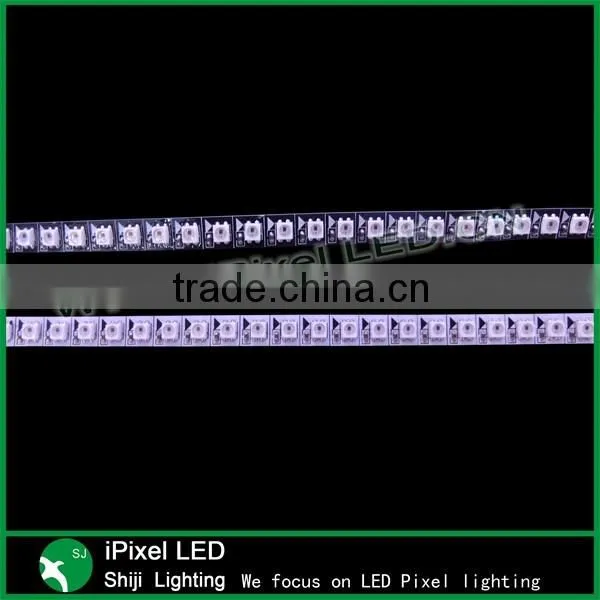

Picture:  silicon tube waterproof type used for outdoor



SK6812 led strip 60 pixels

SK6812 led strip 60 pixels



Non-waterproof use for indoor decoration



SK6812 led strip 60 pixels





3 Pin Male and female Connector on each endside, easy for connect.



SK6812 led strip 60 pixels



Controller:  DMX controller & decoder & SD controller & arduino controller





Effect: Change color individually and pixel addressable full color.



SK6812 led strip 60 pixels

SK6812 led strip 60 pixels



Install: Every 1m with 2 holders and screw to install, and back adhesive on each strips.




Application: flexible LED dispaly, LED curtain. Indoor & Outdoor project.

SK6812 led strip 60 pixels

SK6812 led strip 60 pixels



Package:  5m/ rell 50 rell/ carton size: 46*26*46.5cm total weight :100string /carton
