3 SMD5050 diameter 26mm led pixel for nightclub stage disco

  3 SMD5050 diameter 26mm led pixel for nightclub stage disco

description

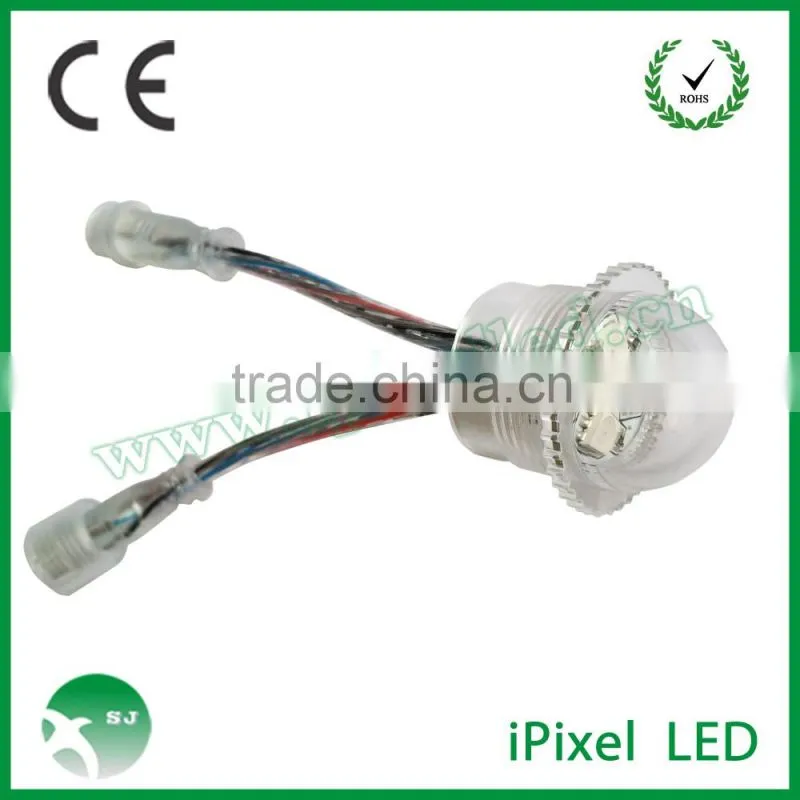

RGB led pixel round module lights - 3 pcs SMD 5050 RGB 26mm pixel light

RGB Pixels are digitally-controllable lights you can set to any color, or animate

 Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

into a 26mm drill hole in any material up to 1.5mm/0.06" thick

They're typically used to make outdoor signs. Compared to our other  LED dots

The pixels are connected by a 3-conductor cable. Blue is +12V, Yellow is Ground, Green is Data

Data is shifted down from one pixel to the next so that you can easily

connect to  the strand or attach more onto the end.

feature:

I   SD controller
l   Programable by Software
l   Individually Control
l   Conformal Coating,PVC glue protection
l   IP66, Water-proof protection
l   Easy installation (punching 26mm hole on metal panel)

l   26mm ucs1903 led rgb pixel module light

 Specifications

Picture:  3pcs smd5050 26mm pixel led waterproof  IP66 used for indoor outdoor,

clear and milky cover.

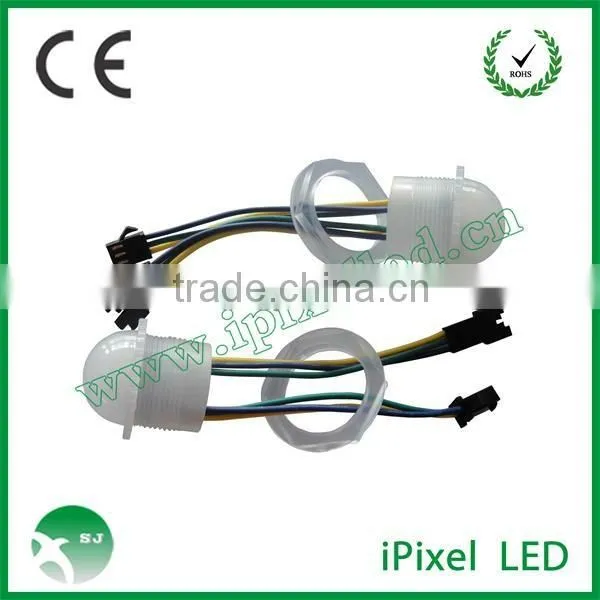

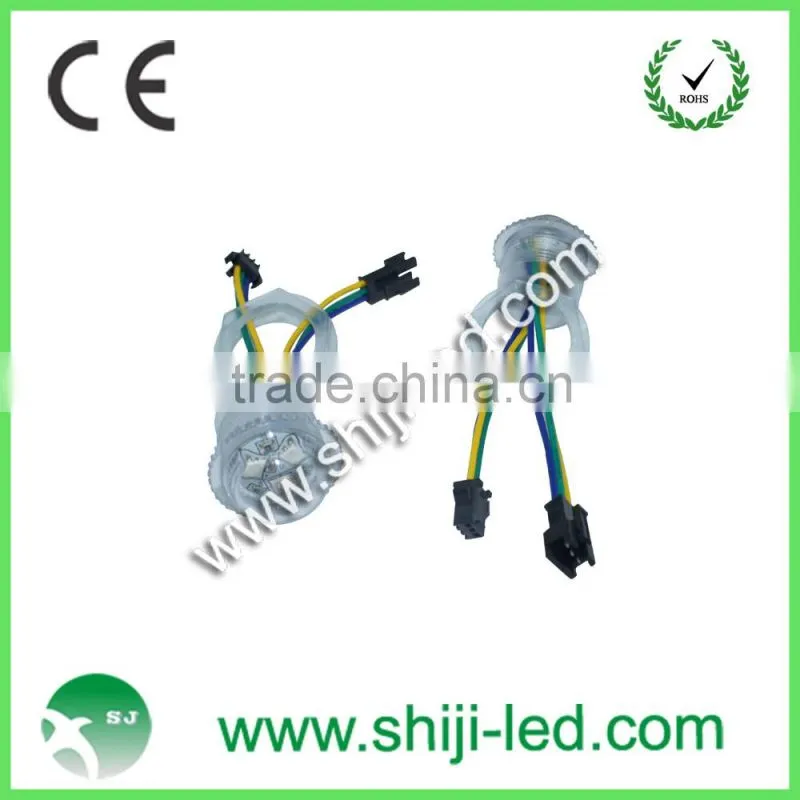

Clear and miky cover waterproof 26mm pixel led with 2pcs 3pin connector of each led

Controller:  DMX controller & decoder & SD controller & arduino controller

Effect: every pixel led with ucs1903 control, can change color individually.

Package: 20pcs/string 8cm lead in cable wire, 80pcs/An-ti static bag 640pcs/carton.
