8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v

8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v thumbnail-1
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v thumbnail-2
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v thumbnail-3
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v thumbnail-4
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v photo-1
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v photo-2
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v photo-3
8x32 16x16 256 Leds Apa102 Addressable Pixel Board DC5v photo-4
US$ 5 - 20 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar chip
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar chip
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 61.44W
Color Temperature(CCT) pixel
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000.00
Lamp Body Material Other, Epistar chip
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ/IPIXEL LED
Model Number SJ-0832-2812B



Product Description

 256led pixel display addressable black pcb 8x32 pixels wholesale IC2811



Part number Size:mm LED Quanlity Voltage(V)   Pixel        LED     Power(w)  Viewangle MCD Per Matrix    IP
 SJ-832WS2812  80*320  256PCS 5  10mm  WS2812B   75(MAX) 140°

R:99840

G:168960

B:51200

 IP20
SJ-1616WS2812 160*160   256PCS 5   10mm  WS2812B 75(MAX)  140°

R:99840

G:168960

B:51200

  		IP20
 SJ-0808WS2812  80*80       64PCS         5  10mm  WS2812B  19(MAX)      140°

     R:24960

     G:42240

      B:12800

 IP20

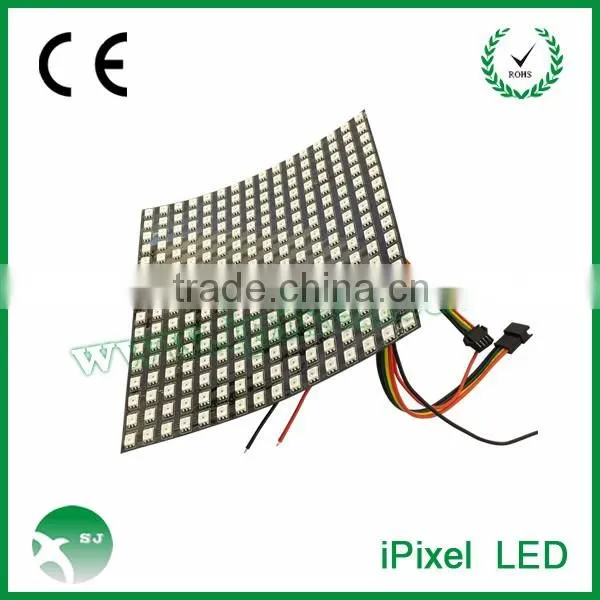

This pixel pcb WS2812B flexible LED matrix is a great way to add an impressive amount

of color while still being able to individually control each LED.

You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,

thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

These panels require a 5V low voltage input for power which needs to be able to source a good amount of current

– up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended).

Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for

a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.

Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when

bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.



Control System:

1. Offline control: SJ-T-1000G, SJ-8000G for off-line working, can control max 2048 Pixels, 8192 Pixels.

2. Online control: SJ-T-200K, 300K for on-line working, can control max 4096,8192 pixels.

3. Compatible with Arduino, DMX 512.



CONNECTION:
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier;DAT and GND connect to controller
3) Relative Controller: SPI controller support sk6812; when use DMX decorder, can connect to DMX system
4) Support online control





Non-waterproof use for indoor decoration

3 Pin Male and female Connector on each endside, easy for connect.

Controller:  DMX controller & decoder & SD controller & arduino controller
Effect: Change color individually and pixel addressable full color.
Application: flexible LED dispaly, LED curtain. Indoor project.
