Granular Activated Carbon Cartridge SeriesGAC filter cartridge

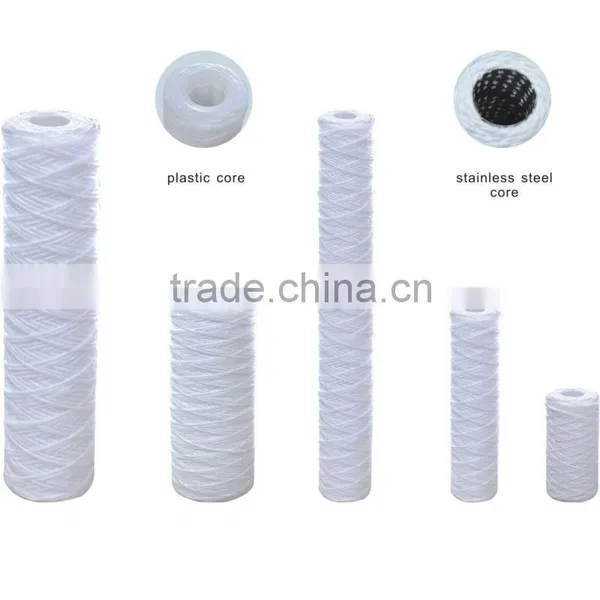

String Wound Cartridge Series
String wound cartridges offer true depth filtration with high dirt holding
capacity and extremely low media migration.It is manufactured using a high
speed,continuous wind process which creates a superior one-piece filter with
hundreds of diamond shaped tunnels that get progressively smaller from the
outer diameter to the core.
FEATURES
Greater solids holding capacity
Longer service life
Low pressure drop
Temperature and specification,lengths and diameters
True depth filtration
APPLICATIONS
RO water purification system
Drinking water system
Pharmaceutical
Electronics/Plating
OPERATION & CONSTRUCTURE
Operation pressure
Media:polypropylene <=0.5Mpa 60°C-70°C
polyester <=0.5Mpa 110°C-120°C
cotton <=0.5Mpa 120°C-140°C
MATERIALS
polypropylene,polyester,cotton
MIRCON RATINGS(um)
Nominal 1,5,10,20,30,50,75,100 micron
