Help CenterHigh Speed Kraft Paper Roll Slitting Rewinding Machine
Related Products
-
New Condition Full Automatic High Speed Jumbo Roll Slitting MachineUS$ 10,000 - 35,000MOQ: 1 Set -
Vertical Type PE PET BOPP PVC FILM ROLL SLITTING MACHINEUS$ 3,000 - 12,000MOQ: 1 Set
-
Lable Slitting Machine With Rotary Die Cutting MachineUS$ 3,000 - 10,000MOQ: 1 Set
-
Cash Receipt Thermal Paper Roll to Roll Slitting MachineUS$ 10,000 - 12,800MOQ: 1 Set
-
ATM Receipt Paper Slitting MachineUS$ 10,000 - 12,800MOQ: 1 Set
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don’t send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
Control from material:
•All bolts and screws are of SS material
•Mild steel ERW rectangular tubes or sheets 1.2-2.0mm thickness, meet EU standard
•Plastic material is of ABS only. Durable and Sturdy. At least 10 years lifetime. Different colors for options.
Control from inspection:
•Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team
For machine services:
1.Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.We can train your staff to use new equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity in the condition of salary 80USD per day,also including the charge for transportation,accomodation,etc.
Contact information:
Skype shiner1987
WhatsApp/ Viber 0086 13736900583
Economic Type Non woven jumbo roll slitting machine
Uses:
The machine is suitable for slitting BOPP, PET, CPP, CPE, PVC, PE aluminum foil, paper and other roll materials in the production process of the material according to the different needs trimming, slitting.
Performance and features:
This machine is a vertical slitting machine, the independent total control screen, the operation more flexible, convenient, automatic correction of unwinding, photoelectric eye is suitable for tracking the edge and color of transparent material, and rewinding tension magnetic powder brake control, winding adopts magnetic clutch control , has a the edge material air delivery or take-up device (select when ordering), automatic meter material moving length, winding pressure roller so that the membrane formation, double gas rose to close reel.
Technical parameters:
| models | GX-L700A | GX-L1100A | GX-L1300A |
| points cut sheet width | 700 mm | 1100 mm | 1300 mm |
| points the maximum diameter of the cut sheet | φ600mm | φ600mm | φ600mm |
| slitting the coil width | 30-600 mm | 30-1000 mm | 30-1200 mm |
| slitting speed | 5-160m/min | 5-160m/min | 5-160m/min |
| corrective error | <± 0.5 | <± 0.5 | <± 0.5 |
| total power | 2.9KW | 3.7KW | 3.7KW |
| whole weight | 1200 kg | 1500 kg | 1800 kg |
| Dimensions | 2000*1470*1400mm | 2400*1470*1400mm | 2600*1470*1400mm |

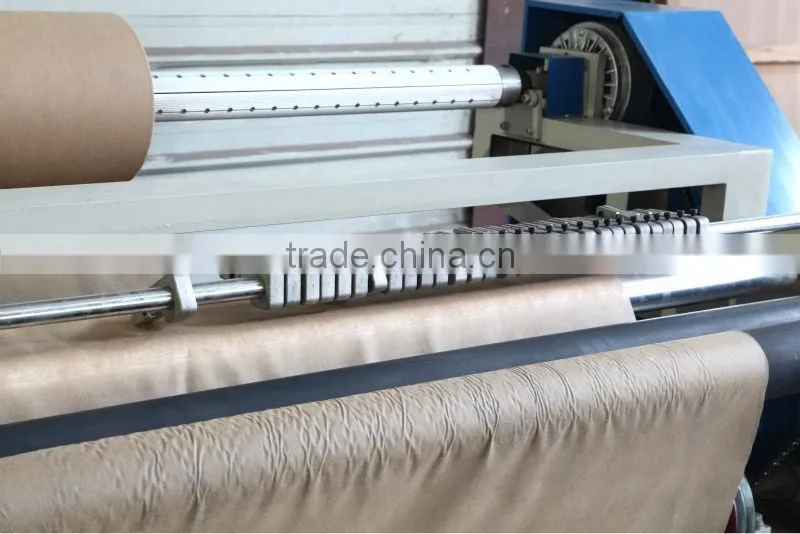

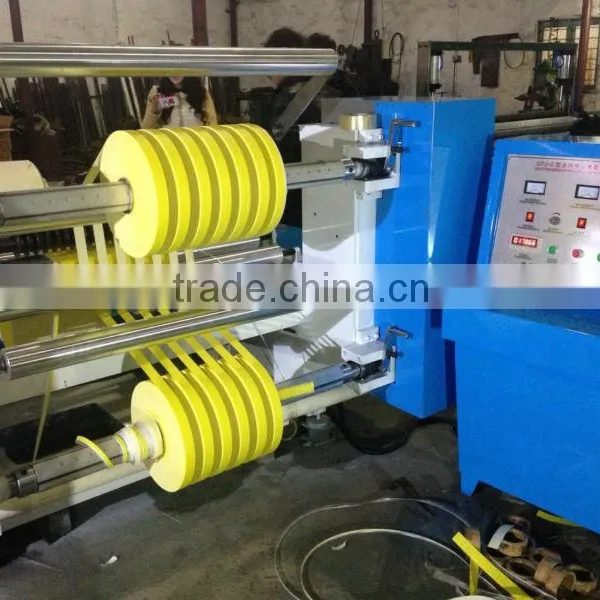

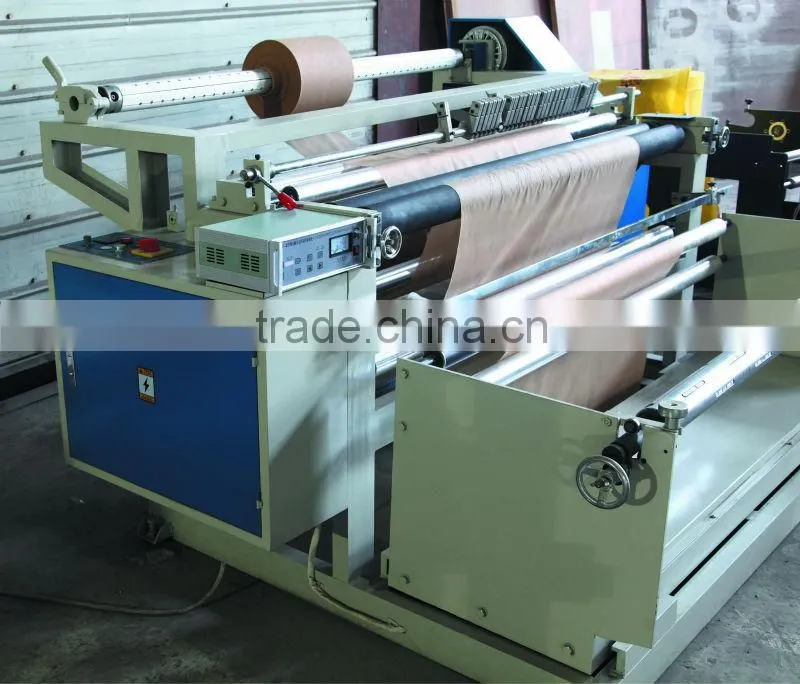

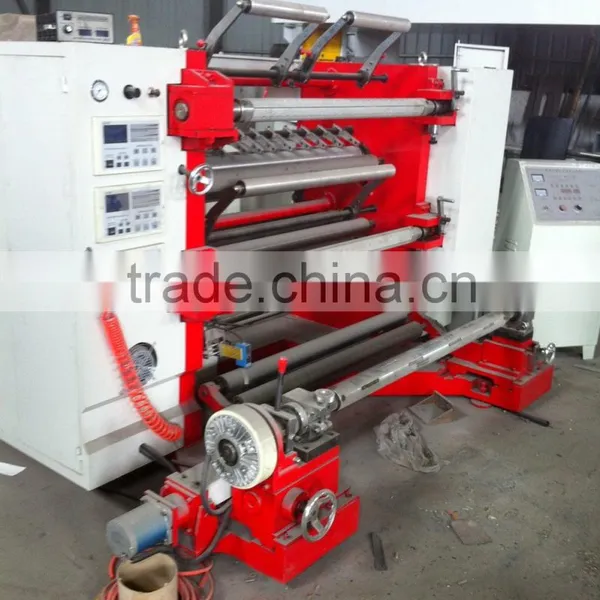

Machine pictures display
