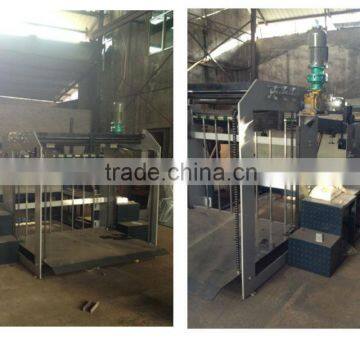

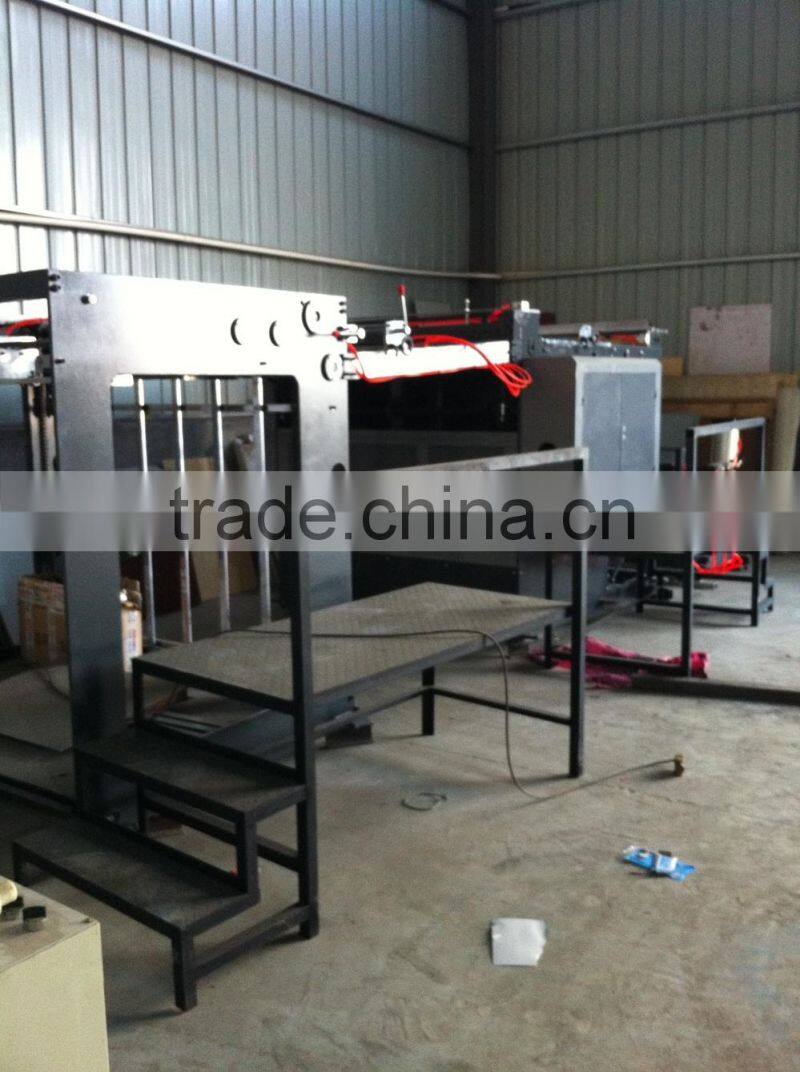

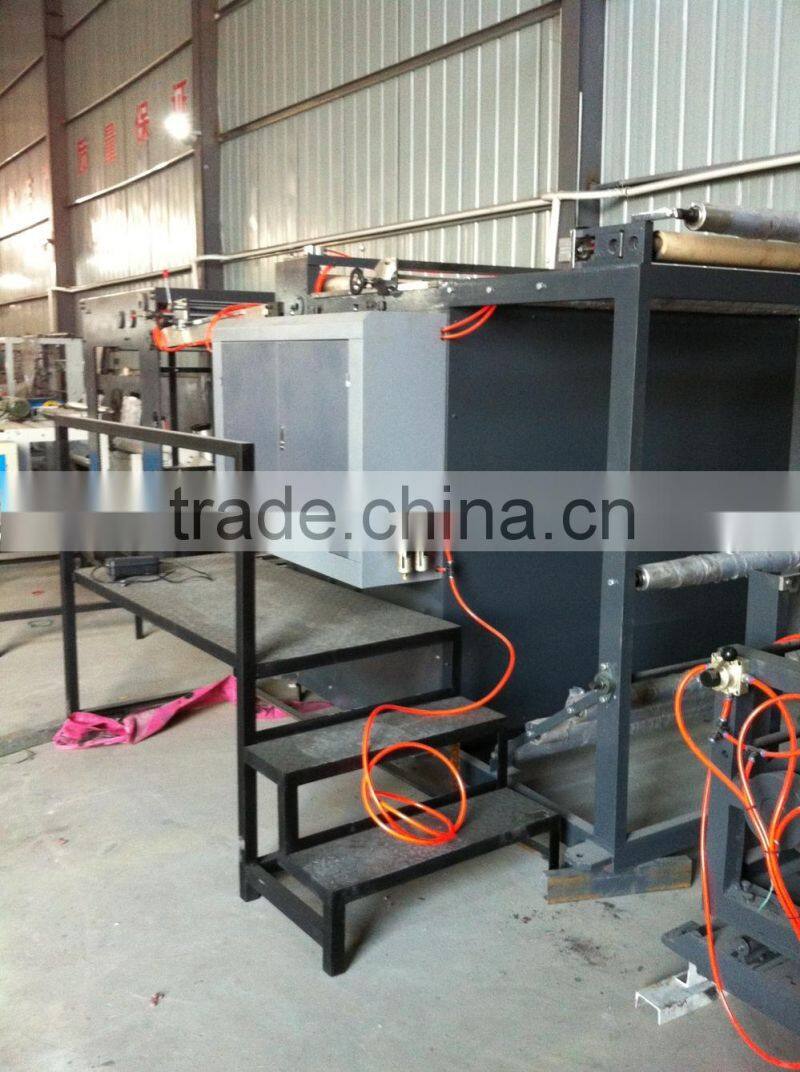

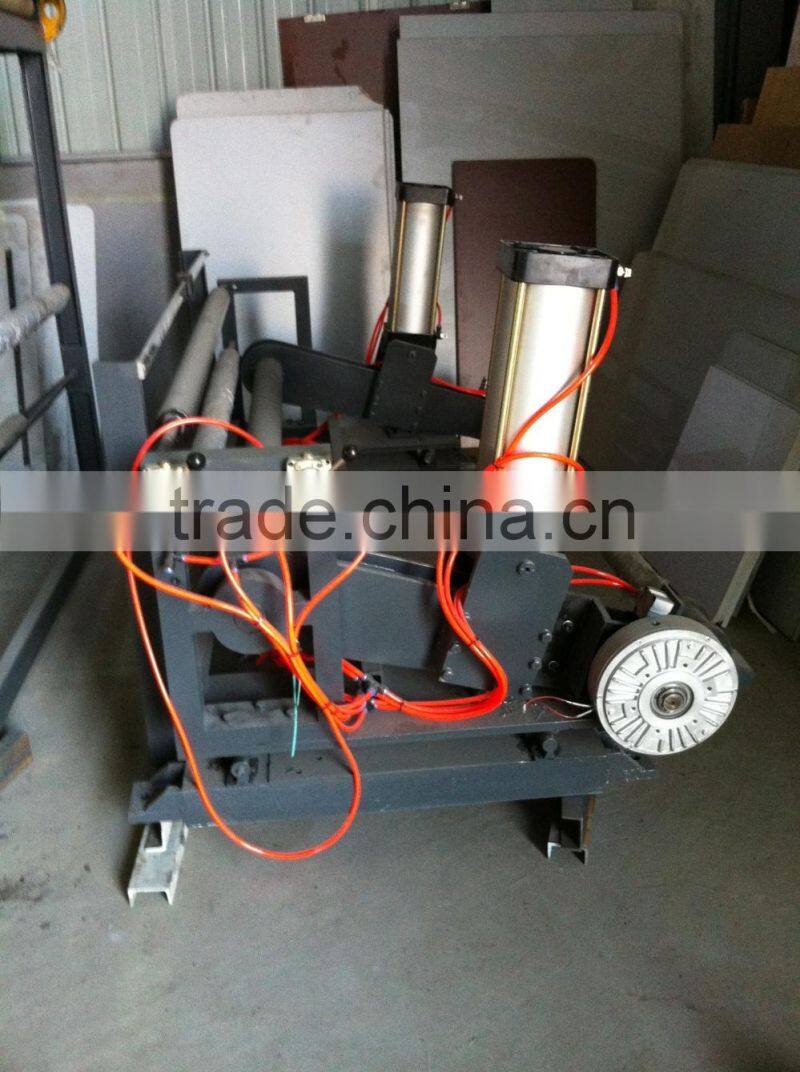

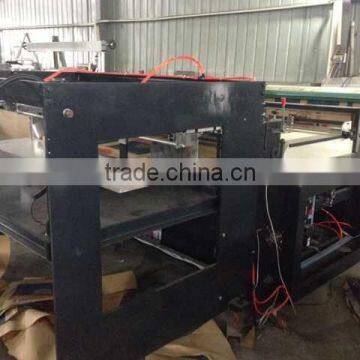

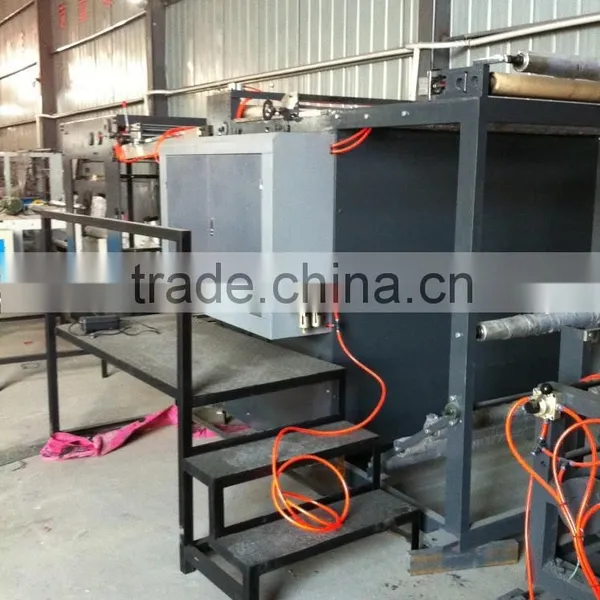

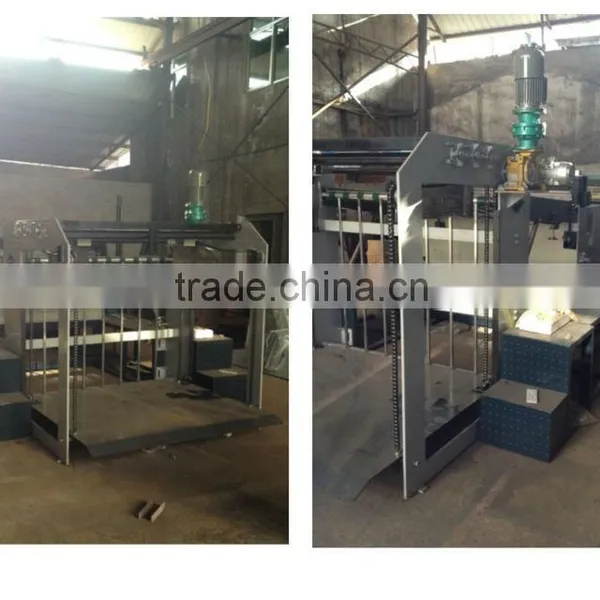

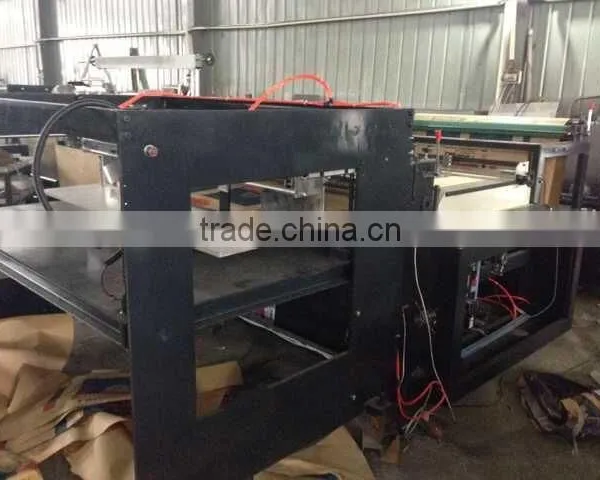

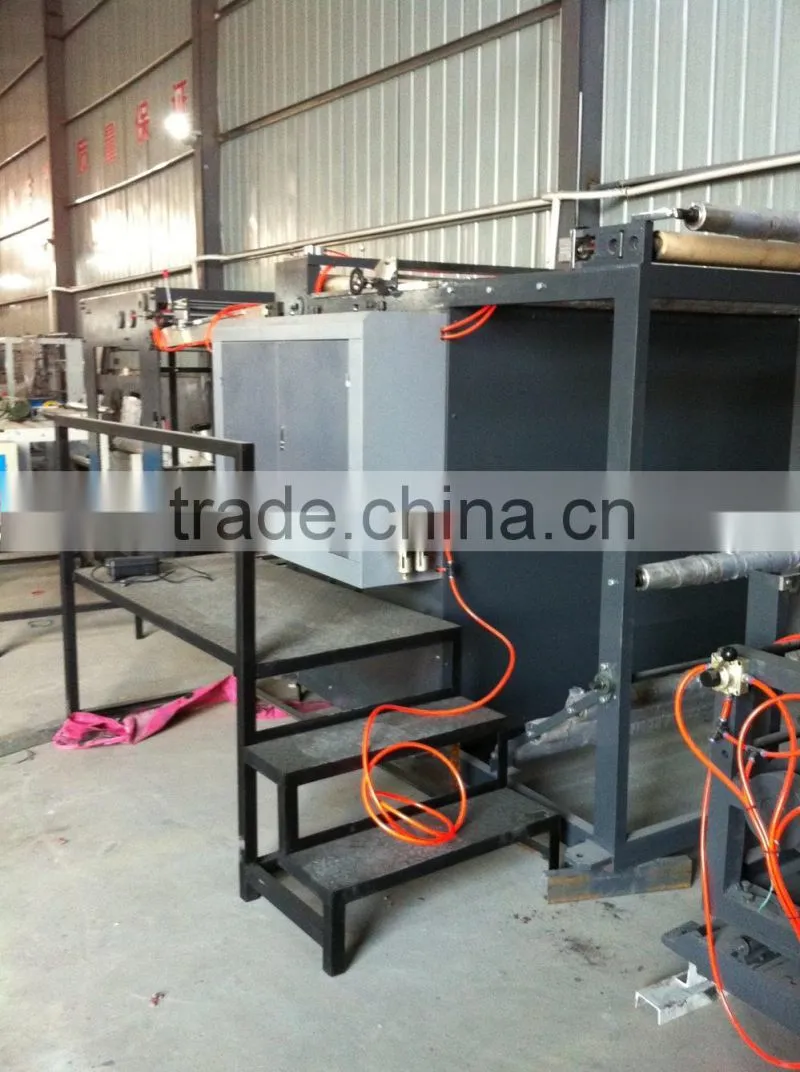

DC-A1100 High speed Computer control paper Roll to Sheet Cutting Machine
Usage:
This machine is suitable for PVC, non woven roll, gold-silver paperboard, plain rainbow paper, the positioning laser transfer paper, white paper, plastic sheet and roll materials. Applied PLC system to control electrical system. Man-machine controlling system, digital display; fixed-length control stepper motor system control, automatic identification standard photoelectric switch imported to ensure the accuracy of the truncation. Advanced machine control mode, controlling the speed of the main motor, imported stepper motor, feeding motor through the computer to achieve synchronous operation.
Main parameters:
Model |
600 |
800 |
1000 |
1200 |
1400 |
Width |
100-500mm |
100-700mm |
100-900mm |
100-1100mm |
100-1300mm |
Length |
30-1500mm |
||||
Thickness |
Plastic film 0.01-0.5mm non woven10-300g paper 10-450g |
||||
Speed |
50-150pcs/min |
||||
Precision |
±0.2-0.5mm |
||||
Power |
2.2kw |
2.5kw |
3kw |
3.5kw |
4kw |
Machine weight |
800kg |
900kg |
1000kg |
1200kg |
1300kg |
Machine dimension |
3200*1300*1500mm |
3500*1500*1500mm |
3800*1700*1500mm |
3800*1900*1500mm |
3800*2100*1500mm |
Main Specification:
No. |
Name |
Quantity(PCS) |
Origin |
Brand |
1 |
Computer (PLC touch screen) |
1 |
Wuxi |
Hailida |
2 |
Inverter |
1 |
Taizhou |
Hualan |
3 |
Main motor |
1 |
Shanghai |
Lichao |
4 |
Feeding motor |
1 |
Wuhu |
Wuhu |
5 |
Air shaft |
1 |
Ruian |
Gongkong |
6 |
Pneumatic loading |
1 |
Ruian |
Dongchen |
7. |
Magnetic powder |
1 |
Ruian |
Zhongkong |
8 |
Web guiding |
1 |
Ruian |
Dongchen |
