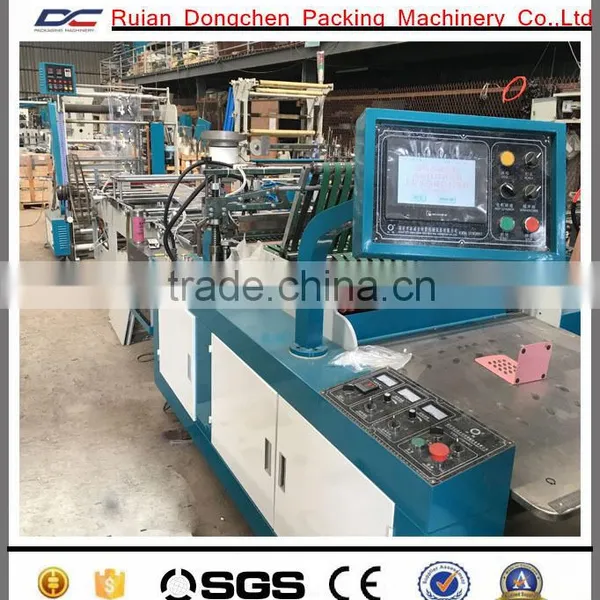

Vertical Type PE Opp Zipper Self Lock Bag Making Machine

Vertical Type PE Opp Zipper Self Lock Bag Making Machine thumbnail-1

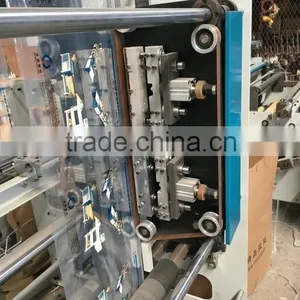

Vertical Type PE Opp Zipper Self Lock Bag Making Machine thumbnail-2

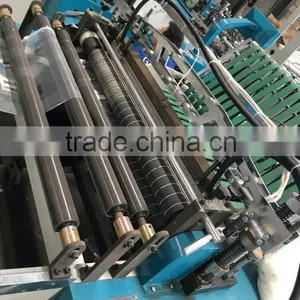

Vertical Type PE Opp Zipper Self Lock Bag Making Machine thumbnail-3

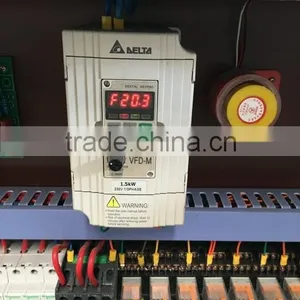

Vertical Type PE Opp Zipper Self Lock Bag Making Machine thumbnail-4

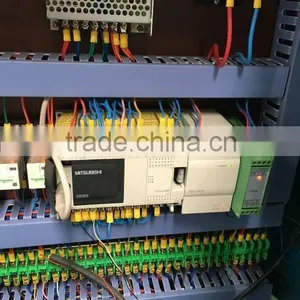

Vertical Type PE Opp Zipper Self Lock Bag Making Machine thumbnail-5
Vertical Type PE Opp Zipper Self Lock Bag Making Machine thumbnail-6
Vertical Type PE Opp Zipper Self Lock Bag Making Machine photo-1
Vertical Type PE Opp Zipper Self Lock Bag Making Machine photo-2

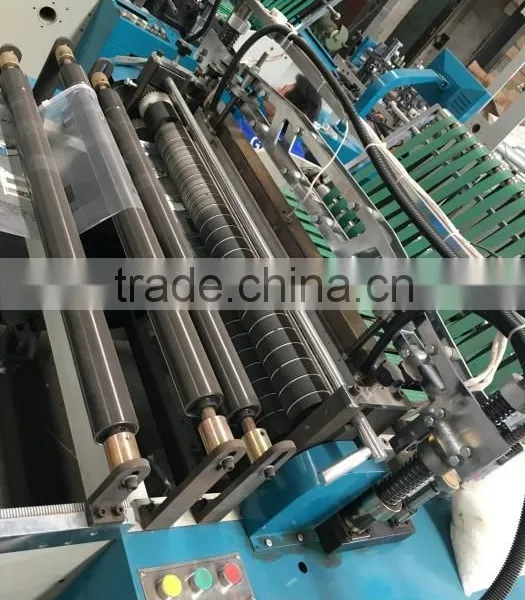

Vertical Type PE Opp Zipper Self Lock Bag Making Machine photo-3
Vertical Type PE Opp Zipper Self Lock Bag Making Machine photo-4

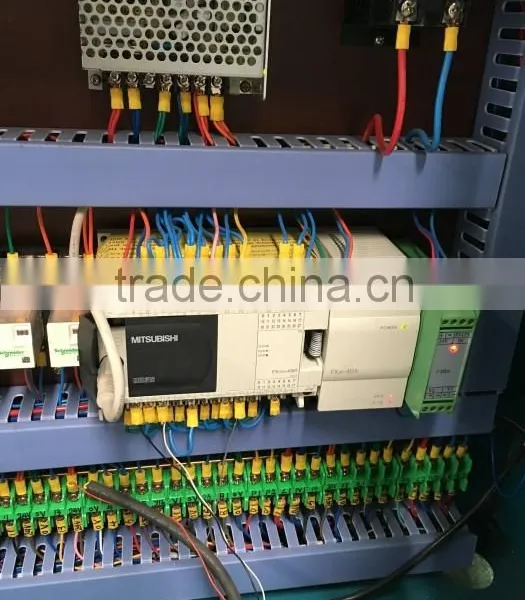

Vertical Type PE Opp Zipper Self Lock Bag Making Machine photo-5

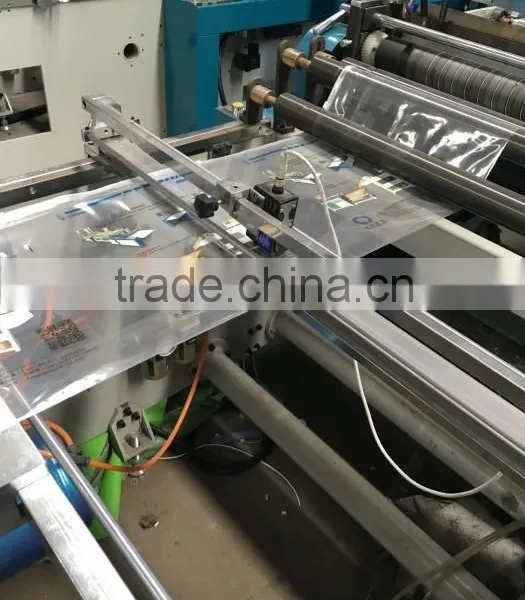

Vertical Type PE Opp Zipper Self Lock Bag Making Machine photo-6
US$ 1,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Zipper Bag
Contact Supplier Request Quote Chat Now
Ruian Dongchen Packaging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Bag Forming Machine
Bag Type Zipper Bag
Material Plastic
Computerized Yes
Place of Origin Zhejiang, China
Brand Name DONGCHEN
Model Number FQL600-1000
Voltage 220V/380V
Power(W) 10kw
Dimension(L*W*H) 4000x1500x2000mm
Weight 950kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Vertical type PE opp Zipper self lock Bag Making Machine





   Application

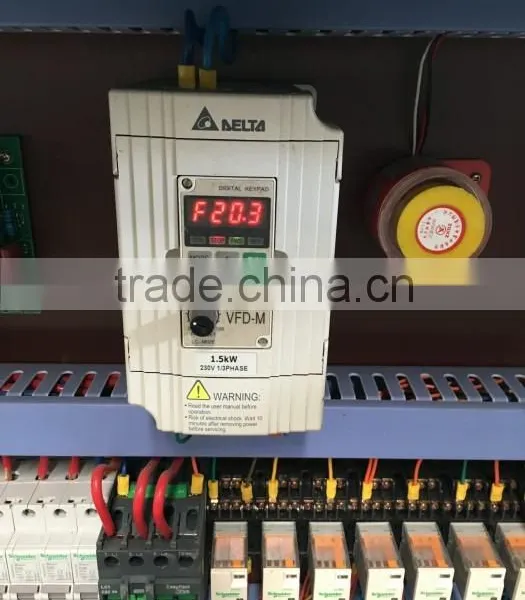

    This machine uses photoelectric track, computer control, frequency conversion velocity modulation and automatic temperature control, with the advantages of operating easily and sealing firmly. It is only used to seal and cut high pressure PE self-seal bags. It is an advanced bag making machine.

    This machine can be widely used in the heat cutting plastic packaging products, such as self-seal bags, vest bags, gum sealing bags, woven bags, and so on.

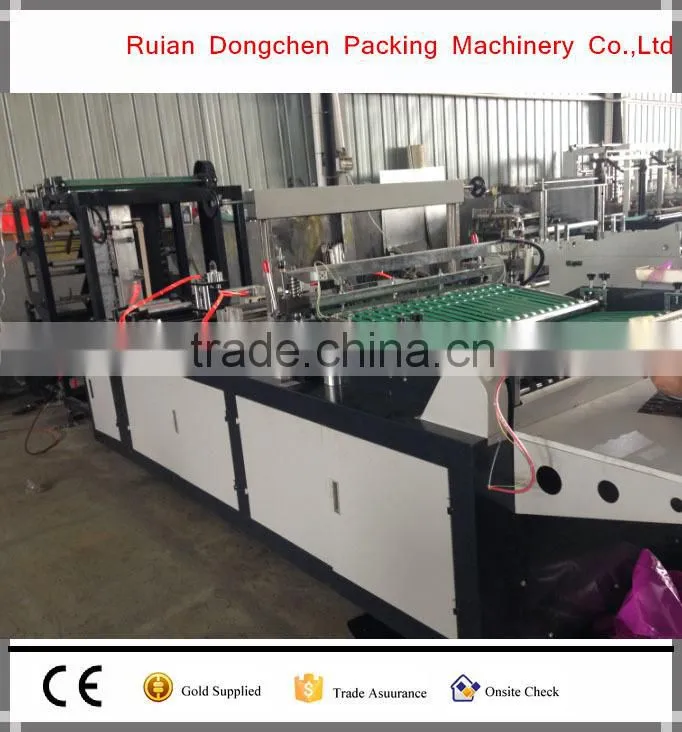

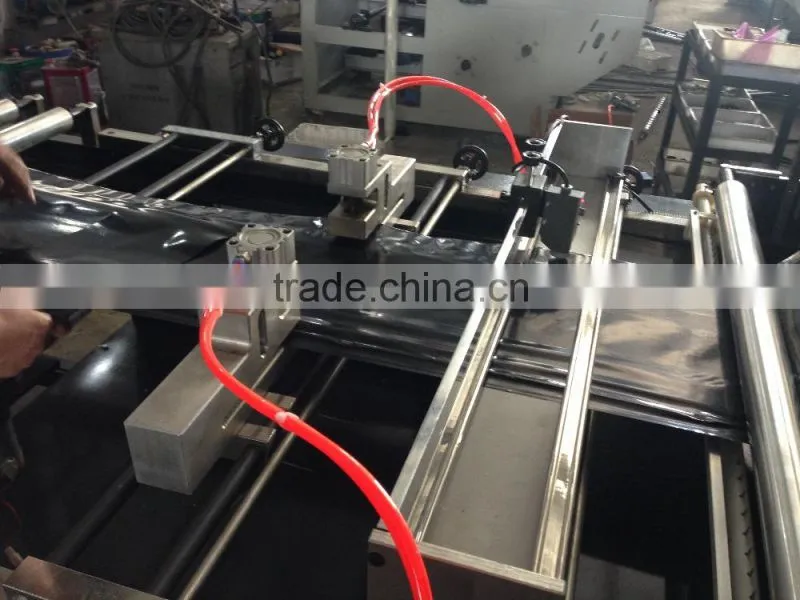

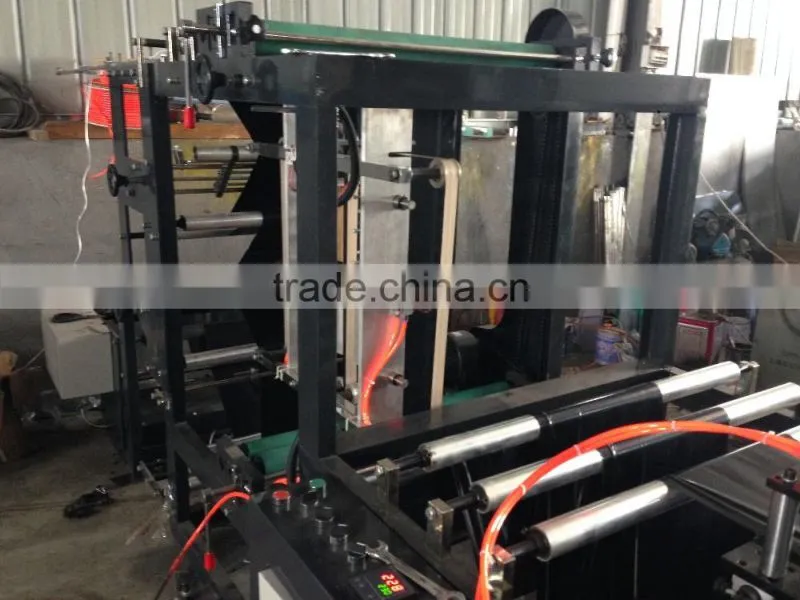

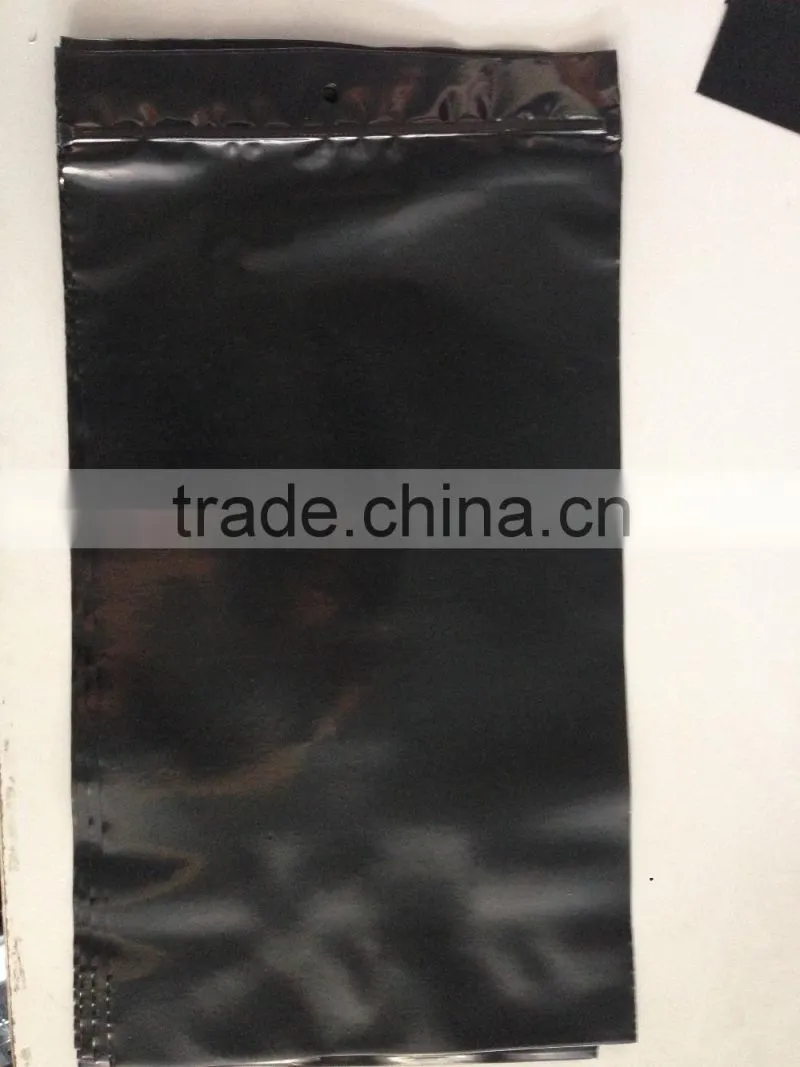

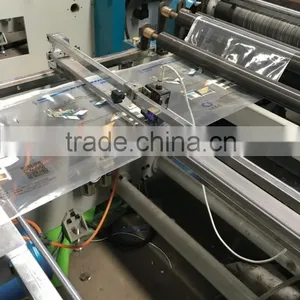

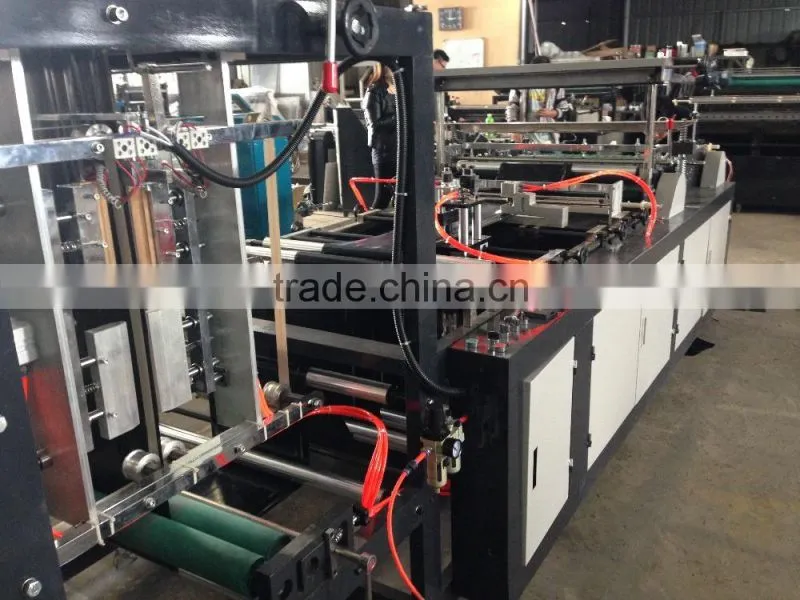

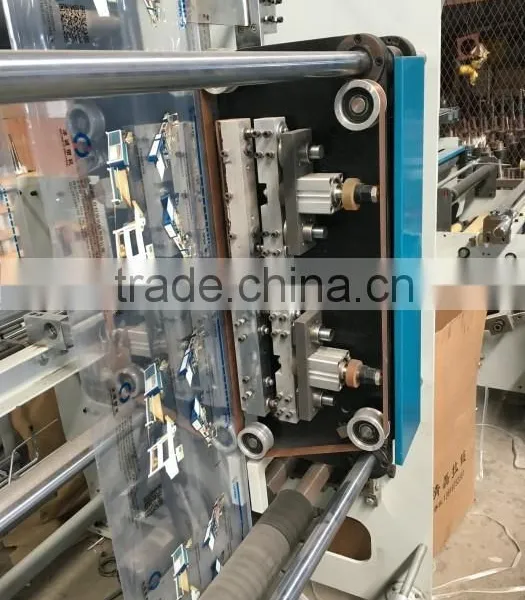

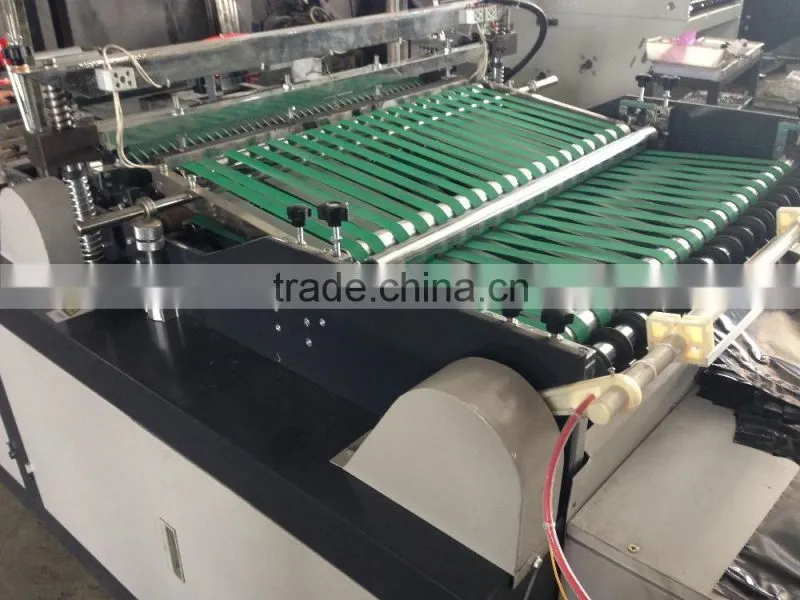

 Pictures

 Vertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making Machine













 Main Technical





Model

600

800

1000

Width of sealing &cutting

700mm

700mm

700mm

Length of sealing& cutting

580mm

780mm

980mm

Speed of bag-making

40-240pc/min

40-240pc/min

40-240pc/min

Power of motor

3kw

7kw

10kw

Weight

700kg

850kg

950kg

Outline dimension(LxWxH)

3600x1200x1700mm

3600x1400x1700mm

3600x1600x1700mm

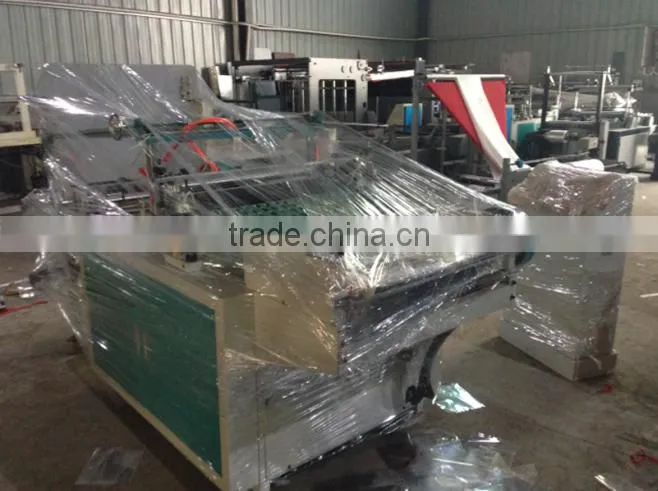

 Packing And Delivery





 Contact Us

 Vertical type PE opp Zipper self lock Bag Making Machine

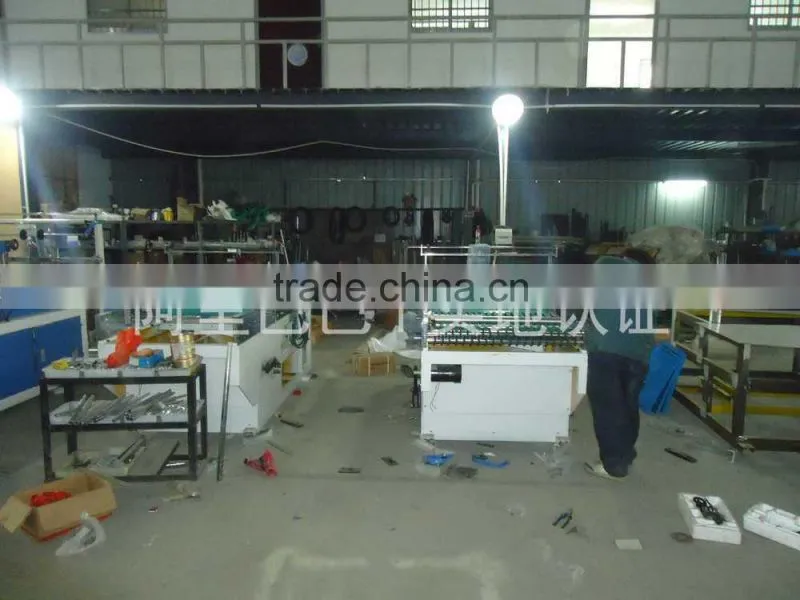

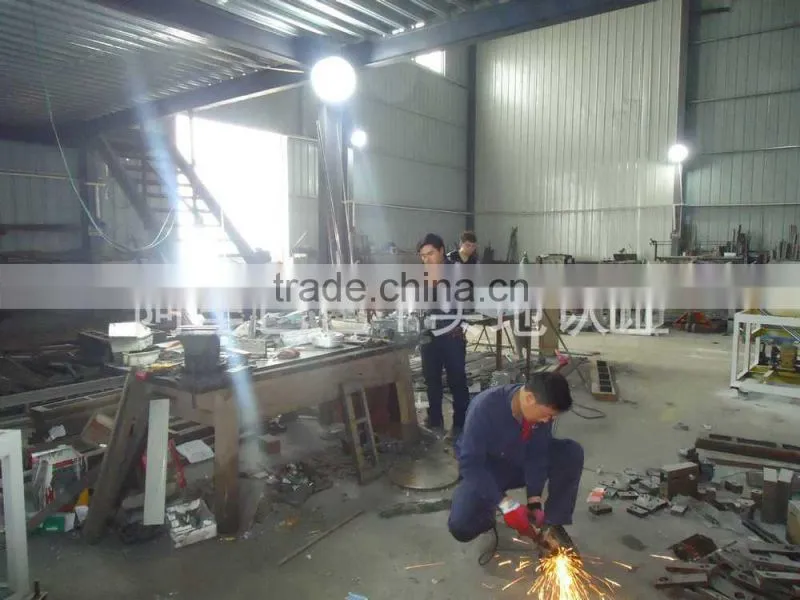

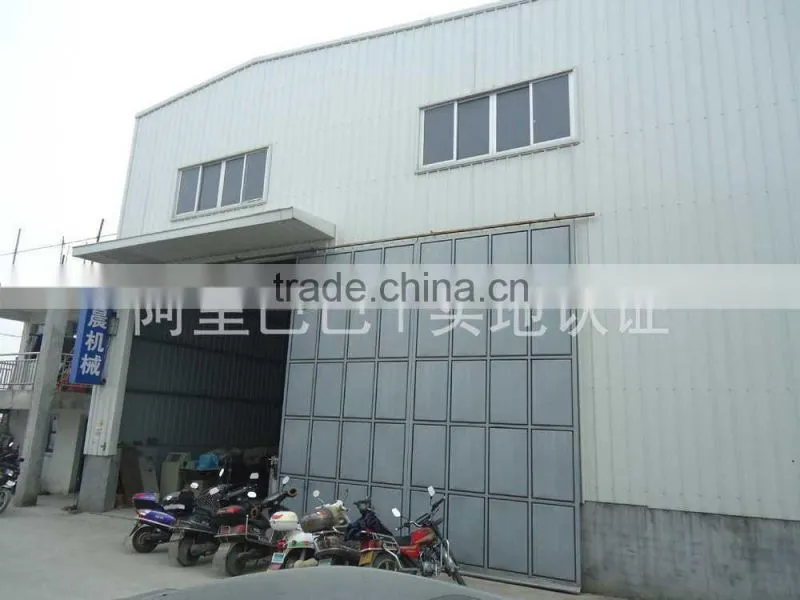

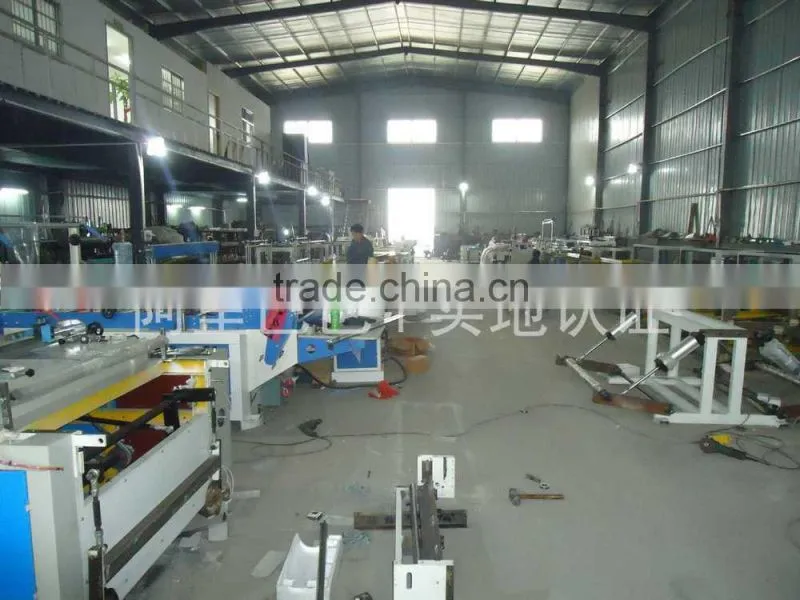

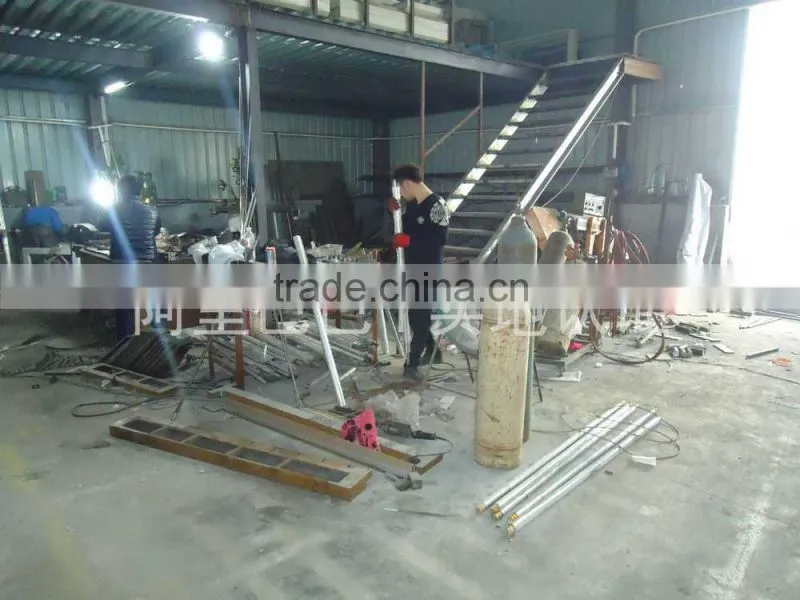

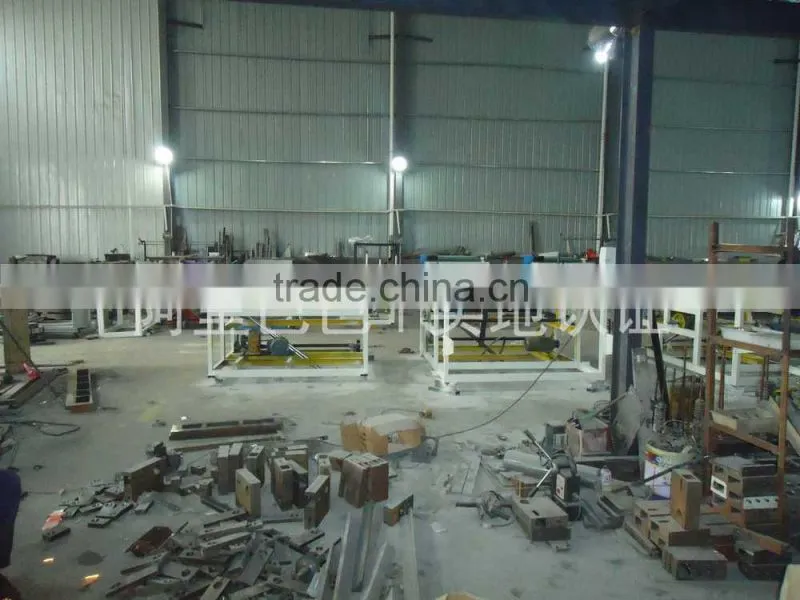

Company Information

Vertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making MachineVertical type PE opp Zipper self lock Bag Making Machine



























Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Ruian Dongchen Packaging Machinery Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2013
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
