Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > 500KW Medium Frequency Induction Heating

500KW Medium Frequency Induction Heating

Name: 500KW Medium Frequency Induction Heating
Brand: rongdongsheng
SKU: 134697745
Availability: InStock

500KW Medium Frequency Induction Heating thumbnail-1

500KW Medium Frequency Induction Heating photo-1

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Induction Furnace

Usage:

Heat Treatment Furnace

Contact Supplier Request Quote Chat Now

Foshan Rongdongsheng Furnace Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Induction Furnace

Usage Heat Treatment Furnace

Place of Origin Guangdong, China

Brand Name rongdongsheng

Model Number KGPS-500

Voltage 380V

Power(W) 500KW

Certification CE&ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

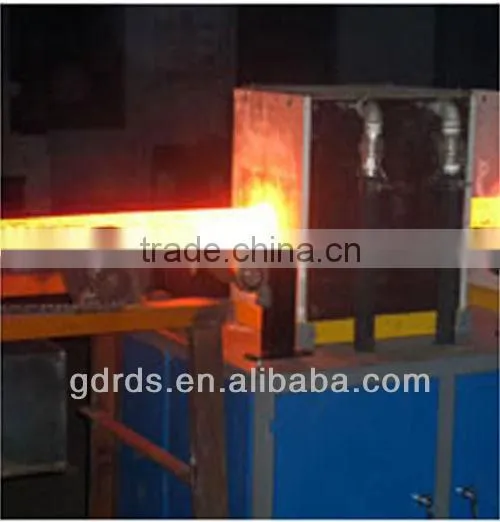

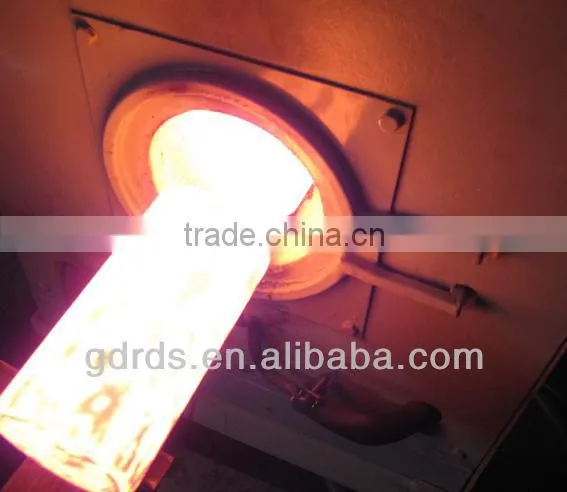

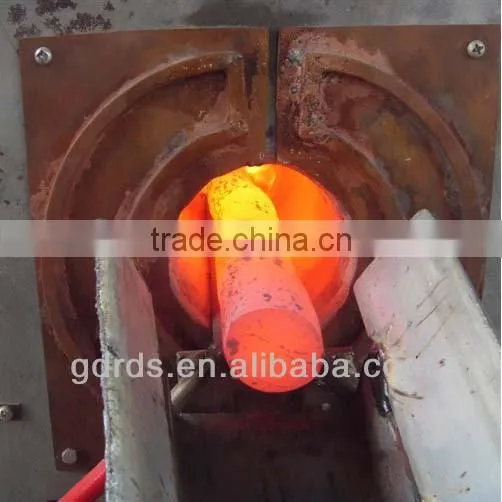

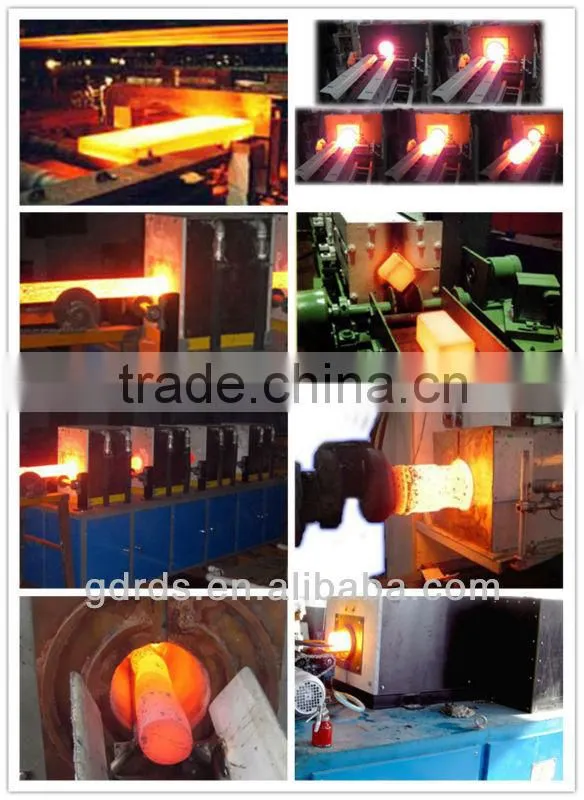

Introduction and usage:

Intermediate frequency heating furnace is applicable to heating treatment prior to forging , extrusion , hot rolling , sintering , tube-bending forming of metal material . Widely be use for large workpiece with strong power, can’t be replaced by IGBT soil state intermediate frequency equipment.

Characteristics and feature:

1. It is well know and best method of heating treatment what metal material adopt for medium frequency heating.

2. Heating fast, reduce production cost , high efficiency and very easy to operator;

3. Lower pollution , conforming to environmental standard requirement ;

4. Fully automatic to make sure product quality and achieve semi and fully automatic

Main Models And Technical Parameters
Equipment Type	Power input(Three-phase Four- wire 50/60Hz)			Power Output				Output per hour (KG)
Equipment Type	Rating power (KW)	Inlet line Voltage (V)	Inlet line Current (A)	DC Current (A)	DC Voltage (V)	IF Voltage (V)	IF frequency (KHZ)	Steel (KG)	Copper (KG)	Aluminum (KG)
KGPS--50	50	380	80	100	500	750	1--8	125	282	234
KGPS--100	100	380	160	200	500	750	1--8	250	564	468
KGPS--160	160	380	256	320	500	750	1--8	400	902	749
KGPS--200	200	380	320	400	500	750	1--8	500	1128	936
KGPS--250	250	380	400	500	500	750	1--8	625	1410	1170
KGPS--400	400	380	640	800	500	750	1--8	1000	2256	1872
KGPS--500	500	380	800	1000	500	750	1--8	1250	2820	2340
KGPS--750	750	380	1200	1500	500	750	0.4--8	1875	4230	3510
KGPS--750	750	660	680	850	880	1300	0.4--8	1875	4230	3510
KGPS--1000	1000	380	1600	2000	500	750	0.2--8	2500	5640	4680
KGPS--1000	1000	660	912	1140	880	1300	0.2--8	2500	5640	4680
KGPS--1500	1500	380	2400	3000	500	750	0.2--1	3750	8460	7020
KGPS--1500	1500	660	1360	1700	880	1300	0.2--1	3750	8460	7020
KGPS--2000	2000	660	1850	2273	880	1300	0.2--1	5000	11280	9360
KGPS--2000	2000	1250	1000	1212	1650	1300	0.2--1	5000	11280	9360
KGPS--2500	2500	660	2310	2840	880	1300	0.2--0.5	6250	14100	11700
KGPS--2500	2500	1250	1257	1515	1650	1300	0.2--0.5	6250	14100	11700
KGPS--3500	3500	660	3260	4000	880	1300	0.2--0.5	8750	19740	16380
KGPS--3500	3500	1250	1710	2100	1650	1300	0.2--0.5	8750	19740	16380
Furnace temperature:1. Steel 1200 °C 2.Copper 900 °C 3.Aluminum 500 °C
Power consumption per ton of material: 1. Steel 350--550KW 2.Copper 150--300KW 3.Aluminum 180--400KW
Remark:
*Power consumption per ton of material relates to power, frequency, temperature, workpiece appearance and density, body temperature and other element

Service:

1. We also provide customized. Can custom made non-standard products with different power and material size, heat time of workpiece according customer requirement.

2. Moreover, we are kindly help customer to installing and testing the equipment .

3. Product quality guarantee period for a year.
