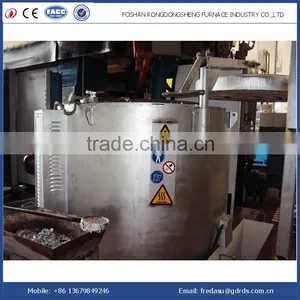

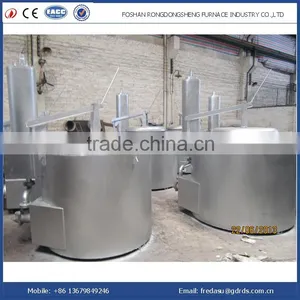

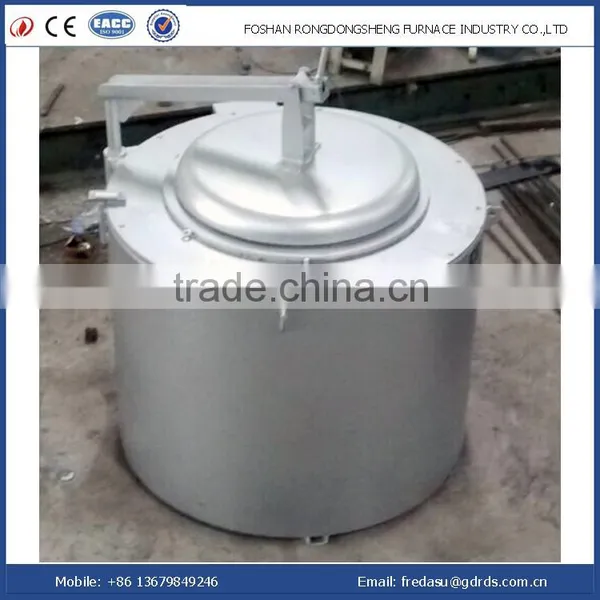

Aluminum melting and holding furnace
Crucible Resistance Melting Furnace
This series crucible melting and holding furnace main used for low melting point of non-ferrous metals and alloy smelting , such as aluminum , zinc , tin , copper, cadmium and other alloy smelting , also available for laboratory chemical physics analysis , melting metal and small steel heat treatment .
Model Type |
GR-100-9 |
GR-150-9 |
GR-250-9 |
GR-300-9 |
GR-350-9 |
GR-500-9 |
||
Rated Power(KW) |
20 |
30 |
40 |
45 |
60 |
90 |
||
Rated Voltage(V) |
380 |
380 |
380 |
380 |
380 |
380 |
||
Rated Temperature(℃) |
900 |
900 |
900 |
900 |
900 |
900 |
||
Phase |
3 |
3 |
3 |
3 |
3 |
3 |
||
Heat Element Connection Method |
Y |
Y |
Y.Y |
Y.Y |
Y.YY |
Y.YY |
||
Crucible Size |
Dia.(mm) |
Ø530 |
Ø530 |
Ø615 |
Ø615 |
Ø620 |
Ø785 |
|
Height(mm) |
400 |
490 |
630 |
700 |
800 |
750 |
||
Empty Furnace Temperature Rising Time(h) |
≤2.5 |
≤2.5 |
≤2.5 |
≤2.5 |
≤3 |
≤3 |
||
Empty Furnace Power Consumption(kw) |
≤7 |
≤9 |
≤12 |
≤14 |
≤16 |
≤18 |
||
Overall Size |
Dia(mm) |
Ø1280 |
Ø1280 |
Ø1300 |
Ø1360 |
Ø1365 |
Ø1430 |
|
Height(mm) |
800 |
900 |
1000 |
1100 |
1200 |
1150 |
||
Melting Capacity(kg) |
100 |
150 |
250 |
300 |
350 |
500 |
||
Weight(kg) |
1300 |
1400 |
1500 |
1600 |
1800 |
2200 |
||
Note: 300kg and 500kg aluminum melting furnace melting time is about 3.5 hours! We can design the furnace according your special requirement.
