Aluminum melting holding furnace for cast machine
- 100 Set / Sets per Month
- FOSHAN
- T/T Credit Card PayPal
Product Details
| Condition: | New | Type: | Resistance Furnace | Usage: | Melting Furnace |
| Place of Origin: | Guangdong, China | Model Number: | GR-100-9 | Voltage: | 380V |
| Power(W): | 20kw | Dimension(L*W*H): | Dia 530x400mm | Weight: | 1300kg |
| Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

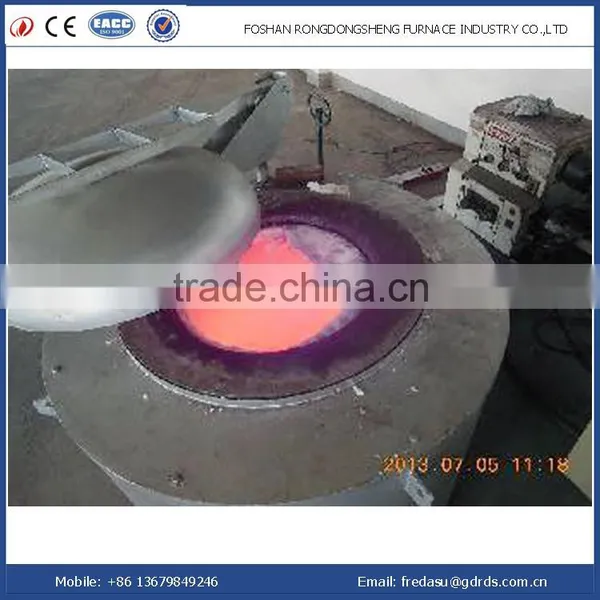

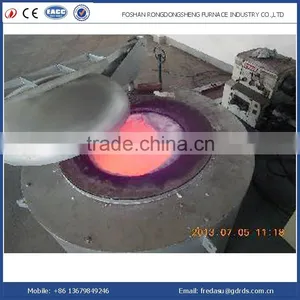

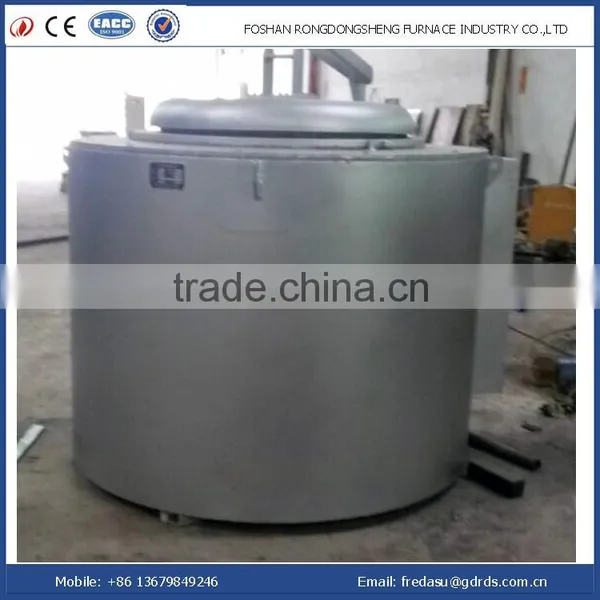

Aluminum melting holding furnace for cast machine
Crucible Resistance Melting Furnace
This series crucible melting and holding furnace main used for low melting point of non-ferrous metals and alloy smelting , such as aluminum , zinc , tin , copper, cadmium and other alloy smelting , also available for laboratory chemical physics analysis , melting metal and small steel heat treatment .
Model Type | GR-100-9 | GR-150-9 | GR-250-9 | GR-300-9 | GR-350-9 | GR-500-9 | ||
Rated Power(KW) | 20 | 30 | 40 | 45 | 60 | 90 | ||
Rated Voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | ||
Rated Temperature(℃) | 900 | 900 | 900 | 900 | 900 | 900 | ||
Phase | 3 | 3 | 3 | 3 | 3 | 3 | ||
Heat Element Connection Method | Y | Y | Y.Y | Y.Y | Y.YY | Y.YY | ||
Crucible Size | Dia.(mm) | Ø530 | Ø530 | Ø615 | Ø615 | Ø620 | Ø785 | |
Height(mm) | 400 | 490 | 630 | 700 | 800 | 750 | ||
Empty Furnace Temperature Rising Time(h) | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤3 | ≤3 | ||
Empty Furnace Power Consumption(kw) | ≤7 | ≤9 | ≤12 | ≤14 | ≤16 | ≤18 | ||
Overall Size | Dia(mm) | Ø1280 | Ø1280 | Ø1300 | Ø1360 | Ø1365 | Ø1430 | |
Height(mm) | 800 | 900 | 1000 | 1100 | 1200 | 1150 | ||
Melting Capacity(kg) | 100 | 150 | 250 | 300 | 350 | 500 | ||
Weight(kg) | 1300 | 1400 | 1500 | 1600 | 1800 | 2200 | ||
Note: 300kg and 500kg aluminum melting furnace melting time is about 3.5 hours! We can design the furnace according your special requirement.
