CE certificate 1400 degree box type metals tool annealing muffle furnace for laboratory research price

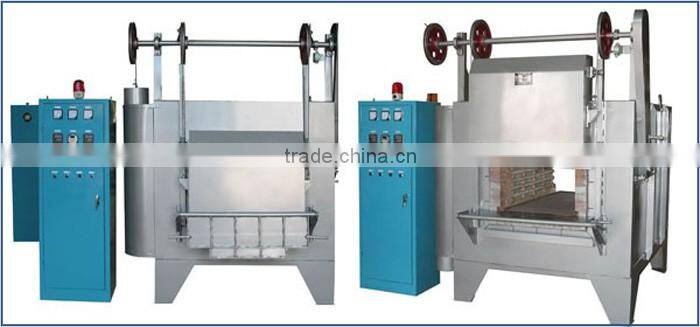

Overview of box furnace
This series of electric furnaces is intermittent operation furnaces which can be used in normalizing, annealing, quenching, tempering, hardening and tempering other heat treatments of carbon steel, alloy steel, high-speed steel and other metal parts. Organic liquid can be dripped into cracking atmosphere of the furnace to realize little-oxidizing heating.
Characteristics of box furnace :
1.Adopt mixed furnace lining of ultra-light refractory bricks (0.6/cubic meter) and ceramic fiber, greatly shortening starting heating time and extraordinarily saving energy up to 20%-30%.
2. Specially-designed furnace door and roller sealing, and built-in heating wire ensure excellent furnace door sealing and uniform furnace temperature.
3. Double-thermocouple control: one thermocouple is for testing furnace temperature, and the other one is for over-heat protection.
4. The furnace is equipped with interlock protection device, which can prevent Failure and accident due to misoperation.
5. Adopt intelligent digital temperature-control system, which feature clear reading, conveniently adjusted, high temperature control precision, easy structure, safe and reliable.
| Name | Model | Rated Power (kw) | Rated Voltage (V) | Rated Temperature (centigrade) | Phases |
Hearth Size L*W*H (mm) |
Remarks |
|
Laboratory chamber-type furnace |
SX2-2.5-10 | 2.5 | 220 | 1000 | 1 | 220*120*80 |
For quenching, anealing, tempering and other heat treatments of chemical analysis and research of R&D institutions and industrial and mining enterprises, etc. |
| SX2-3-10 | 3 | 220 | 1000 | 1 | 275*150*100 | ||
| SX2-4-10 | 4 | 220 | 1000 | 1 | 300*200*120 | ||
| SX-2-8-10 | 8 | 380 | 1000 | 3 | 400*250*160 | ||
| SX2-12-10 | 12 | 380 | 1000 | 3 | 500*300*200 | ||
| SX2-2.5-12 | 2.5 | 220 | 1200 | 1 | 200*120*80 | ||
| SX2-5-12 | 5 | 220 | 1200 | 1 | 300*200*120 | ||
| SX2-10-12 | 10 | 380 | 1200 | 3 | 400*250*160 | ||
| SX2-12-12 | 12 | 380 | 1200 | 3 | 500*300*200 | ||
| SX2-4-13 | 4 | 220 | 1300 | 1 | 200*120*80 | ||
| SX2-6-13 | 6 | 380 | 1300 | 1 | 275*150*100 | ||
| SX2-8-13 | 8 | 380 | 1300 | 3 | 300*150*120 | ||
| SX2-10-13 | 10 | 380 | 1300 | 3 | 400*200*160 | ||
| SX2-12-13 | 12 | 380 | 1300 | 3 | 500*200*180 |
Foshan RongDongsheng Furnace Industry Co.,Ltd. was founded in 1997 in Foshan , Guang dong Province of China , Covering more than 10000 M2 and very closed to Guangzhou city
Our company has passed ISO9001 international management system certification and European CE certificate.
With many years experiences in R&D and manufacturing, wide learning and absorbing from others, continuous summarization and innovation, as well as advanced manufacturing equipments and first-class technicians, we set up our branch company at Shun de City of Guan dong province in 1999.
1.Why we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
3.Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge . we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
