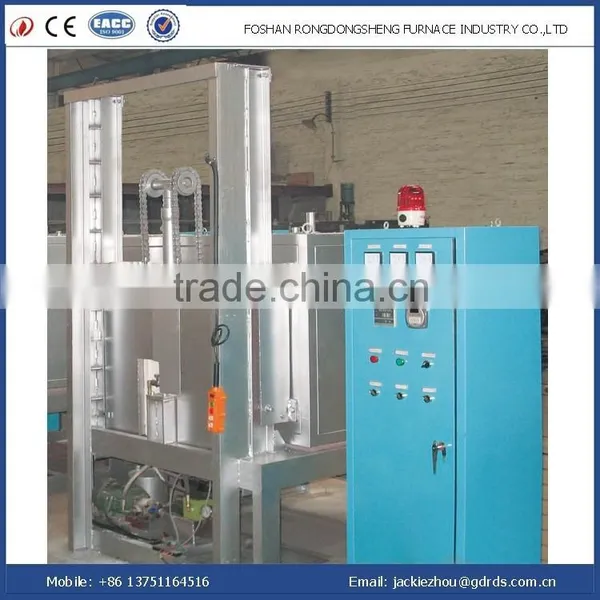

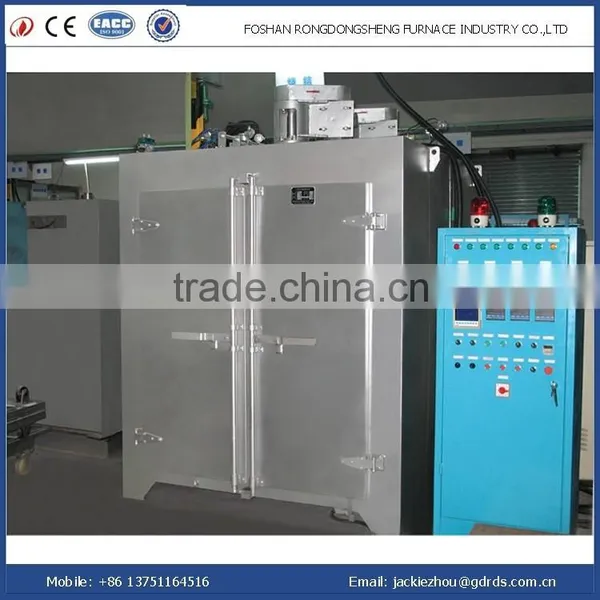

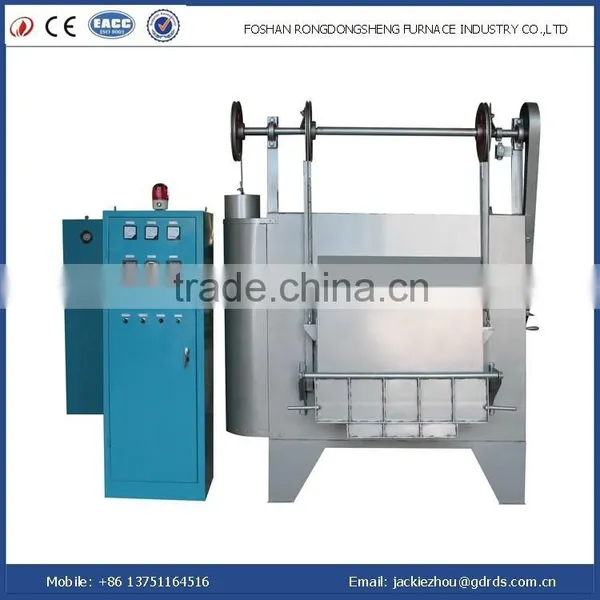

box type metal parts furnace
- 5 Set / Sets per Month
- Foshan/Guangzhou
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Resistance Furnace | Usage: | Other |
Place of Origin: | Guangdong, China | Brand Name: | Rongdongsheng | Model Number: | RX3-75-9 |
Voltage: | 380V | Power(W): | 75kw | Dimension(L*W*H): | 1800*900*550mm |
Weight: | / | Certification: | ISO | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.Overview of box type furnace

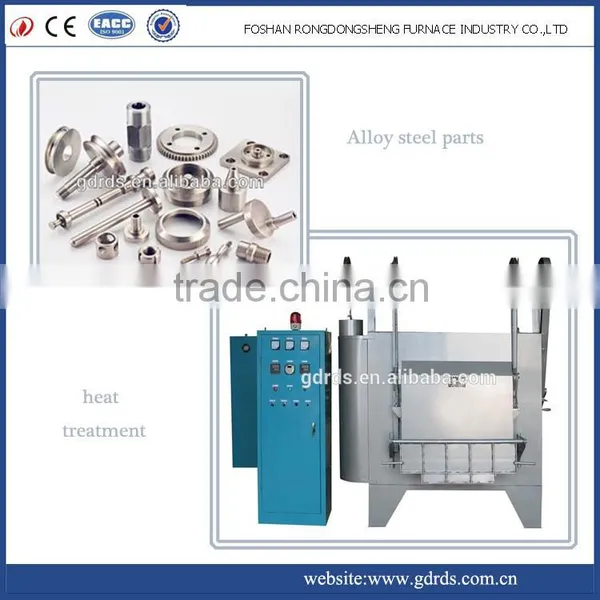

This series of electric furnaces is intermittent operation furnaces which can be used in normalizing, annealing,quenching, tempering, hardening ,hardening and tempering and other heat treatments of carbon steel, alloy steel, high-speed steel and other metal parts. Organic liquid can be dripped into cracking atmosphere of the furnace to realize little-oxidizing heating.
2.Characteristics of box type furnace :
1)Adopt mixed furnace lining of ultra-light refractory bricks (0.6/cubic meter) and ceramic fiber, greatly shortening starting heating time and extraordinarily saving energy up to 20%-30%.
2)Specially-designed furnace door and roller sealing, and built-in heating wire ensure excellent furnace door sealing and uniform furnace temperature.
3)Double-thermocouple control: one thermocouple is for testing furnace temperature, and the other one is for over-heat protection.
4)The furnace is equipped with interlock protection device, which can prevent Failure and accident due to misoperation.
5)Adopt intelligent digital temperature-control system, which feature clear reading, conveniently adjusted, high temperature control precision, easy structure, safe and reliable.
Name | Model | Rated Power (kw) | Rated Voltage (V) | Rated Temperature (centigrade) | Phases | Hearth Size |
Box-type Resistance Furnace | RX3-15-9 | 15 | 380 | 950 | 3 | 650*300*250 |
RX3-30-9 | 30 | 380 | 950 | 3 | 950*450*350 | |
RX3-45-9 | 45 | 380 | 950 | 3 | 1200*600*400 | |
RX3-60-9 | 60 | 380 | 950 | 3 | 1500*750*450 | |
RX3-75-9 | 75 | 380 | 950 | 3 | 1800*900*550 | |
RX3-20-12 | 20 | 380 | 1200 | 3 | 650*300*250 | |
RX3-45-12 | 45 | 380 | 1200 | 3 | 950*450*350 | |
RX3-65-12 | 65 | 380 | 1200 | 3 | 1200*600*400 | |
RX3-90-12 | 90 | 380 | 1200 | 3 | 1500*750*450 | |
RX3-115-12 | 115 | 380 | 1200 | 3 | 1800*900*550 | |
RX3-14-13 | 14 | 380 | 1350 | 3 | 520*220*220 | |
RX3-25-13 | 25 | 380 | 1350 | 3 | 600*280*300 | |
RX3-37-13 | 37 | 380 | 1350 | 3 | 810*550*370 |
1.Why we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
3.Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge .we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
