Specifications
*Air plasma welding machine;*Three phases,one wheel,fan cooled,heavy duty cycle;
*Providing plasma cutting arc by adoption of special stray transformer under theory of high speed,high temperature and high energy air plasma arc heating and melting .
*Adotion of intergral circuit to draw arc with high voltage,stable in performance and excellent in drawing arc;
*Efficient and economic when using low cost air as cutting source;
*Narrow welding gap,smooth cutting edge,little deform and high efficiency in material use;
*Suitable for cutting carbon steel, stainless steel,alloy steel, copper .alu.ect

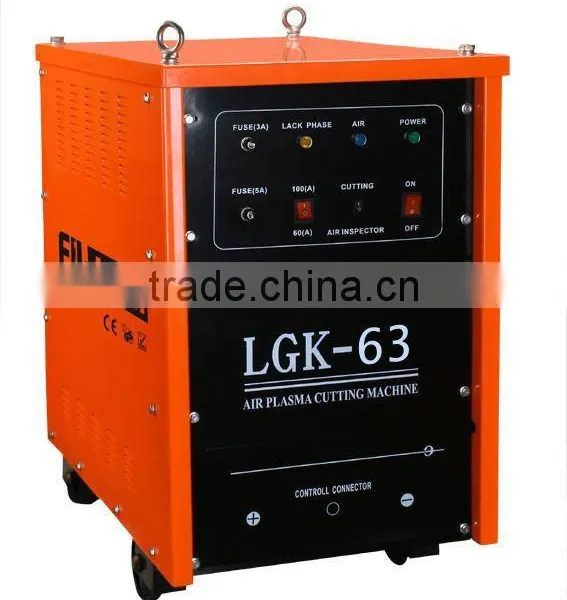

1.Model No: LGK-63
2.Rated input voltage: three phase380v/50Hz
3.No-load voltage: 260v
4.Current range: 63Amp
5.Rated duty: 60%
6.Input capacity: 17kwa
7.Arc strike type:touch
8.Weight: 103kgs
9.Air pressure:0.2-0.4mpa
10.Max Welding thickness:18mm
11.Measurement: 72.5cm*45cm*66cm
Other relevent models: LGK-40,LGK-100,LGK-160
