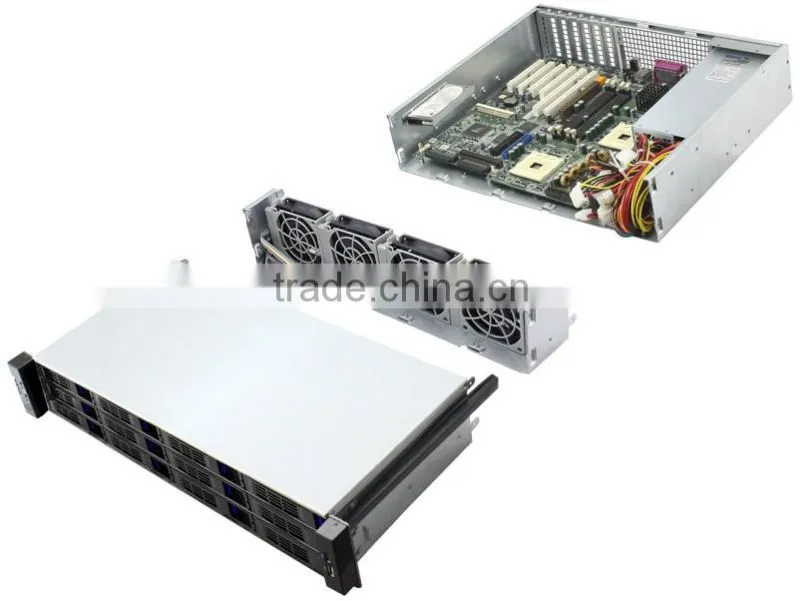

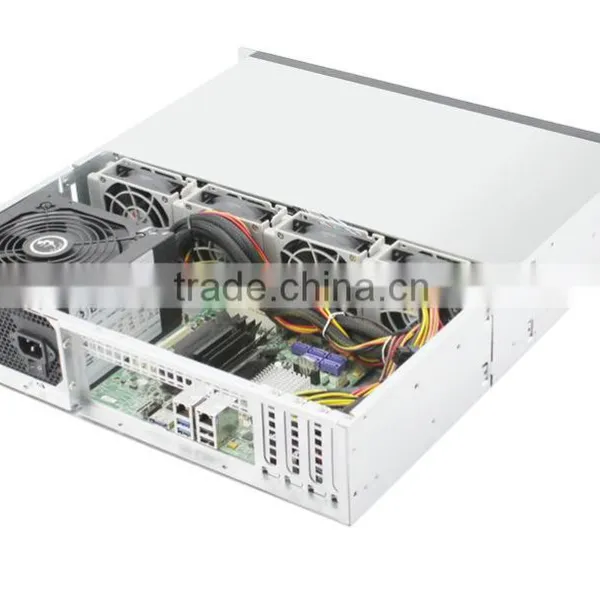

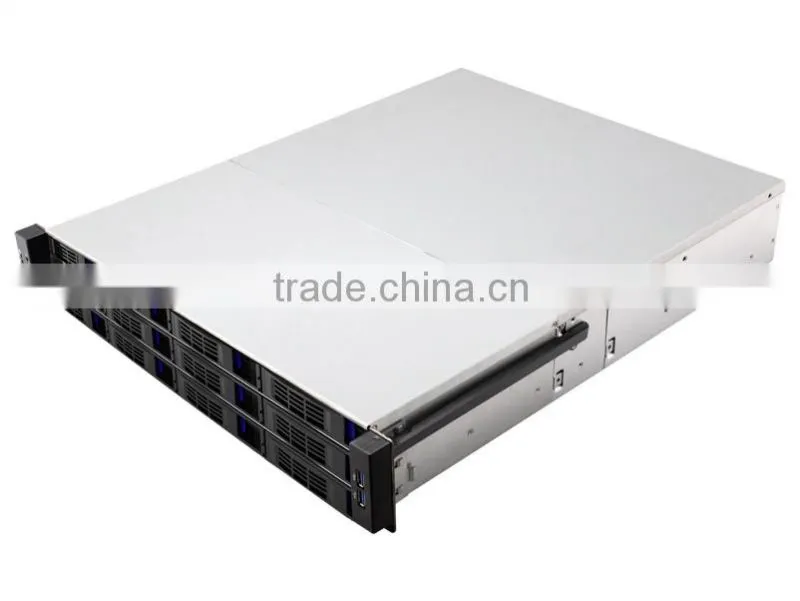

EDNSE 2U 8bays Storage Server Case, Hotswap Chassis, Hotswap Fanwall

Name: EDNSE 2U 8bays Storage Server Case, Hotswap Chassis, Hotswap Fanwall
Brand: EDNSE
SKU: 134647191
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Server

Type:

Rack

DENESE (Dongguan) Computer Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Server

Type Rack

Form Factor ATX

Material Other, SGCC

Style With Fan

Front Ports USB

Brand Name EDNSE

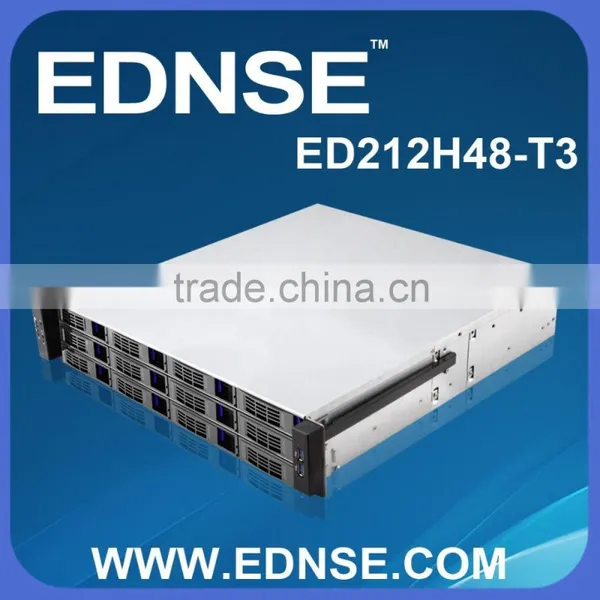

Model Number ED212H48-T3

Place of Origin Guangdong, China

Features & Benefits 1.2U480mm depth, ideal for IDC/High Perfromance Computing Server 2.Support Extended (10.5"x9.6") M/B 3.Support Single ATX power 4.Optional front VGA port for on-site monitoring 5.Modular design in HDD cage/front fan/backplane for easy maintenance 6.Fully utilized space to support 12 x 3.5" HDDs Specification
Order Code		Generality
ED212H48		Metal Material	SGCC
Description		Metal Thickness	1.2 mm
2U480mm depth,Hot-swap 12x3.5"HDD		Metal Material Type	ABS
		Expansion Slots
M/B Form Factor		FF	7
(10.5"x9.6")		System Cooling(Shockproof)
Processor		Middle	4 x 8025 mm PWN
DP Xeon(Intel),DP Opteron(AMD)		Rear
Core(Intel)		Rear Window
Support Backplane		Standard
Sata II/Sas or minisas		Front Panel
Chassis Dimension		Front Control	Power On/Off
D x W x H (mm)	480x430x88		System Reset
D x W x H (inch)	18.9''x16.9''x3.5''		Alarm Reset
Drive Bay		Indicator	Power LED (x1)
3.5"HDD	12		HDD Activity LED (x1)
CD-ROM			LAN Activity LED (x2)
			Fan / Power Failure LED
Power Supply		Ports	USB2.0 x 2
Single ATX			VGA ( option)
		Shipping Information*
		Net Weight (Chassis Only)	7.7 Kg
		Gross Weight (w/Packing)	9.2 Kg
		Cubit Feet	0.075CBM
		Container Information	20' : 373pcs
			40' : 826pcs
			40'H : 933pcs
