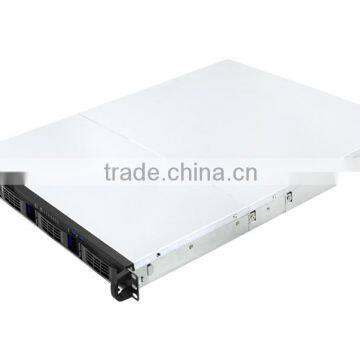

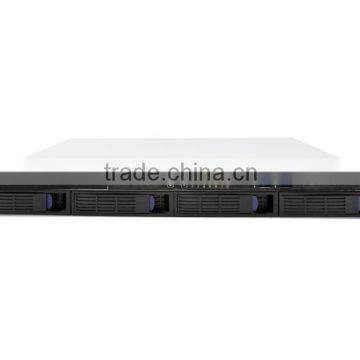

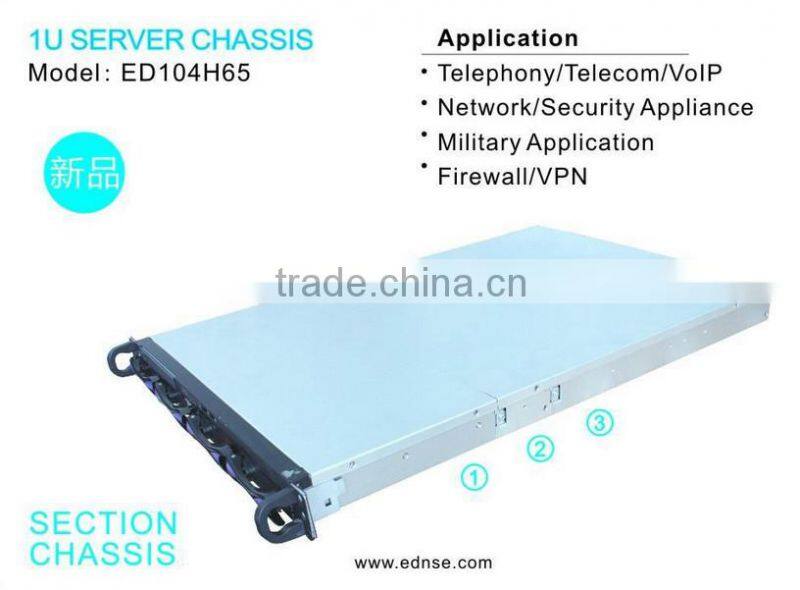

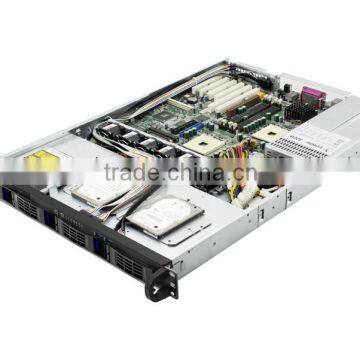

ED104H65-T3 OED / ODM standard 19inch rack mount server chassis: :
Product Description:
Order code : ED104H65

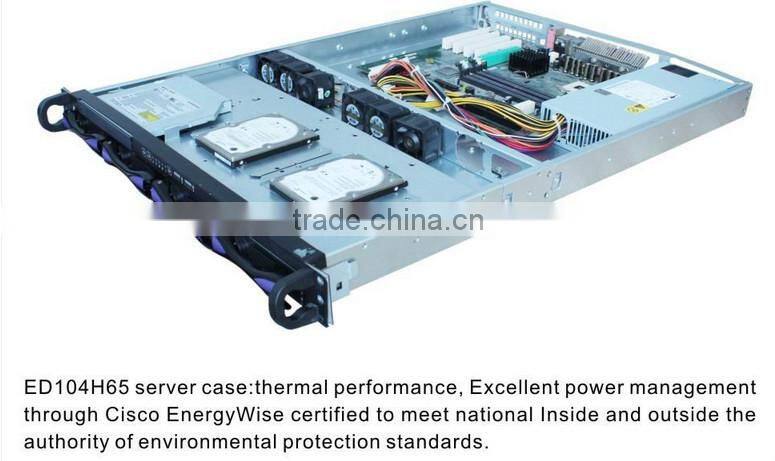

Description: 1U650mm , 4x3.5"HDD, depth,Hot-swap 2x2.5"HDD,1xSmal l -DVD
Generality:
Metal Material- SGCC
Metal Thickness- 1.2mm
Metal Material Type- ABS

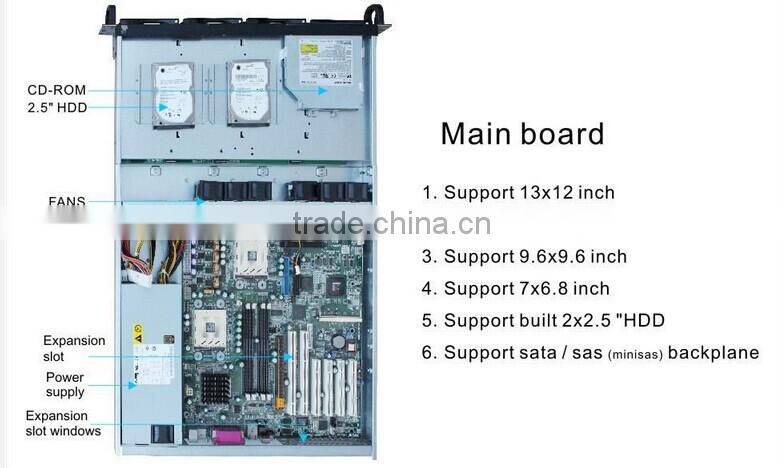

M/B Form Factor: (12"x13"),(11"x9.6"),(9.6"x9.6"),(7"x6.8")
Processor: DP Xeon(Intel),DP Opteron(AMD), Core(Intel)
Support Backplane: Sata 2/Sas or mini sas
Chassis Dimension: D650XW430XH88(mm),D25.6"XW16.9"XH3.5"(inch)

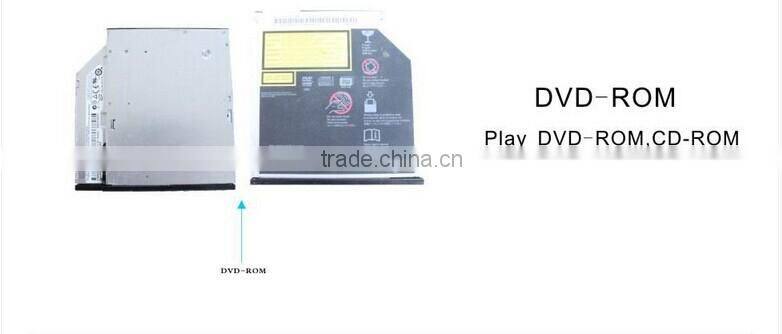

DriveBay: 3.5"HDD*4, 2.5"HDD*2, CD- ROM- 1 x Small-DVD

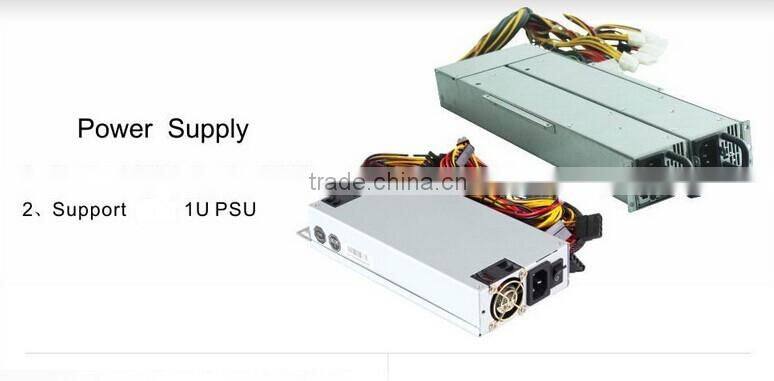

Power Supply: Standard 2U power/ Redundant 1+1 power
Expansion Slots:2*FF
System Cooling (Shockproof) : Middle - 6 x 4028 mm PWM

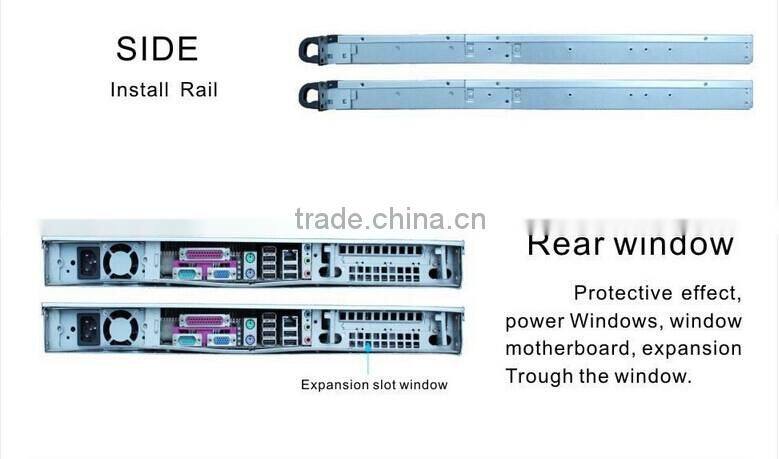

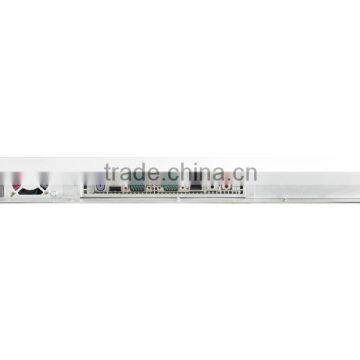

Rear Window : Standard

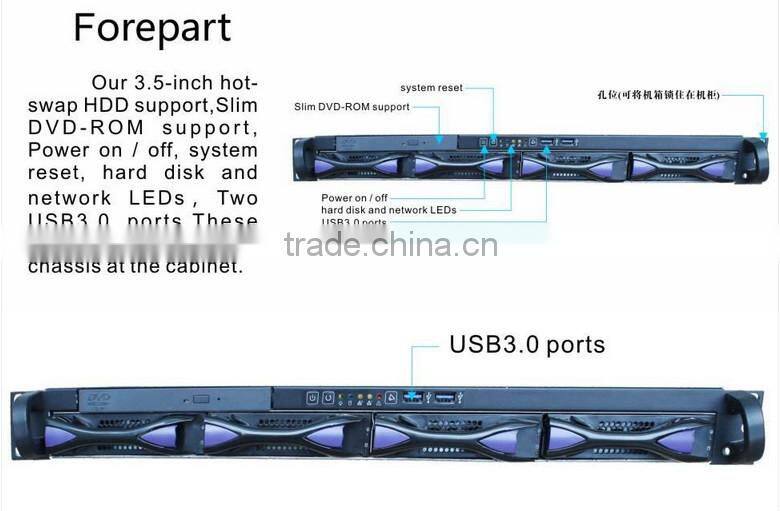

Front Control :
Front Control -Power on/of, System Resetf, Alarm Reset
Indicator- Power LED(x1)HDD,Activity LED(x1), LAN Activity LED(x4)
Ports-USB3.0(X2),VGA(option)
New function:
| Part | Qty | Description |
| NIC LED | 4 | LAN NIC LED |
| USB3.0 | 2 | USB 3.0 |
| 2.5"HDD | 2 | System HDD |
| PWM Fans | 6 | PWM Fans |
Order informantion:
| Order code | Dimensions | MB | PSU |
| ED104H55 | 550X430X88(mm) | (12 X13 ), (12X10.5"), (12"X9. 6") |
Standard 1U power/ Redundant 1 +1 |
| ED104H48 | 480X430X88(mm) | (10. 5"X9. 6") | Mini ATX/ 1U Standard PSU |
Replacement parts:
| Part Name | Qty | Description | |

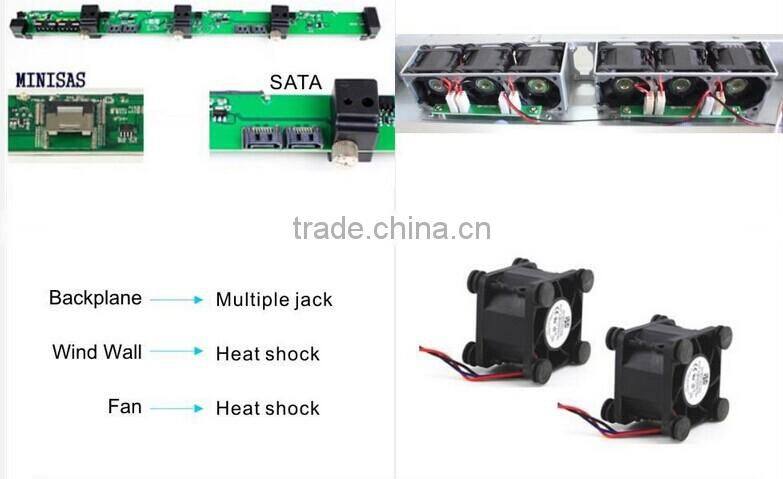

| Fan | FAN-4028 | 6 | 40X28mm easy-swap fan |
| Backpl ane | 4 Port-Mi ni S AS | 1 | 6GB&12GB MINI SAS backpl ane |
| 4 SAS/SATAPorts | 1 | 6GB&12GB SAS/SATAbackpl ane | |
| Rear Window | Rear-S1U | 1 | To standard 1U ATX power |
| Rear-R1U | 1 | To 1U redundant power |
Optional items:
| Part Name | Description |
| Power supply | 2U-460W-A,2U Redundant 1+1 550W-A, 2U Redundant 1+1 850W-A |

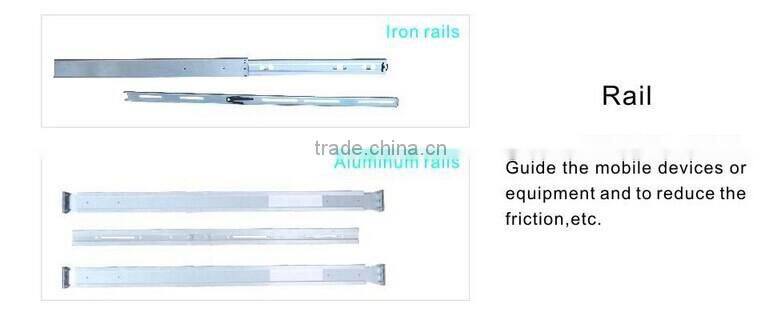

| Sliding Rails | Steel Rails 20",24",26" |
| HDD Bracket | 3.5"to2*2.5" |
| Cable | 8087(minissas)-4SATA,8088(HD-minisas), 8088(HD minisas) to 8087(minisas) |
| Expansion Card | mini sas A04, M1006 |
| Raid Card | LSI MegaRAID Feature, Value Line,Entry Line—6Gb/sSATA+SAS |
| Riser Card | PCI-16X with cable,PCI-E |
| Cabinet Bracket | Bodychassis rear Bracket(Fixer) |

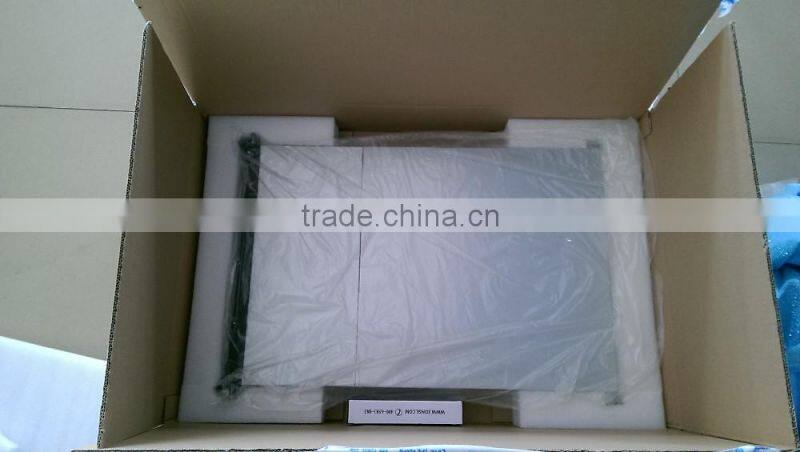

Package contain:
| Part Catagary | Qty | Description |
| Chassis | 1 | 1U chassis base wi th Fans |
| Backplane | 3 | 4 ports Mini-SAS backplane |

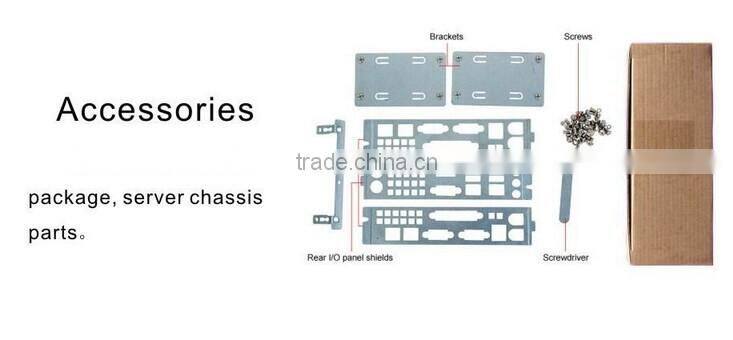

| Parts Pack | 1 | Screw Pack,Bracket |
| Fan | 6 | 40X28mm easy-swap fan |
| Cabl es | 1 | Display & swith cable |
Shipping Information:
Net Weight(Chassis Only)- 7.5kg
Gross Weight- 9kg
Cubit Feet- 0.085CMB
Container Information- 20' :329pcs, 40' :729pcs, 40' H:823pcs
DENESE (Dongguan) Computer Co., Limited was founded in 2005. Now we are located in the international electronics manufacturing city Dongguan, which has advanced information technology and facilitated transportation.
EDNSE is the strategy brand in DENESE Group.
As a manufacturer which specializes in server system equipment, we input series of system equipment to the field of servers for 8 years. Especially, the rack-mount chassis have reached the most advanced level in China.
Our company mainly engages in rack-mount chassis, e.g. 1U/2U/3U/4U/6U blade architectures, and ITX and tower chassis. We also operate server related products such as RAID cards, expansion cards, network storages, KVMs, cooling fans, power suppliers, riser cards, HDD support, HDD brackets, CPU coolers and so on. In addition, our company provides hot-swappable and non-hot-swappable solutions. We design, customize and produce products based on the needs of clients. ODM/OEM orders are welcome.
Our products are exported to more than 40 regions in the world, such as Southeast Asia, Europe, North America, the Middle East,
Our goal is to create a new future by science and technology. Innovation and renovation are our soul. We strive to create more human convenient and fast intelligent products. We focus on providing the best customer experience. Our products will set up a strong data information center for you. You will have a better future with our services.
