New design high power led downlight cob

Specifications

led downlight cob
1.Super Bright High Power LED
2.Bridgelux, Epistar chip
3.CE&RoHS certificated
4.3 year

led downlight cob



Specification



Model	IF(mA)	VF(V)	min(LM)	max(LM)	LM/W	CCT(K)	Po(W)	Ra	IPF(mA)
HGCT**WW*3-C8X3	240	34	800	1000	120	3000	8	81	900
	360	35	1200	1400	120	3000	12	81	900
	450	35	1500	1800	110	3000	16	81	900
	720	37	2000	2500	90	3000	27	81	900
HGCT**W*6-C7X3	240	34	1000	1200	130	5000	8	68	900
	360	35	1500	1800	120	5000	12	68	900
	450	36	1800	2200	120	5000	16	68	900
	720	38	2800	3500	100	5000	27	68	900
HGCT*W*6-C8X3	240	34	800	1000	120	5000	8	81	900
	360	35	1200	1500	120	5000	12	81	900
	450	35	1500	1800	110	5000	16	81	900
	720	7	2200	2600	90	5000	27	81	900



Adventages



Products Feature :Using imported Qulity of chip, Phosphor, glue, etc.Spot uniformity, consistency of color, single BIN no color; Single chip Leakage current<5uA; Light efficiency and stability: 1000 hours light decay,3000hours of light decay<3%; Lifespan>50000 hours





Packagingprocess:Independent innovation process, the product is suitable for SMT reflow process. Application: The products main used in indoor lighting, outdoor decorative lighting, commercial lighting, and other types of lighting. such as :LED Downlight ,LED Track Light and Bean pot lamp.

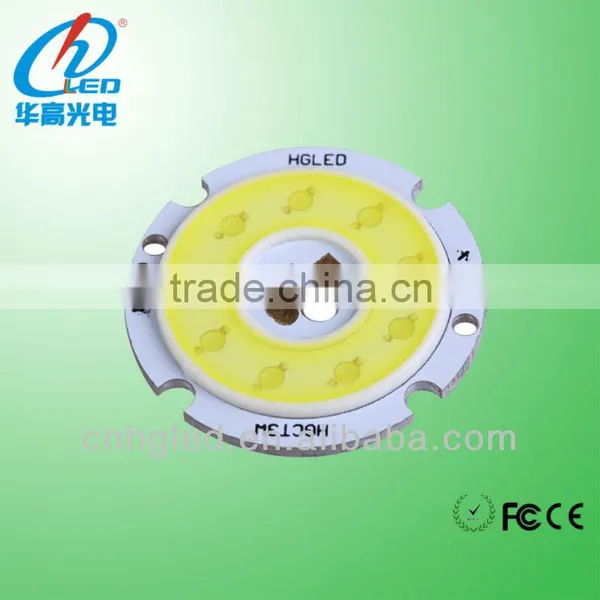

Product presention





     led downlight cob



Our factory



We are sure your any requirements will get prompt attention!
