PET Laminated/epoxy Resin 5.5V Solar Panel

Name: PET Laminated/epoxy Resin 5.5V Solar Panel
Brand: SUNSUN
Availability: InStock

FOB Price

US$ 1 - 2 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SUNSUN
Model Number	SS	Material	Monocrystalline Silicon
Size	65x65	Number of Cells	11
Max. Power	0.275w

Product Description

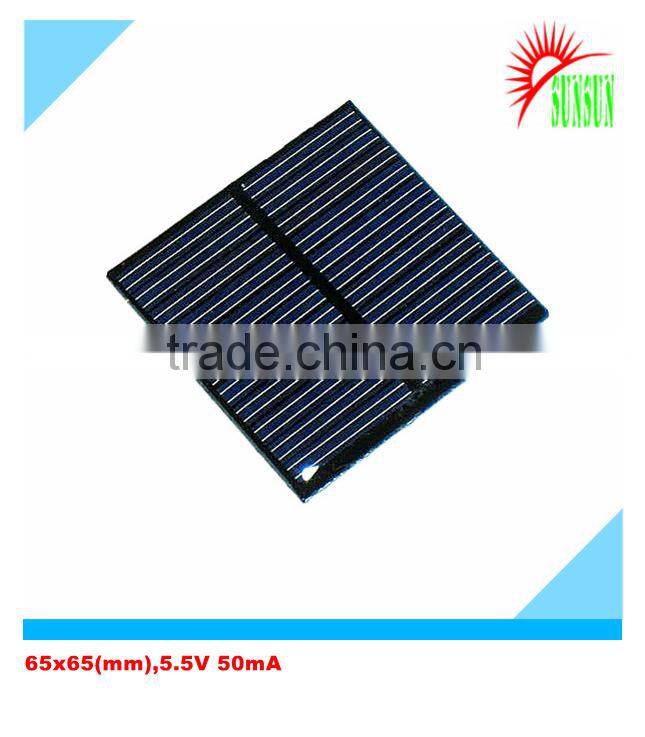

PET laminated/epoxy resin 5.5V solar panel

Product Description

High module conversion efficiency

(up to 16%), through superior cell technology and

leading manufacturing capability

Positive tolerance

Guaranteed tolerance from ±3% ensures

power output reliability

Excellent weak light performance

Excellent performance under low light environments

(mornings, evenings, and cloudy days)

Withstand high wind and snow loads

Entire module certified to withstand high wind loads

(2400 Pascal) and snow loads (5400 Pascal) *

We can customize mini solar panel voltage,output current,dimension base on customers' requirement.

Model	SS-M0.275WP
Optimum Operating Voltage (Vmp)	5.50 V
Optimum Operating Current (Imp)	50 mA
Open - Circuit Voltage (Voc)	6.60 V
Short - Circuit Current (Isc)	51 mA
Maximum Power at STC (Pmax)	0.275 W
Cell Efficiency	17.5%
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600 V DC (UL)
Maximum Series Fuse Rating	20 A
Power Tolerance	±3 %

Solar Cell	Mono-crystalline
No. of Cells	11
Dimensions	65x65x3(mm)
Weight	0.01 kgs
Front Glass	Epoxy resin
Frame	No frame
Junction Box	No
Output Cables	TUV (2Pfg1169:2007), UL 4703, UL 44
Output Cables	Optional
Connectors	Optional

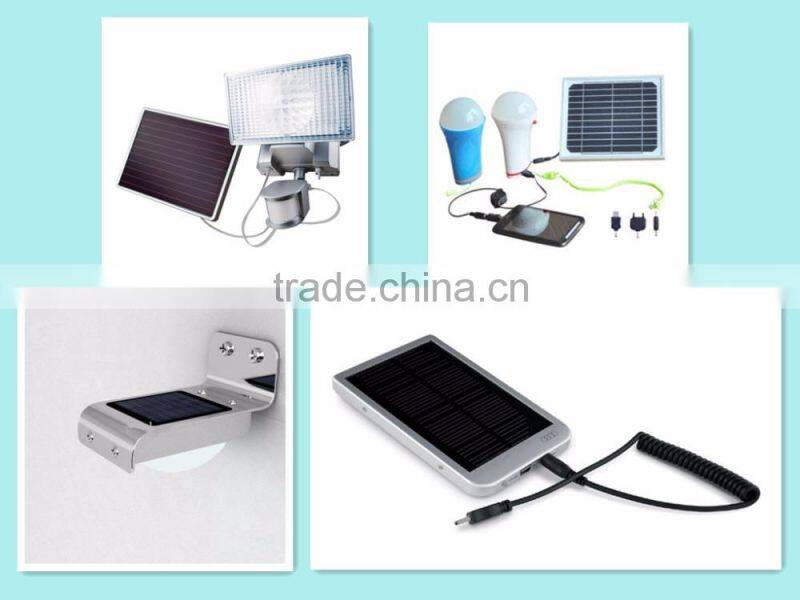

Applications

Solar lights;

Solar Chargers for Mobile Phones;

Small solar systems.

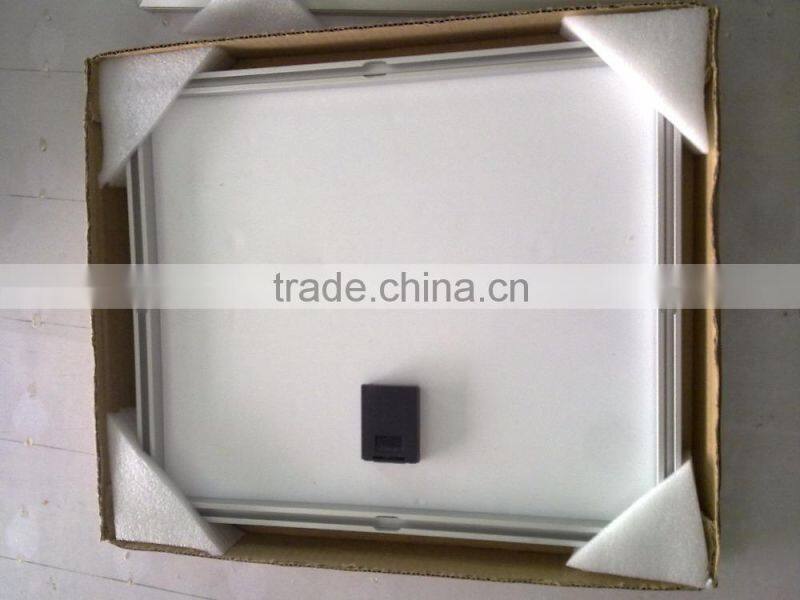

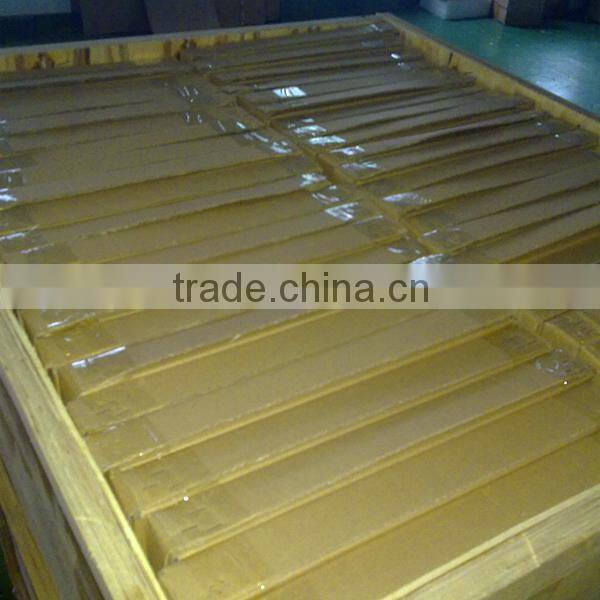

packing and shipping

Paper box;Wooden carton;Pallet

Our Services

OEM Available;

System configuration service;

Technical support.
