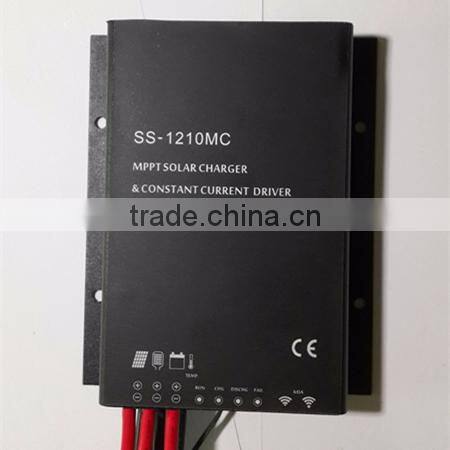

12/24V 10A MPPT Solar Charge Controller

Model

Measurement

MCC10/MCC10_Li

MCC15/MCC15_Li

BATTERY

DATA

Battery voltage

12/24V auto adapt

-

Charge current

10

15

A

Charging voltage range

8~30

V

MPPT charging voltage @25℃

≤14.4(12V), ≤28.8(24V)

V

Constant charge voltage@25℃

14.4(12V), 28.8(24V)

V

Constant float voltage@25℃

13.8(12V), 27.6(24V)

V

Equalization@25℃(Optional)

14.8(12V), 29.6(24V)

V

Discharge stop @25℃

11(12V), 22(24V)

V

Discharge reconnect @25℃

12.5(12V), 25(24V)

V

Temperature compensation

-4mV/℃/2V

-

PV

DATA

PV Open voltage

≤60

V

PV voltage of close light

≥6(12V),≥12(24V)

V

PV voltage of open light

≤5(12V),≤10(24V)

V

MPPT tracing range

14≤Vp≤60(12V),28≤Vp≤60(24V)

V

LED

DATA

Drive LED current

0~4000

mA

Drive LED voltage range

16~60V(12V), 32V~60V(24V)

V

Drive LED Max.power

80(12V),160(24V)

W

Driving current accuracy

≤3%

-

Timer stage

3

-

LED light adjustable range

0~100

%

SYSTEM

DATA

MPPT Efficiency

≥99.9%

-

Charging conversion efficiency

98%

-

Max. Efficiency drive

96.8%

-

Sleep power consume

≤1(12V), ≤2(24V)

mA

Communication

Infrared wireless

-

History data record

1

year

Storage/working Temperature

-35~60

℃

Storage/working Humidity

0~100%

RH

Working elevation

3000

m

Protection level

IP68(1.5m,72h)

-

Certification

CE,ROSH

-

PHISICAL

DATA

Weight

0.26~0.27

0.34~0.35

KG

Size

100x82x20

130x82x20

mm
