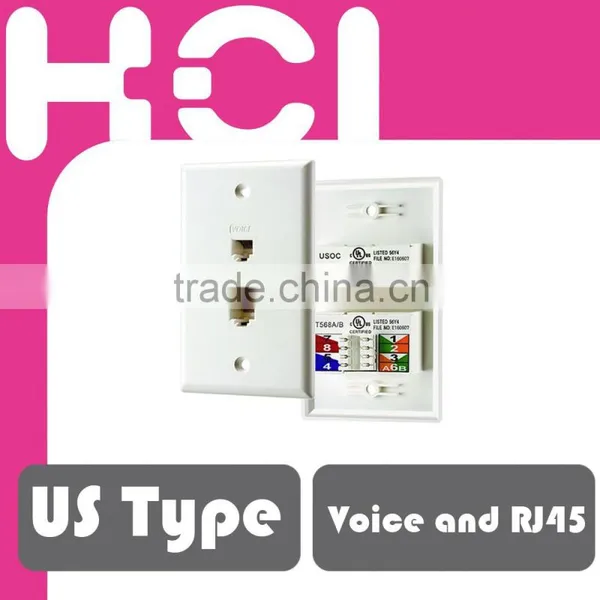

US Type 2 Port Voice and RJ45 Cat5e Data Faceplate
625B4803
§ PRODUCT FACT

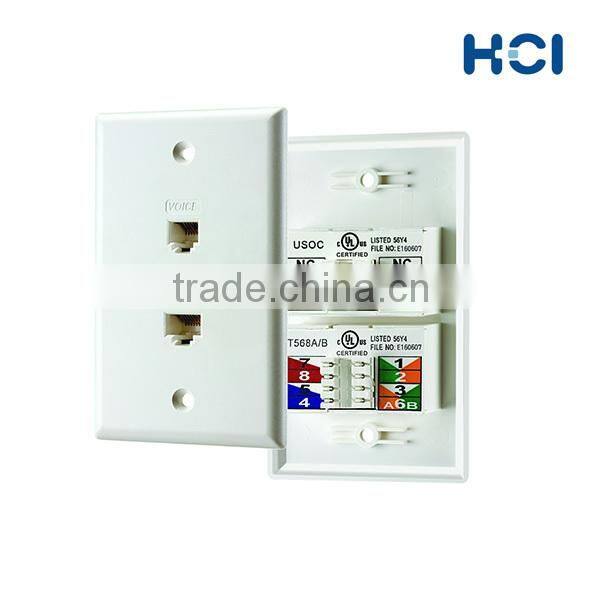

2-Port integrated faceplate for Voice & Cat5e Data is the perfect solution to organize home and office cables. RJ45 8p8C Cat5e jack and RJ45 6 conductor jack are built into the faceplate, which helps you install easily and provides a professional finished look.
§ PHYSICAL CHARACTERISTICS
Insertion Life: 750 mating cycles with FCC compliant RJ45 plug
Contact Force: 100 grams with FCC compliant RJ45 plug
Plug Retention Force: 11 lbf min.
IDC Dutability: 200 termination cycles
Contact Compaticility: Accommodates 22~24 AWG Solid
Operating Temperature Range: -10°c~60°c
Storage Temperature Range: -40°c~68°c
Humidity: 10%~90% RH
§ ELECTRICAL
Insulation Resistance: 500MΩ
Dielectric Withstanding Voltage: 1000 V
DC Current Rating: 1.5 Amps
DC Resistance: 0.1Ω
Contact Resistance: 20 mΩ
§ ORDERING INFORMATION

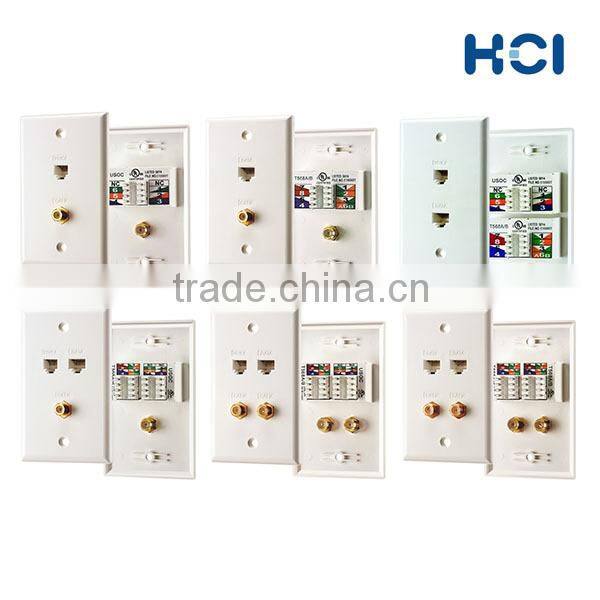

| PART NO. | DESCRIPTION |
| 625B4801 | 2-Port Integrated Faceplate For TV & Voice |
| 625B4802 | 2-Port Integrated Faceplate For TV & Cat5e Data |
| 625B4803 | 2-Port Integrated Faceplate For Voice & Cat5e Data |
| 625B4804 | 3-Port Integrated Faceplate For TV, Voice & Cat5e Data |
| 625B4805 | 4-Port Integrated Faceplate For TV*2, Voice & Cat5e Data |
| 625B4806 | 4-Port Integrated Faceplate For TV*2, Cat5e Data*2 |
TWISTED-PAIR MULTIMEDIA OPTICAL FIBER OEM/ODM
OEM & ODM: Why HCI?
One of Taiwan’s leading supplier oftelecommunications structured cabling system.
Provide total solution, from design to production with fast turn around time and the best price.
Founded in 1975 and over 25 years experience in OEM/ODM projects.
Your reliable global partner!
